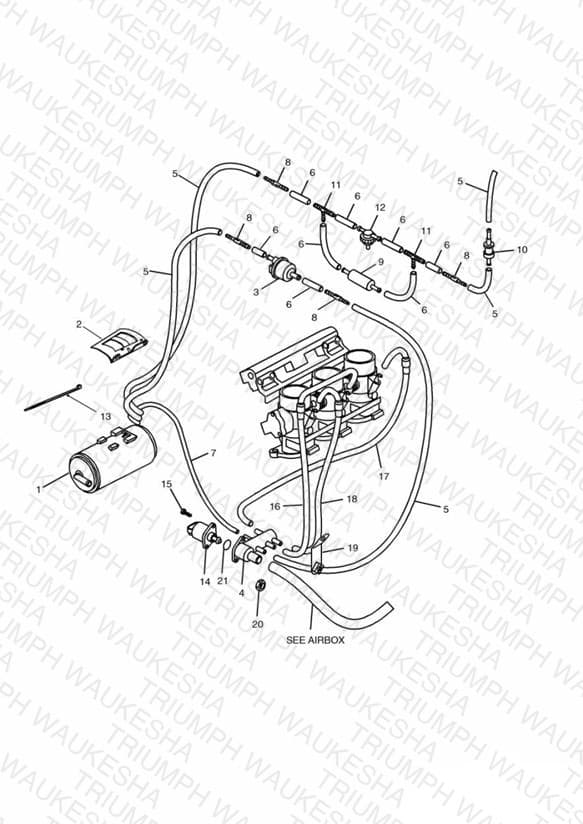

Evaporative Loss Equipment » ENG NO 71843
← Evaporative Loss Equipment ENG NO 92746 »Evaporative Loss Equipment ENG NO 71844 » » ENG NO 92745 →
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2400160 Carbon Canister | Carbon Canister US Cal ONLY | 1 | $55.04 | Obsolete | View Details |
| 2 | T2400164 Canister bracket | Canister bracket US Cal ONLY | 1 | $24.45 | Obsolete | View Details |
| 3 | T1245822 Spares Kit, Purge Valve | Spares Kit, Purge Valve US Cal ONLY - Kit contains purge valve & flylead | 1 | $55.98 | Out of Stock | Notify Me |
| 4 | T1240877 Housing | Housing Idle speed 3 Cyl US Cal ONLY | 1 | $4.01 | Obsolete | View Details |
| 4 | T1240876 Housing | Housing Idle speed 3 Cyl | 1 | $9.40 | Obsolete | View Details |
| 5 | T4000751 Hose, Twin Wall, NBR/CSM 5 x 8 | Hose, Twin Wall, NBR/CSM 5 x 8 5mm dia x 8mm Supplied as reel Cut to length US Cal ONLY | — | $5.35 | Available to order | 1 |
| 6 | T4000752 Fuel, Evap Pipe, 7 mm ID, 1M | Fuel, Evap Pipe, 7 mm ID, 1M 7.5mm dia x 11.5mm Supplied as reel Cut to length US Cal ONLY | — | $11.91 | Available to order | 1 |
| 7 | T4000750 Hose, Twin Wall, NBR/CSM, 4.2x7 | Hose, Twin Wall, NBR/CSM, 4.2x7 4.2mm dia x 7mm Supplied as reel Cut to length US Cal ONLY | — | $12.61 | Unavailable | View Details |
| 8 | T3620308 Connector, Straight, 6mm | Connector, Straight, 6mm 8mm - 6mm US Cal ONLY | 4 | $3.73 | Available to order | 4 |
| 9 | T3620294 Valve one way | Valve one way US Cal ONLY | 1 | $42.15 | Obsolete | View Details |
| 10 | T2400045 Valve, Roll Over | Valve, Roll Over Rollover US Cal ONLY | 1 | $36.67 | Unavailable | View Details |
| 11 | T3620266 Equal tee | Equal tee US Cal ONLY | 2 | $5.16 | Available to order | 2 |
| 12 | T2400125 Valve pressure control | Valve pressure control US Cal ONLY | 1 | $27.54 | Obsolete | View Details |
| 13 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long US Cal ONLY | 2 | $1.01 | Available to order | 2 |
| 14 | T1240870 Stepper motor | Stepper motor *Part No Longer Available* | 1 | $159.97 | Obsolete | View Details |
| 15 | 3050045-T0301 Screw | Screw M5 x 20mm | 2 | $2.63 | Out of Stock | Notify Me |
| 16 | T1240882 Hose | Hose Centre | 1 | $67.15 | Available to order | 1 |
| 17 | T1240883 Hose | Hose | 1 | $69.97 | Available to order | 1 |
| 18 | T1240881 Hose | Hose | 1 | $65.30 | Available to order | 1 |
| 19 | T1240879 Bracket | Bracket | 1 | $5.06 | Obsolete | View Details |
| 20 | T2700493 Nut & Washer Assy, M5, Slv | Nut & Washer Assy, M5, Slv | 2 | $1.91 | Available to order | 2 |
| 21 | T3600037 O ring | O ring | 1 | $1.61 | Available to order | 1 |
