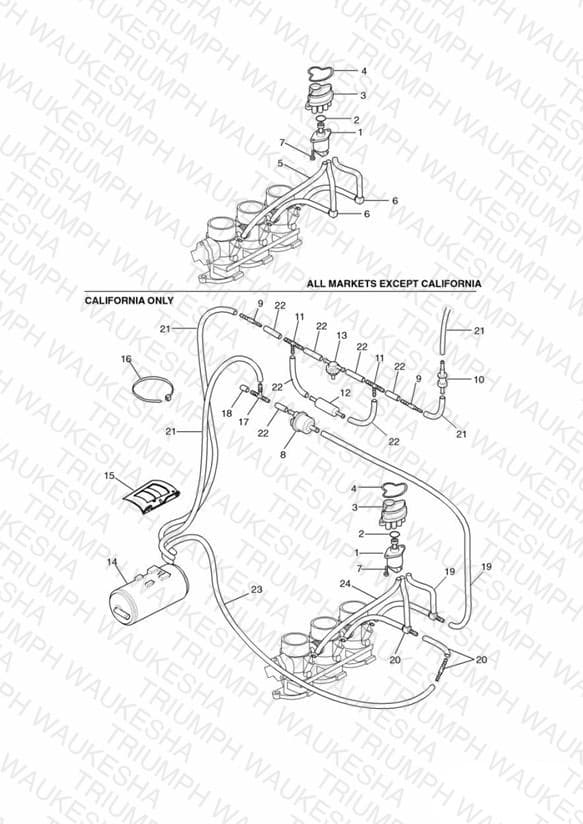

Evaporative Loss Equipment ENG NO 71844 » » ENG NO 92745
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1240888 Stepper motor | Stepper motor ** PART NO LONGER AVAILABLE ** | 1 | $145.81 | Obsolete | View Details |
| 2 | T3600037 O ring | O ring | 1 | $1.51 | Available to order | 1 |
| 3 | T1241064 Housing, Idle Speed Control Valve | Housing, Idle Speed Control Valve PART NO LONGER AVAILABLE | 1 | $48.08 | Obsolete | View Details |
| 4 | T1241063 Grommet, Idle Speed Control Valve | Grommet, Idle Speed Control Valve | 1 | $9.03 | Available to order | 1 |
| 5 | T1242015 Hose kit | Hose kit » ENG NO 74838 (Kit contains 3 hoses) | 1 | $48.49 | Available to order | 1 |
| 5 | T1242502 Tube | Tube ENG NO 74839 » 200mm long | 1 | $24.05 | Available to order | 1 |
| 6 | T1242501 Tube | Tube ENG NO 74839 » 145mm long | 2 | $24.05 | Available to order | 2 |
| 7 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $0.97 | Available to order | 2 |
| 8 | T1245822 Spares Kit, Purge Valve | Spares Kit, Purge Valve Kit contains purge valve & flylead | 1 | $57.03 | Available to order | 1 |
| 9 | T3620308 Connector, Straight, 6mm | Connector, Straight, 6mm | 2 | $3.50 | Available to order | 2 |
| 10 | T2400045 Valve, Roll Over | Valve, Roll Over Rollover | 1 | $33.95 | Unavailable | View Details |
| 11 | T3620266 Equal tee | Equal tee | 2 | $4.85 | Available to order | 2 |
| 12 | T3620294 Valve one way | Valve one way | 1 | $39.03 | Obsolete | View Details |
| 13 | T2400125 Valve pressure control | Valve pressure control | 1 | $25.50 | Obsolete | View Details |
| 14 | T2400160 Carbon Canister | Carbon Canister | 1 | $56.07 | Obsolete | View Details |
| 15 | T2400164 Canister bracket | Canister bracket | 1 | $21.83 | Obsolete | View Details |
| 16 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 2 | $0.95 | Available to order | 2 |
| 17 | T3620276 Unequal tee | Unequal tee | 3 | $2.22 | Available to order | 3 |
| 18 | T3450145 End Tip | End Tip | 1 | $1.21 | Available to order | 1 |
| 19 | T1242016 Hose kit | Hose kit PART NO LONGER AVAILABLE » ENG NO 74838 | 1 | $62.38 | Obsolete | View Details |
| 19 | T1242505 Tube | Tube ENG NO 74839 » | 1 | $40.53 | Obsolete | View Details |
| 21 | T4000751 Hose, Twin Wall, NBR/CSM 5 x 8 | Hose, Twin Wall, NBR/CSM 5 x 8 5mm dia x 8mm Supplied as reel Cut to length | — | $5.02 | Available to order | 1 |
| 22 | T4000752 Fuel, Evap Pipe, 7 mm ID, 1M | Fuel, Evap Pipe, 7 mm ID, 1M 7.5mm dia x 11.5mm Supplied as reel Cut to length | — | $11.48 | Out of Stock | Notify Me |
| 23 | T4000750 Hose, Twin Wall, NBR/CSM, 4.2x7 | Hose, Twin Wall, NBR/CSM, 4.2x7 4.2mm dia x 7mm Supplied as reel Cut to length | — | $12.16 | Unavailable | View Details |
| 24 | T1242506 Hose assembly | Hose assembly ENG NO 74839 » | 1 | $23.87 | Obsolete | View Details |
