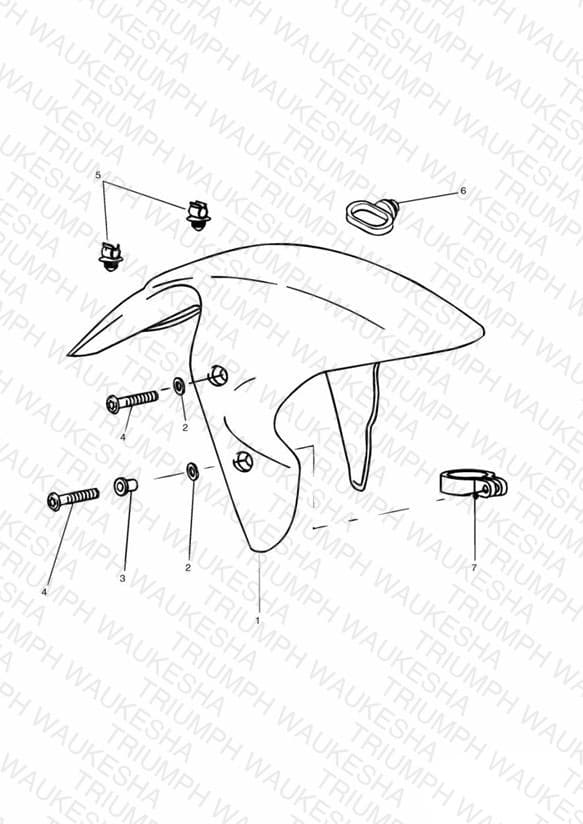

Front Mudguard All Markets Except US,CA,SG
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2302922-PG Front mudguard | Front mudguard Jet Black | 1 | $186.80 | Obsolete | View Details |
| 1 | T2302922-FB Front mudguard | Front mudguard » 53381 Strontium Yellow | 1 | $186.80 | Obsolete | View Details |
| 1 | T2302922-FC Front mudguard | Front mudguard 53382 » Lightning Yellow | 1 | $186.80 | Obsolete | View Details |
| 1 | T2302922-CM Front mudguard | Front mudguard Tornado Red | 1 | $186.80 | Obsolete | View Details |
| 1 | T2302922-MH Front mudguard | Front mudguard Aluminium Silver | 1 | $169.21 | Obsolete | View Details |
| 1 | T2302922-JD Front mudguard | Front mudguard Caspian Blue | 1 | $186.80 | Obsolete | View Details |
| 2 | 3550055-T0301 Washer, Plastic | Washer, Plastic » 60526 | 12 | $0.89 | Available to order | 12 |
| 3 | T3010072 Sleeve | Sleeve » 60526 | 4 | $1.13 | Available to order | 4 |
| 4 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 4 | $1.06 | Available to order | 4 |
| 5 | T3700233 Clip, Brake Hose | Clip, Brake Hose | 2 | $5.88 | Available to order | 2 |
| 6 | 2040036-T0301 Cable Guide | Cable Guide * Part No Longer Available * | 1 | $10.12 | Obsolete | View Details |
| 7 | T2301318 Mounting strap | Mounting strap LH | 2 | $4.36 | Available to order | 2 |
| 7 | T2305693 Mounting Strap | Mounting Strap RH | 2 | $6.83 | Out of Stock | Notify Me |
