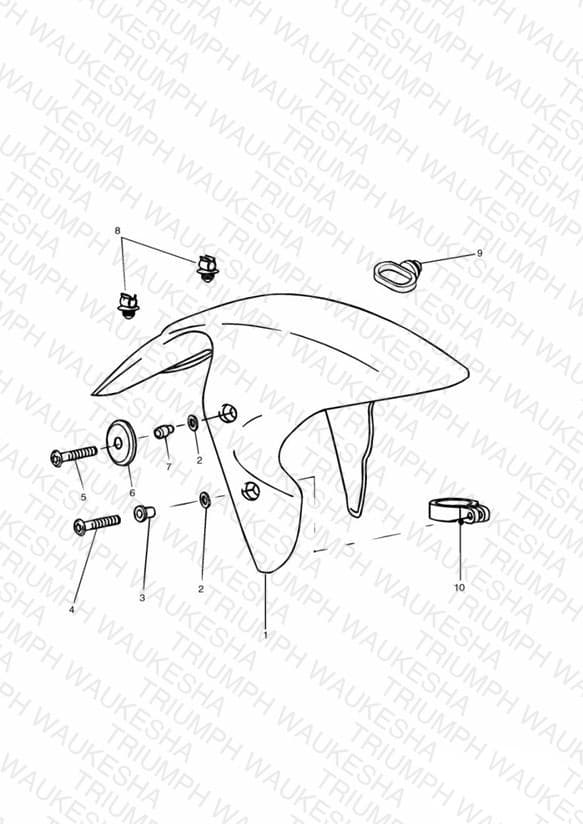

Front Mudguard US,CA,SG Only
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2302928-PG Front Mudguard Kit | Front Mudguard Kit » 60274 Jet Black | 1 | $198.15 | Obsolete | View Details |
| 1 | T2302922-PG Front mudguard | Front mudguard 60275 » Jet Black | 1 | $194.27 | Obsolete | View Details |
| 1 | T2302928-FB Front Mudguard Kit | Front Mudguard Kit Strontium Yellow | 1 | $198.15 | Obsolete | View Details |
| 1 | T2302928-FC Front Mudguard Kit | Front Mudguard Kit » 60264 Lightning Yellow | 1 | $198.15 | Obsolete | View Details |
| 1 | T2302922-FC Front mudguard | Front mudguard 60265 » Lightning Yellow | 1 | $194.27 | Obsolete | View Details |
| 1 | T2302928-CM Front Mudguard Kit | Front Mudguard Kit » 60526 Tornado Red | 1 | $198.15 | Obsolete | View Details |
| 1 | T2302922-CM Front mudguard | Front mudguard 60527 » Tornado Red | 1 | $194.27 | Obsolete | View Details |
| 1 | T2302922-MH Front mudguard | Front mudguard Aluminium Silver | 1 | $175.98 | Obsolete | View Details |
| 1 | T2302922-JD Front mudguard | Front mudguard Caspian Blue | 1 | $194.27 | Obsolete | View Details |
| 2 | 3550055-T0301 Washer, Plastic | Washer, Plastic » 60526 | 12 | $0.95 | Available to order | 12 |
| 3 | T3010072 Sleeve | Sleeve » 60526 | 4 | $1.21 | Available to order | 4 |
| 4 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc M6 x 25mm Silver | 2 | $1.13 | Available to order | 2 |
| 6 | T2700283 Amber reflector | Amber reflector | 2 | $6.88 | Available to order | 2 |
| 7 | T2700365 Spacer tube | Spacer tube » 60264 Yellow | 2 | $4.42 | Obsolete | View Details |
| 7 | T2700368 Spacer tube | Spacer tube 60265 » Yellow - PART NO LONGER AVAILABLE | 2 | $4.97 | Obsolete | View Details |
| 8 | T3700233 Clip, Brake Hose | Clip, Brake Hose | 2 | $6.27 | Available to order | 2 |
| 9 | 2040036-T0301 Cable Guide | Cable Guide * Part No Longer Available * | 1 | $11.33 | Obsolete | View Details |
| 10 | T2301318 Mounting strap | Mounting strap LH | 2 | $4.65 | Available to order | 2 |
| 10 | T2305693 Mounting Strap | Mounting Strap RH | 2 | $7.28 | Out of Stock | Notify Me |
