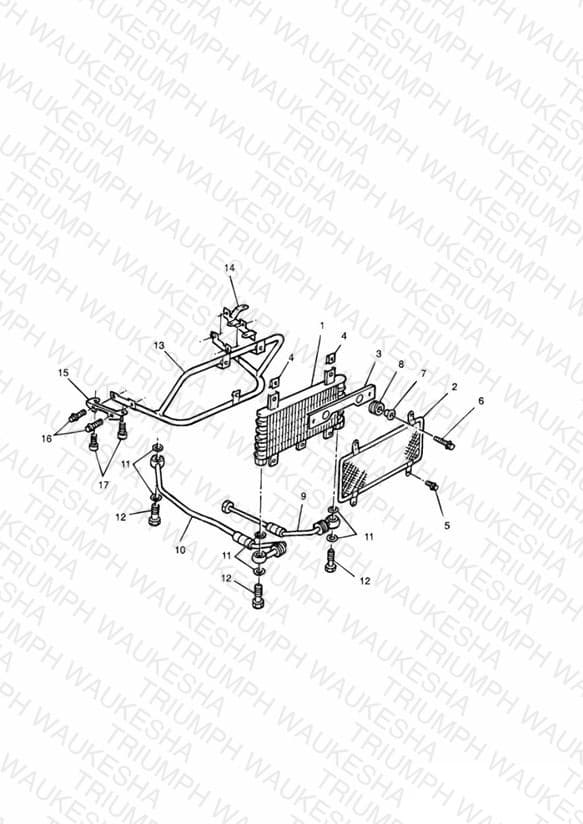

Oil Cooler 4 Cylinder Engines
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2101025 Oil cooler | Oil cooler » 1211 | 1 | $436.06 | Obsolete | View Details |
| 1 | 2101020-T0301 Oil cooler | Oil cooler 1212 » | 1 | $409.51 | Obsolete | View Details |
| 2 | 2101165-T0301 Grille | Grille » 1211 | 1 | $10.27 | Obsolete | View Details |
| 2 | 2101160-T0301 Grille | Grille 1212 » | 1 | $9.98 | Obsolete | View Details |
| 3 | 2101001-T0301 Mounting plate | Mounting plate » 1211 | 1 | $11.05 | Obsolete | View Details |
| 4 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 4 | $5.24 | Available to order | 4 |
| 5 | 3330506-T0301 Screw, Torx | Screw, Torx M6 x 12mm Stoneguard mounting | 4 | $1.36 | Obsolete | View Details |
| 6 | 3210010-T0301 Screw, Torx, M6 x 30 | Screw, Torx, M6 x 30 M6 x 30mm Oil cooler mounting | 1 | $2.08 | Obsolete | View Details |
| 7 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 3 | $6.15 | Available to order | 3 |
| 8 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 3 | $3.04 | Available to order | 3 |
| 9 | 2100020-T0301 Oil return pipe | Oil return pipe » 1211 - * PART NO LONGER AVAILABLE * | 1 | $101.11 | Obsolete | View Details |
| 9 | 2100026-T0301 Oil return pipe | Oil return pipe 1212 » | 1 | $92.68 | Obsolete | View Details |
| 10 | 2100019-T0301 Oil feed pipe | Oil feed pipe » 1211 | 1 | $98.20 | Obsolete | View Details |
| 10 | 2100025-T0301 Oil feed pipe | Oil feed pipe 1212 » | 1 | $96.85 | Obsolete | View Details |
| 11 | T3550547 Washer, Cu, OD19 x ID14.2 | Washer, Cu, OD19 x ID14.2 | 6 | $4.60 | Available to order | 6 |
| 12 | T1210241 Banjo Bolt, M14 x 28 | Banjo Bolt, M14 x 28 | 3 | $13.66 | Available to order | 3 |
| 13 | T2300038 Lower Subframe | Lower Subframe » 1211 | 1 | $138.44 | Obsolete | View Details |
| 13 | 2300057-T0301 Lower sub frame | Lower sub frame 1212 » | 1 | $89.70 | Obsolete | View Details |
| 14 | 2300039-T0301 Bracket lh | Bracket lh » 2970 | 1 | $7.28 | Backorder — Early October 2026 | 1 |
| 14 | 2300146-T0301 Bracket lh | Bracket lh 2971 » | 1 | $11.05 | Obsolete | View Details |
| 15 | 2300051-T0301 Bracket rh | Bracket rh | 1 | $10.11 | Obsolete | View Details |
| 16 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 4 | $1.84 | Available to order | 4 |
| 17 | T3330054 Screw, Skt, Btn/HD, M8 x 12 S/S | Screw, Skt, Btn/HD, M8 x 12 S/S M8 x 12mm | 4 | $5.29 | Obsolete | View Details |
