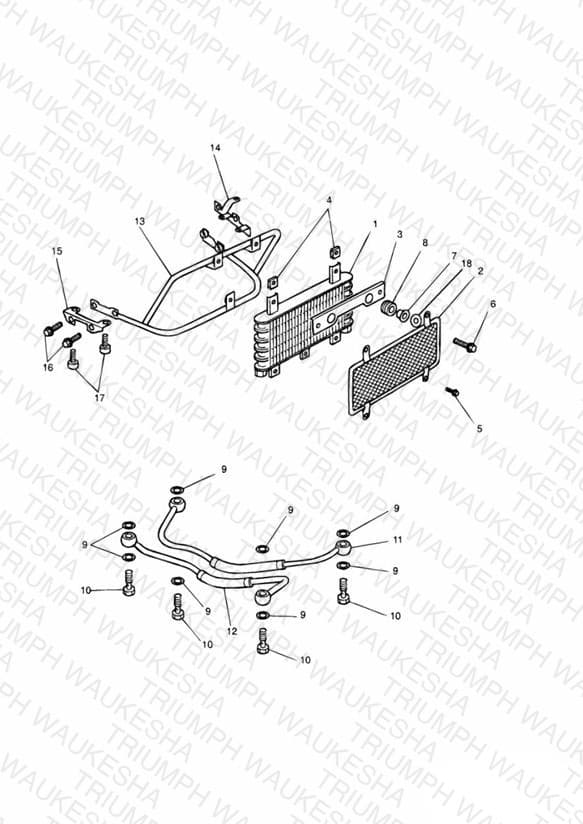

Oil Cooler 3 Cylinder Engines
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2101025 Oil cooler | Oil cooler | 1 | $423.36 | Obsolete | View Details |
| 2 | 2101165-T0301 Grille | Grille | 1 | $8.93 | Obsolete | View Details |
| 3 | 2101001-T0301 Mounting plate | Mounting plate | 1 | $9.61 | Obsolete | View Details |
| 4 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 4 | $4.92 | Backorder — Early August 2026 | 4 |
| 5 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S » 3722 Stoneguard mounting | 4 | $0.97 | Available to order | 4 |
| 5 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv 3723 » | 3 | $5.30 | Available to order | 3 |
| 6 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv Oil cooler mounting | 3 | $2.46 | Available to order | 3 |
| 7 | T3010701 Flanged Sleeve, 6.4 x 10 x 14.5 | Flanged Sleeve, 6.4 x 10 x 14.5 » 3722 | 2 | $5.30 | Available to order | 2 |
| 7 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 3723 » | 2 | $5.78 | Available to order | 2 |
| 8 | 3020110-T0301 Grommet, Dia 13 x 1.8 Replaced by T3020010 — Grommet, Mounting Tube | Grommet, Dia 13 x 1.8 | 3 | $1.31 | Unavailable | View Details |
| 9 | T3550547 Washer, Cu, OD19 x ID14.2 | Washer, Cu, OD19 x ID14.2 | 8 | $4.32 | Available to order | 8 |
| 10 | T1210241 Banjo Bolt, M14 x 28 | Banjo Bolt, M14 x 28 | 4 | $13.18 | Available to order | 4 |
| 11 | 2101005-T0301 Oil feed pipe | Oil feed pipe | 1 | $55.12 | Out of Stock | Notify Me |
| 12 | 2101006-T0301 Oil return pipe | Oil return pipe | 1 | $88.64 | Obsolete | View Details |
| 13 | T2300038 Lower Subframe | Lower Subframe PART NO LONGER AVAILABLE. | 1 | $133.12 | Obsolete | View Details |
| 14 | 2300052-T0301 Bracket rh | Bracket rh | 1 | $4.64 | Out of Stock | Notify Me |
| 15 | 2300147-T0301 Bracket lh | Bracket lh | 1 | $9.61 | Obsolete | View Details |
| 16 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 4 | $1.72 | Available to order | 4 |
| 17 | T3331625 Screw, Btn Hd, M8 x 12, Slv | Screw, Btn Hd, M8 x 12, Slv | 4 | $1.72 | Available to order | 4 |
| 18 | T1260309 Seal, Cam Cover, Screw, Twin Lip | Seal, Cam Cover, Screw, Twin Lip | 2 | $5.82 | Available to order | 2 |
