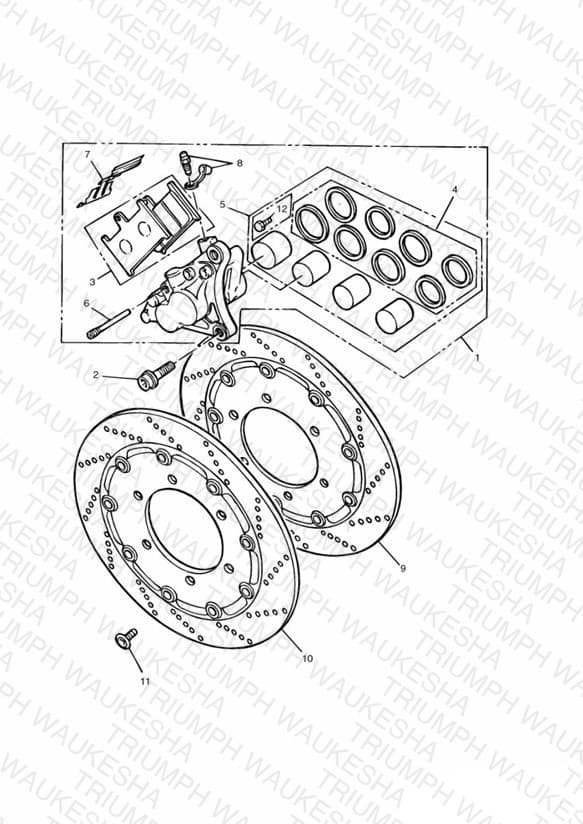

Front Brake Caliper and Discs
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2020200-T0301 Caliper assembly | Caliper assembly LH - PART NUMBER NO LONGER AVAILABLE | 1 | $675.95 | Obsolete | View Details |
| 1 | 2020300-T0301 Caliper assembly | Caliper assembly RH | 1 | $675.95 | Obsolete | View Details |
| 2 | T3205796 Bolt, HHF, Lghtd, M10 x 35, Slv | Bolt, HHF, Lghtd, M10 x 35, Slv M10 x 35mm | 4 | $11.75 | Available to order | 4 |
| 3 | 2020073-T0301 Brake Pad Set, x 2 Pads | Brake Pad Set, x 2 Pads 1 pad set per caliper | 2 | $65.17 | Available to order | 2 |
| 4 | T2020508 Seal kit | Seal kit 1 per caliper | 2 | $109.86 | Available to order | 2 |
| 5 | 2020254-T0301 Piston And Seal Set | Piston And Seal Set 1 piston set per caliper (inc`s seal & bolt set) | 2 | $245.32 | Available to order | 2 |
| 6 | T2020260 Pad Pin Set | Pad Pin Set 1 per caliper | 2 | $23.56 | Available to order | 2 |
| 7 | T2020258 Pad Spring Set | Pad Spring Set 1 per caliper | 2 | $21.91 | Available to order | 2 |
| 8 | T2020014 Bleed Screw | Bleed Screw 1 per caliper | 2 | $15.84 | Available to order | 2 |
| 9 | 2020020-T0301 Disc brake | Disc brake LH Black | 1 | $414.58 | Unavailable | View Details |
| 9 | T2020970 Disc brake | Disc brake PART NO LONGER AVAILABLE | 1 | $368.42 | Obsolete | View Details |
| 10 | 2020019-T0301 Disc brake | Disc brake RH Black | 1 | $394.57 | Unavailable | View Details |
| 10 | T2020971 Disc | Disc RH Silver | 1 | $385.11 | Backorder — Mid October 2026 | 1 |
| 11 | T2023233 Bolt, Disc | Bolt, Disc 6 per disc | 12 | $9.73 | Unavailable | View Details |
| 12 | T2020256 Bolt Set, Caliper | Bolt Set, Caliper 1 per caliper | 2 | $5.47 | Available to order | 2 |
