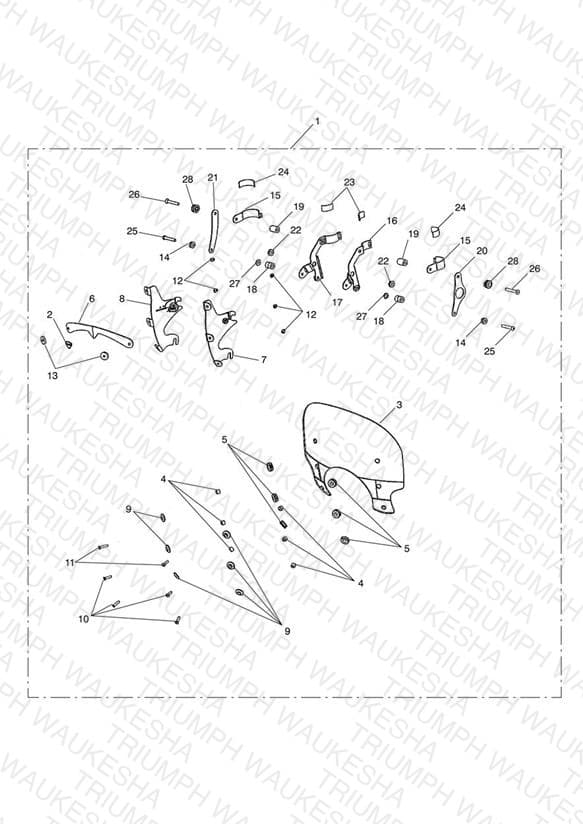

Quick Release, Summer - N/A to Special Edition (MY13)
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9708221 Quick Release, Summer Screen | Quick Release, Summer Screen 10.63" from cut out, includes mounting hardware - 425714 > Not suitable for Special Edition Bonnevilles | 1 | $44.50 | Obsolete | View Details |
| 2 | A9930127 Badge, 30mm, Pressed | Badge, 30mm, Pressed | 1 | $10.50 | Obsolete | View Details |
| 3 | A9700754 Windshield, Summer | Windshield, Summer Parts not structured in kit, spares condition only | 1 | $220.00 | Obsolete | View Details |
| 4 | A9700734 Sleeve, 12.7 x 9.4 x 6.35 | Sleeve, 12.7 x 9.4 x 6.35 Parts not structured in kit, spares condition only | 6 | $4.65 | Obsolete | View Details |
| 5 | A9700735 Bung, Rubber, Windshield | Bung, Rubber, Windshield Parts not structured in kit, spares condition only | 6 | $5.30 | Obsolete | View Details |
| 6 | A9700728 Brace, Front, Windshield | Brace, Front, Windshield Parts not structured in kit, spares condition only | 1 | $33.00 | Obsolete | View Details |
| 7 | A9700704 Brkt, Vert, LH | Brkt, Vert, LH Parts not structured in kit, spares condition only | 1 | $40.00 | Obsolete | View Details |
| 8 | A9700703 Brkt, Vert, RH | Brkt, Vert, RH Parts not structured in kit, spares condition only | 1 | $39.00 | Obsolete | View Details |
| 9 | A9910075 Washer, Finishing | Washer, Finishing Parts not structured in kit, spares condition only | 6 | $1.08 | Obsolete | View Details |
| 10 | A9700733 Bolt, C'Sunk, Skt, M6 x 25 | Bolt, C'Sunk, Skt, M6 x 25 Parts not structured in kit, spares condition only | 4 | $3.78 | Out of Stock | Notify Me |
| 11 | A9700758 Bolt, C'Sunk, Skt, M6 x 30 | Bolt, C'Sunk, Skt, M6 x 30 Parts not structured in kit, spares condition only | 2 | $2.70 | Available to order | 2 |
| 12 | A9741078 Nut, Hex Cap, M6 | Nut, Hex Cap, M6 Parts not structured in kit, spares condition only | 6 | $3.10 | Unavailable | View Details |
| 13 | A9700760 Spacer, Cross Brace | Spacer, Cross Brace Parts not structured in kit, spares condition only | 2 | $6.48 | Obsolete | View Details |
| 14 | A9700710 Spool, Lower, 3/4 Od | Spool, Lower, 3/4 Od Parts not structured in kit, spares condition only | 2 | $10.50 | Obsolete | View Details |
| 15 | A9700708 Clamp, Fork, Rear | Clamp, Fork, Rear Parts not structured in kit, spares condition only | 2 | $15.12 | Obsolete | View Details |
| 16 | A9700716 Bracket, Mount, LH | Bracket, Mount, LH Parts not structured in kit, spares condition only | 1 | $30.24 | Obsolete | View Details |
| 17 | A9700713 Bracket, Mount, RH | Bracket, Mount, RH Parts not structured in kit, spares condition only | 1 | $10.75 | Obsolete | View Details |
| 18 | A9700712 Spacer, Lower | Spacer, Lower Parts not structured in kit, spares condition only | 2 | $11.34 | Backorder — Early August 2026 | 2 |
| 19 | A9700709 Spacer, Upper | Spacer, Upper Parts not structured in kit, spares condition only | 2 | $11.88 | Obsolete | View Details |
| 20 | A9700730 Brkt, Outer, LH | Brkt, Outer, LH Parts not structured in kit, spares condition only | 1 | $10.50 | Obsolete | View Details |
| 21 | A9700731 Brkt, Outer, RH | Brkt, Outer, RH Parts not structured in kit, spares condition only | 1 | $10.50 | Obsolete | View Details |
| 22 | A9700729 Bung, Rubber, Brkt | Bung, Rubber, Brkt Parts not structured in kit, spares condition only | 2 | $2.85 | Obsolete | View Details |
| 23 | A9700745 Pad, Rubber, Short | Pad, Rubber, Short Parts not structured in kit, spares condition only | 2 | $3.24 | Obsolete | View Details |
| 24 | A9700742 Pad, Rubber, Long | Pad, Rubber, Long Parts not structured in kit, spares condition only | 2 | $3.24 | Obsolete | View Details |
| 25 | A9700715 Screw, Btn HD, Skt, M8 x 50 | Screw, Btn HD, Skt, M8 x 50 Parts not structured in kit, spares condition only | 2 | $2.16 | Obsolete | View Details |
| 26 | A9700707 Screw, C/Sk Skt HD, M8 x 50 | Screw, C/Sk Skt HD, M8 x 50 Parts not structured in kit, spares condition only | 2 | $2.35 | Obsolete | View Details |
| 27 | A9700759 Washer, M8 x 24 x 3.2, SS | Washer, M8 x 24 x 3.2, SS Parts not structured in kit, spares condition only | 2 | $2.16 | Obsolete | View Details |
| 28 | A9700763 Bobbin Assembly | Bobbin Assembly | 2 | $15.75 | Obsolete | View Details |
