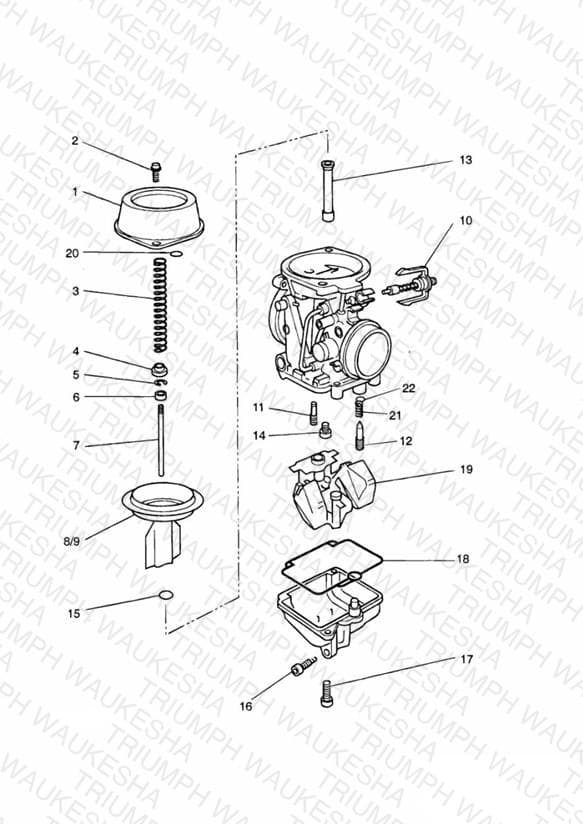

Carburettor Parts 4 Cyl (Carb assy T1240540)
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 1240038-T0301 Cover | Cover | 4 | $42.57 | Available to order | 4 |
| 2 | 1240039-T0301 Screw | Screw | 8 | $1.13 | Available to order | 8 |
| 3 | 1240040-T0301 Piston spring | Piston spring | 4 | $6.83 | Available to order | 4 |
| 4 | 1240041-T0301 Spacer | Spacer | 4 | $1.13 | Available to order | 4 |
| 5 | 1240042-T0301 Circlip | Circlip | 4 | $1.13 | Available to order | 4 |
| 6 | 1240043-T0301 Spacer | Spacer | 4 | $0.97 | Backorder — Late August 2026 | 4 |
| 7 | 1240044-T0301 Needle 5e60-3 | Needle 5e60-3 Cylinder No 1 & 4 | 2 | $9.49 | Backorder — Mid August 2026 | 2 |
| 7 | 1240045-T0301 Needle 5e77-3 | Needle 5e77-3 Cylinder No 2 & 3 | 2 | $11.88 | Available to order | 2 |
| 8 | 1240048-T0301 Diaphragm | Diaphragm | 4 | $20.05 | Available to order | 4 |
| 9 | 1240195-T0301 Piston | Piston | 4 | $48.49 | Available to order | 4 |
| 10 | 1240050-T0301 Needle assy | Needle assy | 4 | $5.54 | Backorder — Mid August 2026 | 4 |
| 11 | 1240325-T0301 Pilot jet 37.5 | Pilot jet 37.5 | 4 | $6.73 | Available to order | 4 |
| 12 | 1240052-T0301 Adjusting screw | Adjusting screw | 4 | $12.04 | Available to order | 4 |
| 13 | 1240053-T0301 Jet | Jet | 4 | $37.09 | Available to order | 4 |
| 14 | T1240380 Main jet 110 | Main jet 110 Cylinder No 1 & 4 | 2 | $9.41 | Obsolete | View Details |
| 14 | 1240055-T0301 Main jet 115 | Main jet 115 Cylinder No 2 & 3 * PART NO LONGER AVAILABLE * | 2 | $5.75 | Obsolete | View Details |
| 15 | 1240058-T0301 O ring | O ring | 4 | $5.24 | Available to order | 4 |
| 16 | 1240059-T0301 Screw | Screw * PART NO LONGER AVAILABLE * | 4 | $3.46 | Obsolete | View Details |
| 17 | 1240017-T0301 Screw | Screw | 4 | $1.40 | Available to order | 4 |
| 18 | 1240060-T0301 Seal | Seal | 4 | $11.41 | Available to order | 4 |
| 19 | 1240061-T0301 Float assembly | Float assembly | 4 | $67.47 | Available to order | 4 |
| 20 | 1240076-T0301 O ring | O ring | 4 | $2.00 | Available to order | 4 |
| 21 | 1240318-T0301 Spring | Spring | 4 | $11.32 | Available to order | 4 |
| 22 | 1240320-T0301 Washer | Washer | 4 | $11.32 | Available to order | 4 |
