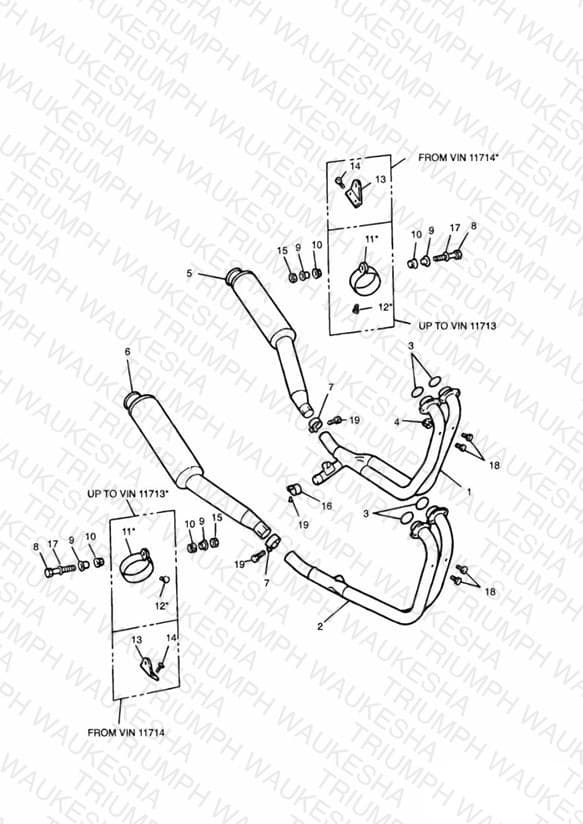

Exhaust System 4 Cylinder
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2203501 Downpipe Assy, LH | Downpipe Assy, LH | 1 | $332.44 | Obsolete | View Details |
| 2 | T2203502 Downpipe Assy, RH | Downpipe Assy, RH | 1 | $363.24 | Obsolete | View Details |
| 3 | T2200229 Exhaust Pipe Sealing Ring | Exhaust Pipe Sealing Ring | 4 | $14.59 | Available to order | 4 |
| 4 | T3350301 Nut, Flanged, M8, Silver | Nut, Flanged, M8, Silver | 8 | $0.86 | Available to order | 8 |
| 5 | T2200705 Silencer | Silencer » 11713 LH Black end caps | 1 | $607.60 | Obsolete | View Details |
| 5 | T2200706 Silencer | Silencer » 11713 LH Silver end caps | 1 | $607.60 | Obsolete | View Details |
| 5 | 2200720-T0301 Silencer | Silencer 11714 » » 16921 LH | 1 | $607.60 | Obsolete | View Details |
| 5 | T2200725 Silencer | Silencer 16922 » » 42766 LH | 1 | $581.92 | Obsolete | View Details |
| 5 | T2200894 Silencer | Silencer 42767 » LH | 1 | $499.20 | Obsolete | View Details |
| 5 | T2200896 Silencer | Silencer 42767 » LH FR | 1 | $499.20 | Obsolete | View Details |
| 6 | T2200700 Silencer | Silencer » 11713 RH Black end caps | 1 | $607.60 | Obsolete | View Details |
| 6 | T2200701 Silencer | Silencer » 11713 RH Silver end caps | 1 | $348.16 | Out of Stock | Notify Me |
| 6 | 2200710-T0301 Silencer | Silencer 11714 » » 16921 RH | 1 | $567.31 | Obsolete | View Details |
| 6 | T2200715 Silencer | Silencer 16922 » » 42766 RH | 1 | $570.52 | Obsolete | View Details |
| 6 | T2200895 Silencer | Silencer 42767 » RH | 1 | $569.30 | Obsolete | View Details |
| 6 | T2200891 Silencer | Silencer 42767 » RH DE SE NL | 1 | $569.30 | Obsolete | View Details |
| 7 | T2201695 Clamp, Exhaust, Polished | Clamp, Exhaust, Polished | 2 | $11.33 | Available to order | 2 |
| 8 | T3200060 Bolt, HHF, M8x55, Black | Bolt, HHF, M8x55, Black M8 x 55mm | 2 | $11.64 | Available to order | 2 |
| 9 | T3010048 Flanged Sleeve, M8 x 12.4 x 17.2 | Flanged Sleeve, M8 x 12.4 x 17.2 | 4 | $12.32 | Available to order | 4 |
| 10 | 2200045-T0301 Rubber bush | Rubber bush | 4 | $1.66 | Obsolete | View Details |
| 11 | 2200730-T0301 Silencer clamp | Silencer clamp » 11713 Part not serviced in US | 2 | $45.64 | Obsolete | View Details |
| 12 | 3330610-T0301 Screw | Screw » 11713 M6 x 16mm Part not serviced in US | 2 | $1.04 | Obsolete | View Details |
| 13 | T2200675 Bracket | Bracket 11714 » Part not serviced in US | 2 | $10.52 | Out of Stock | Notify Me |
| 14 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 11714 » Part not serviced in US | 4 | $3.73 | Available to order | 4 |
| 15 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 2 | $2.61 | Available to order | 2 |
| 16 | 2200175-T0301 Clamp | Clamp | 1 | $9.67 | Obsolete | View Details |
| 17 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 2 | $2.91 | Available to order | 2 |
| 18 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 4 | $5.20 | Available to order | 4 |
| 19 | T3330081 Bolt | Bolt M8 x 35mm Black | 3 | $0.93 | Obsolete | View Details |
