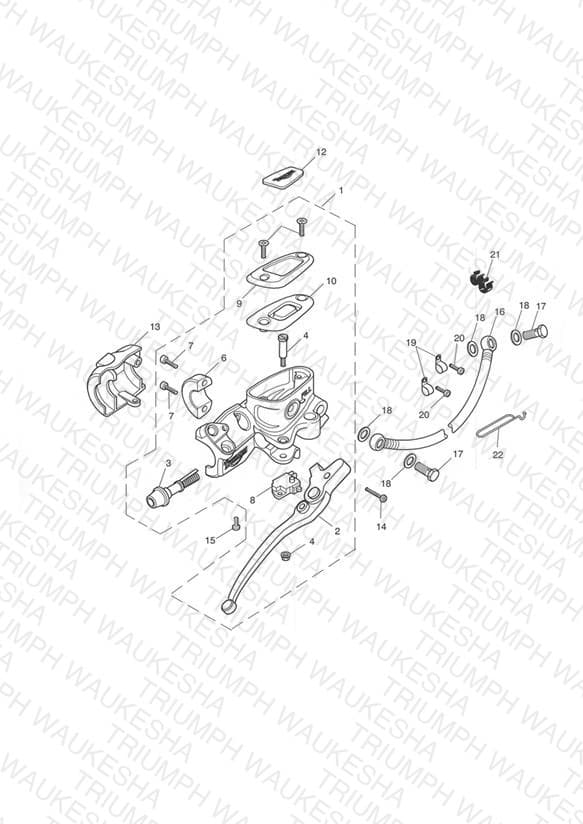

Front Brake Master Cylinder & Hoses - Bonneville T100
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2026000 Master Cylinder Assy, Front | Master Cylinder Assy, Front > 210261 | 1 | $378.49 | Available to order | 1 |
| 1 | T2026200 Master Cylinder Assy, Front | Master Cylinder Assy, Front 210262 > | 1 | $378.49 | Backorder — Mid August 2026 | 1 |
| 2 | T2026001 Lever, Front Brake | Lever, Front Brake > 210261 | 1 | $65.49 | Available to order | 1 |
| 2 | T2025441 Lever Assy | Lever Assy 210262 > | 1 | $87.92 | Available to order | 1 |
| 3 | T2020087 Piston set | Piston set | 1 | $114.08 | Available to order | 1 |
| 4 | T2020158 Lever, Bolt, Front M/Cyl | Lever, Bolt, Front M/Cyl | 1 | $13.56 | Available to order | 1 |
| 6 | T2026004 Clamp, Handlebar | Clamp, Handlebar | 1 | $17.49 | Available to order | 1 |
| 7 | T2026013 Screw, M6 x 20 | Screw, M6 x 20 | 2 | $2.85 | Available to order | 2 |
| 8 | T2021217 Switch Set | Switch Set | 1 | $24.43 | Available to order | 1 |
| 9 | T2026006 Cap Set, Reservoir | Cap Set, Reservoir | 1 | $25.38 | Available to order | 1 |
| 10 | T2026017 Diaphragm, Reservoir | Diaphragm, Reservoir | 1 | $20.81 | Available to order | 1 |
| 11 | T2020166 Screw, Reservoir | Screw, Reservoir | 2 | $1.91 | Available to order | 2 |
| 12 | T2026016 Badge, Reservoir | Badge, Reservoir | 1 | $10.81 | Available to order | 1 |
| 13 | T2026029 Switch Set, Lights On | Switch Set, Lights On | 1 | $188.23 | Available to order | 1 |
| 14 | T3330018 Screw, Phil, Pan/Hd, M5 x 25 | Screw, Phil, Pan/Hd, M5 x 25 | 1 | $2.17 | Available to order | 1 |
| 15 | T3330382 Screw, Phil Pan HD, M5 x 12, Slv | Screw, Phil Pan HD, M5 x 12, Slv | 1 | $0.44 | Available to order | 1 |
| 16 | T2020908 Brake hose | Brake hose PART NO LONGER AVAILABLE | 1 | $96.11 | Obsolete | View Details |
| 17 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 | 2 | $7.02 | Available to order | 2 |
| 18 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 4 | $1.07 | Available to order | 4 |
| 19 | T3700192 P Clip, ID 8mm | P Clip, ID 8mm | 2 | $11.12 | Available to order | 2 |
| 20 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 2 | $0.97 | Available to order | 2 |
| 21 | T2040811 Twin Clip, Brake Hose | Twin Clip, Brake Hose | 1 | $2.63 | Available to order | 1 |
| 22 | T3700194 Guide Wire, SS | Guide Wire, SS * Part No Longer Available * | 1 | $7.64 | Obsolete | View Details |
