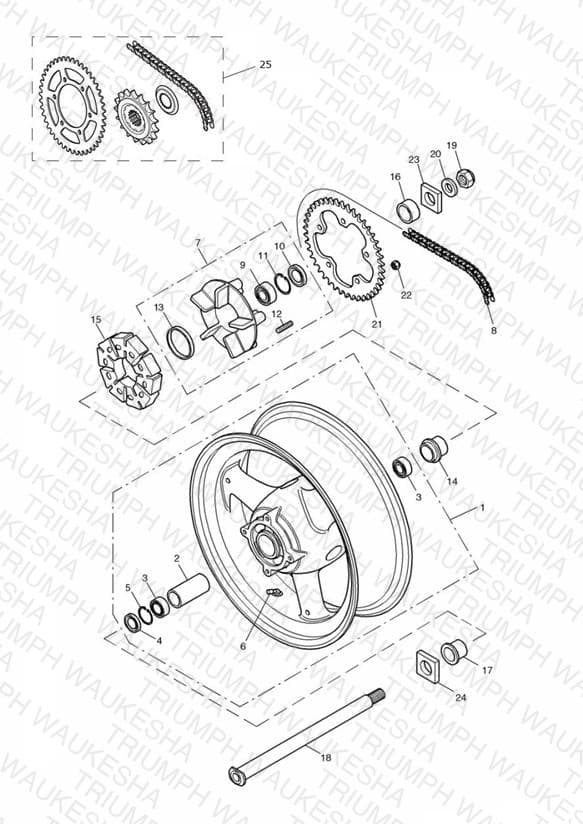

Rear Wheel/Final Drive Double sided swingarm
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2010344 Wheel assembly | Wheel assembly 5.5 X 17 Black | 1 | $667.38 | Obsolete | View Details |
| 2 | T2004204 Spacer, Wheel | Spacer, Wheel | 1 | $48.49 | Available to order | 1 |
| 3 | T3800703 Bearing, Ball, 20 47 14 | Bearing, Ball, 20 47 14 | 2 | $45.80 | Available to order | 2 |
| 4 | T3600701 Oil Seal, DC 28 47 7 | Oil Seal, DC 28 47 7 | 1 | $22.52 | Backorder — Late August 2026 | 1 |
| 5 | T3500402 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $0.89 | Available to order | 1 |
| 6 | T2000253 Valve Assembly | Valve Assembly | 1 | $5.56 | Obsolete | View Details |
| 7 | T2012137 Sprocket carrier assembly | Sprocket carrier assembly | 1 | $355.51 | Obsolete | View Details |
| 8 | T2010330 Chain, Final Drive, 106L, Did | Chain, Final Drive, 106L, Did | 1 | $250.39 | Available to order | 1 |
| 9 | T3800029 Bearing Ball, 25 52 15 | Bearing Ball, 25 52 15 | 1 | $16.31 | Available to order | 1 |
| 10 | T3600073 Oil Seal, 35 52 6 | Oil Seal, 35 52 6 | 1 | $21.86 | Available to order | 1 |
| 11 | T3500203 Circlip, Int, 52 x 2 | Circlip, Int, 52 x 2 | 1 | $16.04 | Available to order | 1 |
| 12 | T2012112 Stud | Stud | 5 | $6.74 | Unavailable | View Details |
| 13 | T2012113 Ring | Ring | 1 | $43.13 | Available to order | 1 |
| 14 | T2012095 Spacer | Spacer | 1 | $19.47 | Available to order | 1 |
| 15 | T2012223 Rubber Cush Drive | Rubber Cush Drive | 1 | $114.08 | Available to order | 1 |
| 16 | T2010647 Spacer Tube, 35 x 20 x 12.5 | Spacer Tube, 35 x 20 x 12.5 | 1 | $8.09 | Available to order | 1 |
| 17 | T2012032 Spacer | Spacer * Part No Longer Available * | 1 | $9.95 | Obsolete | View Details |
| 18 | T2012030 Spindle | Spindle * Part No Longer Available * | 1 | $42.04 | Obsolete | View Details |
| 19 | T3350118 Locknut, Plain, M18 | Locknut, Plain, M18 | 1 | $11.56 | Available to order | 1 |
| 20 | T3555035 Washer, 19 x 34 x 3 | Washer, 19 x 34 x 3 | 1 | $1.27 | Available to order | 1 |
| 21 | T2012514 Sprocket | Sprocket 44T | 1 | $53.84 | Available to order | 1 |
| 22 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 5 | $4.16 | Available to order | 5 |
| 23 | T2059052 Block, Chain Adj, LH | Block, Chain Adj, LH LH | 1 | $43.64 | Available to order | 1 |
| 24 | T2059051 Block, Chain Adj, RH | Block, Chain Adj, RH RH | 1 | $43.64 | Available to order | 1 |
| 25 | T2017440 Chain & Sprocket Kit, 106/44/19 | Chain & Sprocket Kit, 106/44/19 | 1 | $274.57 | Backorder — Late August 2026 | 1 |
