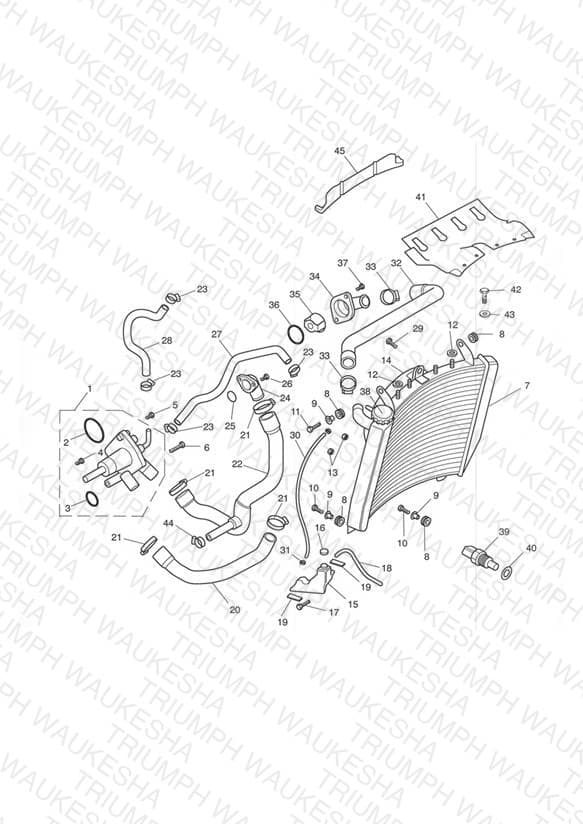

Cooling System
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2103000 Water pump assy | Water pump assy | 1 | $199.12 | Obsolete | View Details |
| 2 | T2108008 Seal | Seal | 1 | $5.18 | Obsolete | View Details |
| 3 | T3600300 O ring | O ring | 1 | $10.25 | Obsolete | View Details |
| 4 | T2108006 Bleed screw | Bleed screw | 1 | $2.30 | Obsolete | View Details |
| 5 | T3330105 Screw,torx | Screw,torx M6 x 75mm Silver | 1 | $3.14 | Available to order | 1 |
| 6 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv M6 x 35mm Black | 1 | $3.93 | Available to order | 1 |
| 7 | T2108007 Radiator | Radiator | 1 | $687.40 | Obsolete | View Details |
| 8 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 4 | $2.04 | Available to order | 4 |
| 9 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $6.15 | Available to order | 4 |
| 10 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.84 | Available to order | 2 |
| 12 | T3550253 Washer, Dia 5 mm, Retaining | Washer, Dia 5 mm, Retaining > 204585 | 2 | $1.04 | Available to order | 2 |
| 13 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 M6 | 2 | $0.71 | Available to order | 2 |
| 14 | T2108050 Fan assembly | Fan assembly | 1 | $568.22 | Obsolete | View Details |
| 15 | T2101366 Expansion tank | Expansion tank | 1 | $52.32 | Obsolete | View Details |
| 16 | T2101015 Cap, Expansion Tank | Cap, Expansion Tank | 1 | $2.14 | Available to order | 1 |
| 17 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.73 | Available to order | 1 |
| 18 | T3620300 Overflow pipe | Overflow pipe 10x1050 | 1 | $13.66 | Available to order | 1 |
| 19 | T3660113 Rubber pad | Rubber pad | 2 | $1.55 | Obsolete | View Details |
| 20 | T2108400 Pipe, Coolant, Rad to Pump | Pipe, Coolant, Rad to Pump | 1 | $39.31 | Obsolete | View Details |
| 21 | T2102242 Hose Clip, 23-35, Bright, Ss | Hose Clip, 23-35, Bright, Ss | 4 | $8.22 | Available to order | 4 |
| 22 | T2100806 Hose | Hose Pump to Block | 1 | $189.86 | Available to order | 1 |
| 23 | T3700171 Hose Clip, Dia 14.0 | Hose Clip, Dia 14.0 | 4 | $7.38 | Available to order | 4 |
| 24 | T2107009 Kit, Water Elbow, Cast | Kit, Water Elbow, Cast | 1 | $55.98 | Out of Stock | Notify Me |
| 25 | T3600190 O Ring, 24 x 2.5 | O Ring, 24 x 2.5 | 1 | $1.21 | Available to order | 1 |
| 27 | T2100802 Hose | Hose Oil Cooler to Radiator | 1 | $14.15 | Obsolete | View Details |
| 28 | T2100801 Hose | Hose | 1 | $11.21 | Obsolete | View Details |
| 29 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S | 3 | $1.04 | Available to order | 3 |
| 30 | T3620334 Hose coolant | Hose coolant | 1 | $9.56 | Obsolete | View Details |
| 31 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 2 | $5.77 | Available to order | 2 |
| 32 | T2100800 Hose | Hose Head to Radiator - * PART NO LONGER AVAILABLE * | 1 | $44.52 | Obsolete | View Details |
| 33 | T2102113 Clip, Hose, 20-32, Bright, Ss | Clip, Hose, 20-32, Bright, Ss | 2 | $7.94 | Available to order | 2 |
| 34 | T2100145 Elbow, Water, Cyl Hd, Raw | Elbow, Water, Cyl Hd, Raw | 1 | $54.10 | Available to order | 1 |
| 35 | T2100715 Thermostat | Thermostat | 1 | $71.82 | Available to order | 1 |
| 36 | T2100713 O Ring, Water Elbow | O Ring, Water Elbow | 1 | $3.73 | Available to order | 1 |
| 37 | T3331101 Bolt, HHF, M6 x 20, S/S | Bolt, HHF, M6 x 20, S/S | 2 | $4.60 | Obsolete | View Details |
| 38 | T2108005 Cap, Radiator | Cap, Radiator | 1 | $20.71 | Available to order | 1 |
| 39 | T2100808 Sensor, Engine Coolant | Sensor, Engine Coolant Engine coolant | 1 | $53.02 | Available to order | 1 |
| 40 | T3550571 Washer, Cu, OD 16 x ID 12.5 | Washer, Cu, OD 16 x ID 12.5 | 1 | $5.41 | Available to order | 1 |
| 41 | T2108010 Deflector | Deflector | 1 | $42.41 | Obsolete | View Details |
| 42 | T3330162 Bleed Screw, Radiator | Bleed Screw, Radiator | 1 | $4.42 | Obsolete | View Details |
| 43 | T3550131 WASHER,BLEED SCREW,RADIATOR | WASHER,BLEED SCREW,RADIATOR | 1 | $2.28 | Obsolete | View Details |
| 44 | T2102111 Hose Clip, 12-20, Bright | Hose Clip, 12-20, Bright | 1 | $11.84 | Available to order | 1 |
| 45 | T2100810 Air Deflector Moulding | Air Deflector Moulding 204586 > | 1 | $0.95 | Obsolete | View Details |
