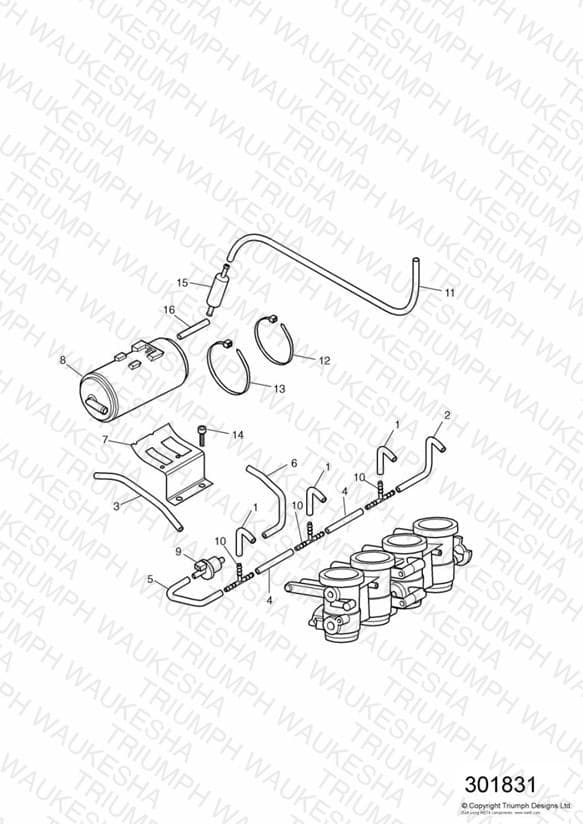

Evaporative Loss Equipment California only - Daytona 600
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1242901 Hose | Hose Length 73.9mm | 3 | $2.21 | Obsolete | View Details |
| 2 | T1242903 Hose | Hose Length 147.1mm | 1 | $2.21 | Obsolete | View Details |
| 3 | T1242904 Hose, Length, 145 | Hose, Length, 145 Length 145mm | 1 | $3.42 | Obsolete | View Details |
| 4 | T1242905 Hose | Hose Length 70.8mm | 2 | $2.21 | Obsolete | View Details |
| 5 | T1242906 Hose | Hose | 1 | $3.20 | Obsolete | View Details |
| 6 | T1242907 Hose, Purge Valve | Hose, Purge Valve | 1 | $3.24 | Obsolete | View Details |
| 7 | T1242590 Bracket, Purge Cannister | Bracket, Purge Cannister | 1 | $33.63 | Obsolete | View Details |
| 8 | T2400160 Carbon Canister | Carbon Canister | 1 | $56.07 | Obsolete | View Details |
| 9 | T1245822 Spares Kit, Purge Valve | Spares Kit, Purge Valve Kit contains purge valve & flylead | 1 | $57.03 | Available to order | 1 |
| 10 | T1243154 Connector, T-Piece | Connector, T-Piece | 3 | $2.74 | Available to order | 3 |
| 11 | T1242532 Tube, Corrugated, 320mm | Tube, Corrugated, 320mm | 1 | $23.35 | Available to order | 1 |
| 12 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 2 | $0.89 | Available to order | 2 |
| 13 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 2 | $0.95 | Available to order | 2 |
| 14 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 2 | $2.10 | Available to order | 2 |
| 15 | T2400045 Valve, Roll Over | Valve, Roll Over | 1 | $33.95 | Unavailable | View Details |
| 16 | T1242913 Hose, Length 40mm | Hose, Length 40mm | 1 | $3.23 | Obsolete | View Details |
