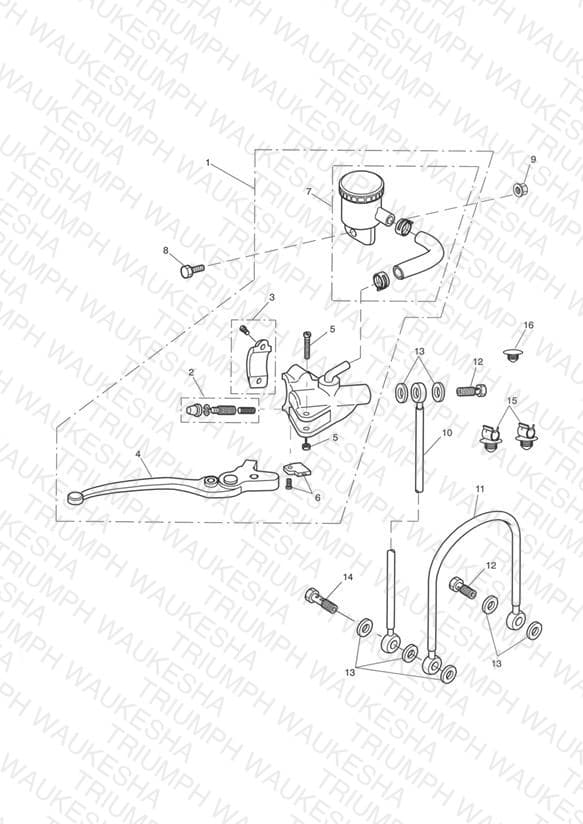

Front Brake Master Cylinder
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2025480 Master cylinder assembly | Master cylinder assembly | 1 | $216.28 | Obsolete | View Details |
| 2 | T2020003 Piston Set, M/Cyl, 14.0 | Piston Set, M/Cyl, 14.0 | 1 | $57.03 | Available to order | 1 |
| 3 | T2025403 Holder Set | Holder Set | 1 | $13.51 | Available to order | 1 |
| 4 | T2025441 Lever Assy | Lever Assy | 1 | $87.92 | Available to order | 1 |
| 5 | T2020158 Lever, Bolt, Front M/Cyl | Lever, Bolt, Front M/Cyl | 1 | $13.56 | Available to order | 1 |
| 6 | T2021217 Switch Set | Switch Set | 1 | $24.43 | Available to order | 1 |
| 7 | T2025481 Reservoir assy | Reservoir assy | 1 | $37.05 | Obsolete | View Details |
| 8 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 9 | T3350012 Locknut, Flgd, M6, Black, Zinc | Locknut, Flgd, M6, Black, Zinc M6 | 1 | $1.13 | Available to order | 1 |
| 10 | T2020764 Brake Hose, 645mm, Braided | Brake Hose, 645mm, Braided 189987 > | 1 | $63.93 | Obsolete | View Details |
| 10 | T2020772 Brake hose | Brake hose Braided > 189986 | 1 | $78.87 | Available to order | 1 |
| 11 | T2020732 Brake hose | Brake hose PART NO LONGER AVAILABLE | 1 | $60.89 | Obsolete | View Details |
| 12 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 | 2 | $7.02 | Available to order | 2 |
| 13 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 7 | $1.07 | Available to order | 7 |
| 14 | T3250019 Bolt, Banjo, M10 x 31 | Bolt, Banjo, M10 x 31 | 1 | $6.29 | Available to order | 1 |
| 15 | T3700175 Clip, Brake Hose | Clip, Brake Hose 189987 > | 2 | $6.65 | Available to order | 2 |
| 15 | T3700140 Double clip | Double clip | 2 | $6.65 | Available to order | 2 |
| 16 | T3700180 Plug, Hole, Plastic | Plug, Hole, Plastic 189987 > | 1 | $2.55 | Available to order | 1 |
