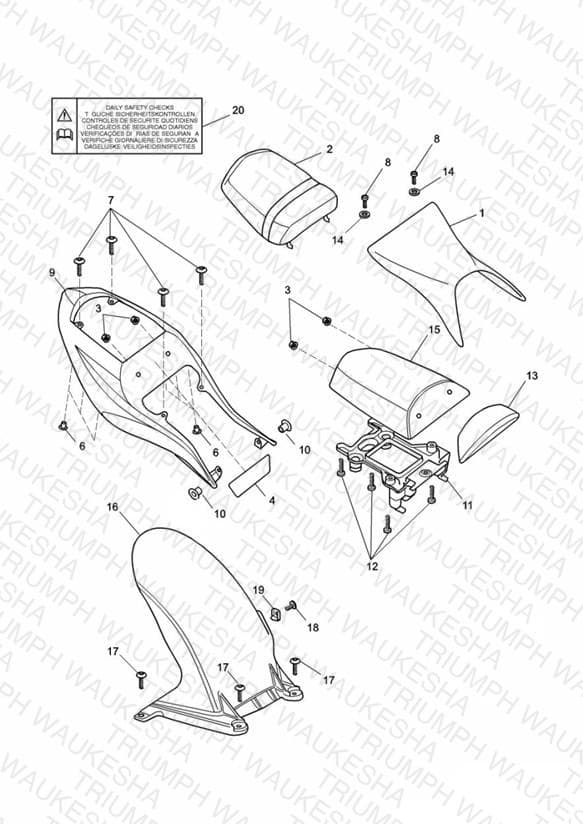

Bodywork - Rear Side Panels and Seat
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2304872 Seat | Seat Front | 1 | $175.98 | Obsolete | View Details |
| 2 | T2304882 Seat | Seat Rear | 1 | $177.31 | Obsolete | View Details |
| 3 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 M8 | 4 | $2.40 | Available to order | 4 |
| 4 | T2304876 Pad | Pad | 1 | $23.07 | Available to order | 1 |
| 6 | T3701121 Rivet, Plastic, Screw Type | Rivet, Plastic, Screw Type Plastic | 6 | $1.29 | Available to order | 6 |
| 7 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 4 | $7.18 | Available to order | 4 |
| 8 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 2 | $1.61 | Available to order | 2 |
| 9 | T2305729-FA Rear Bodywork | Rear Bodywork Racing Yellow (Daytona 650) | 1 | $375.33 | Obsolete | View Details |
| 9 | T2305729-CM Rear Bodywork | Rear Bodywork Tornado Red (Daytona 650) | 1 | $394.10 | Obsolete | View Details |
| 9 | T2305831-FA Body assy rear | Body assy rear » 186150 Racing Yellow | 1 | $392.67 | Obsolete | View Details |
| 9 | T2305831-MH Body assy rear | Body assy rear » 186150 Aluminium Silver | 1 | $553.59 | Available to order | 1 |
| 9 | T2305832-FA Body assy rear | Body assy rear Racing Yellow 186151 > (Daytona 600) | 1 | $389.54 | Obsolete | View Details |
| 9 | T2305832-MH Body assy rear | Body assy rear Aluminium Silver 186151 » 210261 | 1 | $373.18 | Obsolete | View Details |
| 9 | T2305832-CM Body assy rear | Body assy rear 186151 » Tornado Red (Daytona 600) | 1 | $498.63 | Out of Stock | Notify Me |
| 10 | T2301004 Flanged spacer | Flanged spacer | 2 | $10.19 | Available to order | 2 |
| 11 | T2304892 Seat base | Seat base | 1 | $92.01 | Obsolete | View Details |
| 12 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 4 | $1.61 | Available to order | 4 |
| 13 | T2304893 Pad | Pad | 1 | $44.66 | Available to order | 1 |
| 14 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 2 | $1.50 | Available to order | 2 |
| 15 | T2305821-FA Cowl | Cowl Racing Yellow | 1 | $193.72 | Obsolete | View Details |
| 15 | T2305821-MH Cowl | Cowl Aluminium Silver > 210261 | 1 | $193.72 | Obsolete | View Details |
| 15 | T2305821-CM Seat cowl | Seat cowl 186151 » Tornado Red | 1 | $207.60 | Obsolete | View Details |
| 16 | T2305841-FA Rear hugger | Rear hugger Racing Yellow | 1 | $179.41 | Out of Stock | Notify Me |
| 16 | T2305841-MH Rear hugger | Rear hugger Aluminium Silver > 210261 | 1 | $135.86 | Obsolete | View Details |
| 16 | T2305841-CM Rear hugger | Rear hugger 186151 » Tornado Red | 1 | $135.86 | Obsolete | View Details |
| 17 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S | 3 | $1.04 | Available to order | 3 |
| 18 | T3331062 Bolt, But/Hd, M5 x 16, Shld, Slv | Bolt, But/Hd, M5 x 16, Shld, Slv | 1 | $7.38 | Available to order | 1 |
| 19 | T3351052 Nut, Captive, 4-5.5mm | Nut, Captive, 4-5.5mm | 1 | $4.65 | Available to order | 1 |
| 20 | T3900152 Label, Daily Safety Checks | Label, Daily Safety Checks Daily checks | 1 | $6.06 | Out of Stock | Notify Me |
