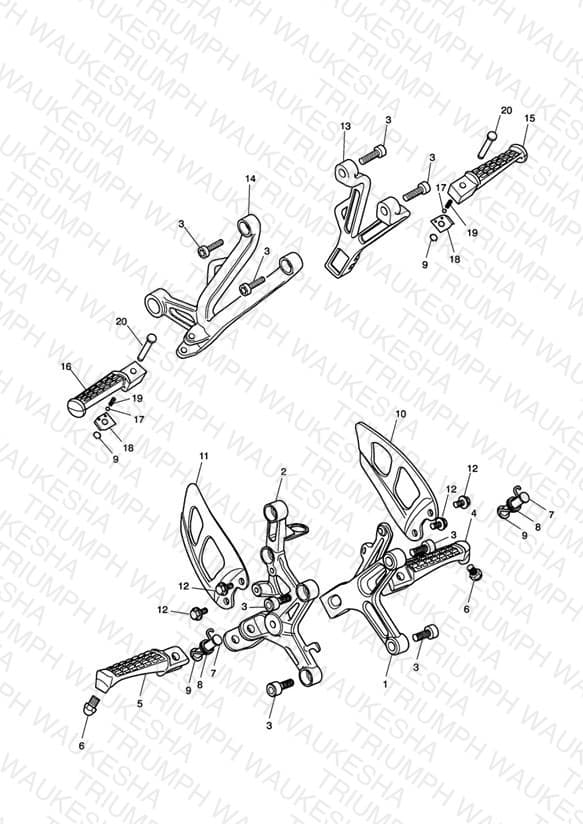

Footrests & Mountings
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2080689 Control Plate, LH | Control Plate, LH Daytona 650 | 1 | $93.14 | Available to order | 1 |
| 1 | T2080552 Control plate lh | Control plate lh Daytona 600 | 1 | $93.14 | Available to order | 1 |
| 2 | T2080551 Control plate rh | Control plate rh Daytona 600 | 1 | $100.76 | Available to order | 1 |
| 2 | T2080695 Control Plate, RH | Control Plate, RH Daytona 650 | 1 | $100.76 | Backorder — Late August 2026 | 1 |
| 3 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv | 8 | $7.42 | Available to order | 8 |
| 4 | T2080851 Footrest | Footrest LH front | 1 | $90.30 | Available to order | 1 |
| 5 | T2080861 Footrest | Footrest RH front | 1 | $90.30 | Available to order | 1 |
| 6 | T2085164 Peg, Bank Angle, 9.2mm | Peg, Bank Angle, 9.2mm | 2 | $14.07 | Available to order | 2 |
| 7 | T2080547 Pivot pin | Pivot pin Front Footrest | 2 | $6.55 | Available to order | 2 |
| 8 | T2080819 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.29 | Available to order | 2 |
| 9 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 4 | $2.85 | Available to order | 4 |
| 10 | T2081004 Heelguard, LH | Heelguard, LH | 1 | $53.24 | Available to order | 1 |
| 11 | T2081003 Heelguard, RH | Heelguard, RH | 1 | $53.24 | Available to order | 1 |
| 12 | T3330709 Bolt, RHHF, Lightd, M6 x 12, S/S | Bolt, RHHF, Lightd, M6 x 12, S/S | 4 | $1.58 | Obsolete | View Details |
| 13 | T2081055 Footrest Hanger, Lh, B/Burnished | Footrest Hanger, Lh, B/Burnished Daytona 650 | 1 | $124.16 | Obsolete | View Details |
| 13 | T2080558 Footrest hanger rear lh | Footrest hanger rear lh Daytona 600 | 1 | $128.36 | Obsolete | View Details |
| 14 | T2081056 Footrest Hanger, RH, B/Burnished | Footrest Hanger, RH, B/Burnished Daytona 650 | 1 | $132.44 | Obsolete | View Details |
| 14 | T2080561 Footrest hanger rear rh | Footrest hanger rear rh Daytona 600 | 1 | $169.19 | Out of Stock | Notify Me |
| 15 | T2080875 Rear Footrest, LH | Rear Footrest, LH | 1 | $50.59 | Obsolete | View Details |
| 16 | T2080885 Footrest, Rear, Rh | Footrest, Rear, Rh | 1 | $56.07 | Available to order | 1 |
| 17 | T2081675 Detent Ball | Detent Ball Daytona 650 | 2 | $1.91 | Available to order | 2 |
| 17 | T2080563 Ball bearing | Ball bearing Daytona 600 - PART NO LONGER AVAILABLE | 2 | $1.18 | Obsolete | View Details |
| 18 | T2081672 Detent Plate | Detent Plate Daytona 650 | 2 | $5.30 | Available to order | 2 |
| 18 | T2080567 Detent plate | Detent plate Daytona 600 - PART NO LONGER AVAILABLE | 2 | $3.78 | Obsolete | View Details |
| 19 | T2080569 Return spring | Return spring Daytona 600 | 2 | $1.13 | Obsolete | View Details |
| 19 | T2081674 Spring, Detent | Spring, Detent Daytona 650 | 2 | $6.39 | Available to order | 2 |
| 20 | T2080546 Pin, Pivot, Footrest | Pin, Pivot, Footrest Daytona 650 | 2 | $6.55 | Available to order | 2 |
