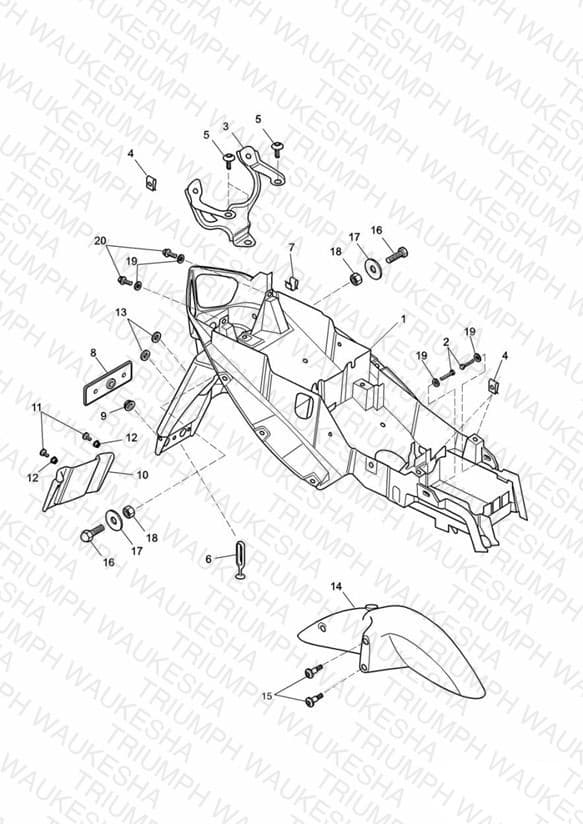

Mudguards/Chainguard/Battery Box
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2301182 Rear mudguard | Rear mudguard | 1 | $141.69 | Obsolete | View Details |
| 2 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 2 | $5.65 | Available to order | 2 |
| 3 | T2303731 Bracket rear lamp | Bracket rear lamp | 1 | $25.97 | Obsolete | View Details |
| 4 | T3351052 Nut, Captive, 4-5.5mm | Nut, Captive, 4-5.5mm | 3 | $4.65 | Available to order | 3 |
| 5 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 3 | $7.18 | Available to order | 3 |
| 6 | T2301456 Bungee Strap, Rubber | Bungee Strap, Rubber | 1 | $16.64 | Available to order | 1 |
| 7 | T3700033 Clip edge | Clip edge | 1 | $1.22 | Obsolete | View Details |
| 8 | T2300593 Spacer | Spacer | 1 | $2.82 | Obsolete | View Details |
| 9 | T2700493 Nut & Washer Assy, M5, Slv | Nut & Washer Assy, M5, Slv | 1 | $1.91 | Available to order | 1 |
| 10 | T2301183 Extension | Extension | 1 | $42.55 | Obsolete | View Details |
| 12 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 4 | $2.40 | Available to order | 4 |
| 13 | T3550061 Washer, M6x13 | Washer, M6x13 | 2 | $1.84 | Available to order | 2 |
| 14 | T2305741-FA Front mudguard | Front mudguard Racing Yellow | 1 | $155.79 | Obsolete | View Details |
| 14 | T2305741-MH Front mudguard | Front mudguard Aluminium Silver > 210261 | 1 | $155.79 | Obsolete | View Details |
| 14 | T2305741-CM Front mudguard | Front mudguard Tornado Red | 1 | $206.88 | Out of Stock | Notify Me |
| 15 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv | 4 | $6.27 | Available to order | 4 |
| 16 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.84 | Available to order | 2 |
| 17 | T2700284 Reflex Reflector | Reflex Reflector | 2 | $3.54 | Available to order | 2 |
| 18 | T3350012 Locknut, Flgd, M6, Black, Zinc | Locknut, Flgd, M6, Black, Zinc | 2 | $1.21 | Available to order | 2 |
| 19 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 4 | $1.29 | Available to order | 4 |
| 20 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.73 | Available to order | 2 |
