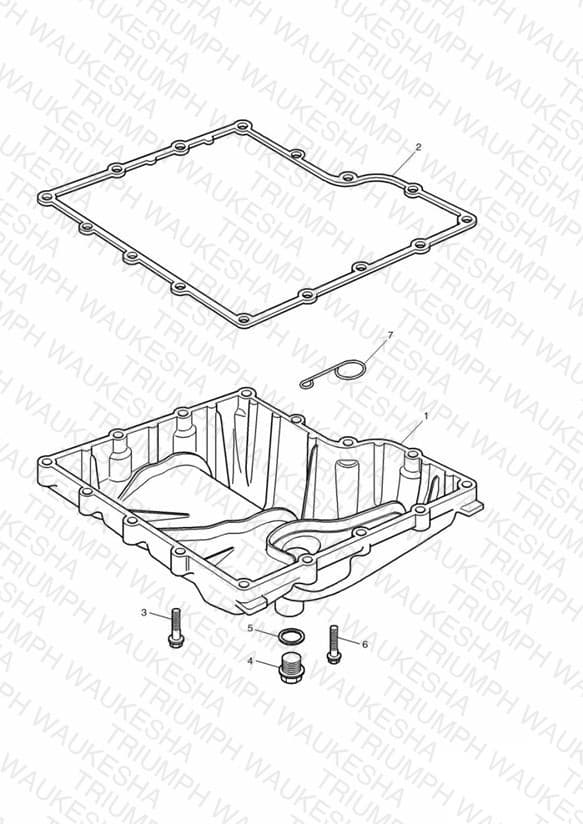

Sump
Parts (7)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1230800 Sump | Sump | 1 | $323.89 | Available to order | 1 |
| 2 | T1230316 Sump Gasket | Sump Gasket | 1 | $16.93 | Available to order | 1 |
| 3 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 15 | $2.63 | Available to order | 15 |
| 4 | T3458989 Sump Plug, M14 x 1.5, Blk | Sump Plug, M14 x 1.5, Blk | 1 | $5.48 | Available to order | 1 |
| 5 | T3551092 Sealing Washer Multipack (25) | Sealing Washer Multipack (25) Part only available as Multipack | 1 | $27.56 | Available to order | 1 |
| 6 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 7 | T3700032 Guide | Guide | 1 | $1.32 | Obsolete | View Details |
