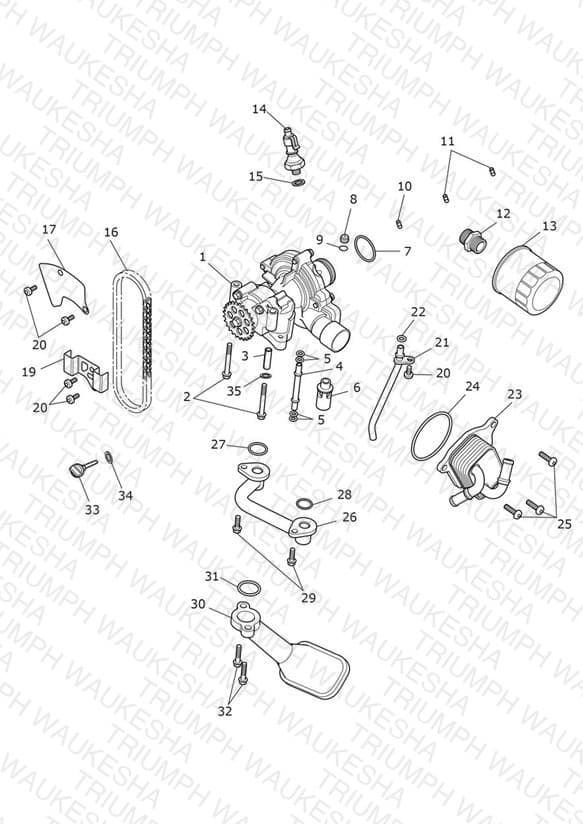

Lubrication System
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1211395 Pump Assembly, Oil & Water | Pump Assembly, Oil & Water | 1 | $302.81 | Available to order | 1 |
| 2 | T3200123 Bolt, RHHF, M6 x 50, Encaps | Bolt, RHHF, M6 x 50, Encaps | 2 | $3.17 | Available to order | 2 |
| 3 | T3000034 Dowel, Hollow, Split Dia 8 x 30 | Dowel, Hollow, Split Dia 8 x 30 | 1 | $3.50 | Available to order | 1 |
| 4 | T1210249 Pump Drain Tube | Pump Drain Tube | 1 | $5.98 | Available to order | 1 |
| 5 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 4 | $5.30 | Available to order | 4 |
| 6 | T1216505 Pressure Relief Valve | Pressure Relief Valve | 1 | $36.43 | Available to order | 1 |
| 7 | T3600127 O Ring, 31.6x2.4 | O Ring, 31.6x2.4 | 1 | $3.50 | Available to order | 1 |
| 8 | T1210000 Restrictor, Oil, Gearbox | Restrictor, Oil, Gearbox | 1 | $6.45 | Available to order | 1 |
| 9 | T3600126 O Ring, ID 7.1 x 1.6 | O Ring, ID 7.1 x 1.6 | 1 | $3.04 | Available to order | 1 |
| 10 | T1211012 Sleeve, Oil Jet, Piston, 1.2mm | Sleeve, Oil Jet, Piston, 1.2mm | 1 | $6.14 | Available to order | 1 |
| 11 | T1211000 Sleeve, Oil Jet, Piston | Sleeve, Oil Jet, Piston | 2 | $6.14 | Available to order | 2 |
| 12 | T1210438 Oil Filter Adaptor | Oil Filter Adaptor | 1 | $12.29 | Available to order | 1 |
| 13 | T1218001 Oil Filter, OES | Oil Filter, OES | 1 | $17.96 | Available to order | 1 |
| 13 | T1210440 Oil Filter Multipack (24) | Oil Filter Multipack (24) | 1 | $379.33 | Available to order | 1 |
| 14 | T1210091 Oil Pressure Switch, M10 | Oil Pressure Switch, M10 | 1 | $50.37 | Available to order | 1 |
| 15 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 1 | $0.89 | Available to order | 1 |
| 16 | T1210121 Chain, 6.35 Pitch, 74 Link | Chain, 6.35 Pitch, 74 Link | 1 | $56.85 | Available to order | 1 |
| 17 | T1210126 Baffle Plate, C/Case Breather | Baffle Plate, C/Case Breather | 1 | $3.17 | Available to order | 1 |
| 19 | T1210023 Retainer Plate, Aux Drive Chain | Retainer Plate, Aux Drive Chain | 1 | $10.90 | Available to order | 1 |
| 20 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 5 | $1.40 | Available to order | 5 |
| 21 | T1210248 Pipe, Oil, Breather Drain | Pipe, Oil, Breather Drain | 1 | $9.90 | Available to order | 1 |
| 22 | T3600153 O Ring, 7.6 x 2.4 | O Ring, 7.6 x 2.4 | 1 | $2.00 | Available to order | 1 |
| 23 | T1216504 Heat Exchanger, Oil/Water, Aluminium | Heat Exchanger, Oil/Water, Aluminium | 1 | $405.57 | Available to order | 1 |
| 24 | T3600262 O Ring, ID 64.77 x 2.62 | O Ring, ID 64.77 x 2.62 | 1 | $1.79 | Available to order | 1 |
| 25 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 3 | $5.30 | Available to order | 3 |
| 26 | T1210252 Oil Feed Pipe | Oil Feed Pipe | 1 | $85.52 | Available to order | 1 |
| 27 | T3600132 O Ring 20 x 2.62 | O Ring 20 x 2.62 | 1 | $4.19 | Available to order | 1 |
| 28 | T3600191 O Ring, 16 x 2 | O Ring, 16 x 2 | 1 | $3.77 | Available to order | 1 |
| 29 | T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 1 | $5.60 | Available to order | 1 |
| 30 | T1210247 Oil Pick-Up | Oil Pick-Up | 1 | $37.09 | Available to order | 1 |
| 31 | T3600106 O-Ring, 24 x 2.5 | O-Ring, 24 x 2.5 | 1 | $1.51 | Available to order | 1 |
| 32 | T3200134 Bolt, RHHF, M6x25, Encaps | Bolt, RHHF, M6x25, Encaps | 2 | $2.74 | Out of Stock | Notify Me |
| 33 | T1211110 Dipstick, Oil Level | Dipstick, Oil Level All Markets Except BR. | 1 | $20.81 | Available to order | 1 |
| 34 | T1210138 O Ring, Oil Dipstick | O Ring, Oil Dipstick | 1 | $2.74 | Available to order | 1 |
| 35 | T3550962 Washer, M6 x 13 x 1 | Washer, M6 x 13 x 1 | 1 | $1.91 | Available to order | 1 |
