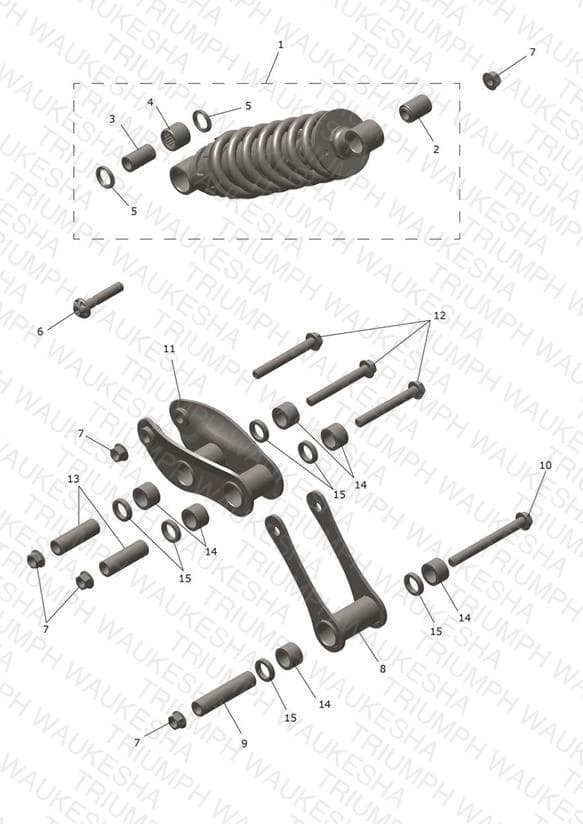

RSU and Linkage
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2051185 Rear Suspension Unit | Rear Suspension Unit | 1 | $2028.46 | Available to order | 1 |
| 2 | T2051674 Damper Bush | Damper Bush | 1 | $23.77 | Out of Stock | Notify Me |
| 3 | T2051671 Bush Collar | Bush Collar | 1 | $12.61 | Out of Stock | Notify Me |
| 4 | T2051672 Needle Bearing | Needle Bearing | 1 | $15.43 | Out of Stock | Notify Me |
| 5 | T2051673 Dust Seal | Dust Seal | 2 | $19.50 | Out of Stock | Notify Me |
| 6 | T3332650 Bolt, TX, M10 x 52.5 | Bolt, TX, M10 x 52.5 | 1 | $15.21 | Available to order | 1 |
| 7 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 5 | $4.43 | Available to order | 5 |
| 8 | T2055102 Drag Link | Drag Link | 1 | $65.56 | Backorder — Late September 2026 | 1 |
| 9 | T2053522 Sleeve, Ground | Sleeve, Ground | 1 | $26.23 | Backorder — Late September 2026 | 1 |
| 10 | T3205763 Bolt, HHF, M10 x 100, Slv | Bolt, HHF, M10 x 100, Slv | 1 | $3.04 | Backorder — Mid October 2026 | 1 |
| 11 | T2055101 Rocker, Fabricated | Rocker, Fabricated | 1 | $76.71 | Backorder — Early October 2026 | 1 |
| 12 | T3205767 Bolt, HHF, M10 x 80, Slv | Bolt, HHF, M10 x 80, Slv | 3 | $6.44 | Available to order | 3 |
| 13 | T2055588 Sleeve, Ground, 17 10 54 | Sleeve, Ground, 17 10 54 | 2 | $10.14 | Available to order | 2 |
| 14 | T3800177 Bearing, Needle Roller, 17 24 15 | Bearing, Needle Roller, 17 24 15 | 6 | $18.35 | Available to order | 6 |
| 15 | T3600066 Oil Seal, 24 17 5 | Oil Seal, 24 17 5 | 6 | $9.09 | Available to order | 6 |
| 16 | T2051991 Extension Handle | Extension Handle Not Illustrated | 1 | $6.54 | Available to order | 1 |
| 17 | T2301448 C-Spanner, Dia 62 | C-Spanner, Dia 62 Not Illustrated | 1 | $14.27 | Available to order | 1 |
