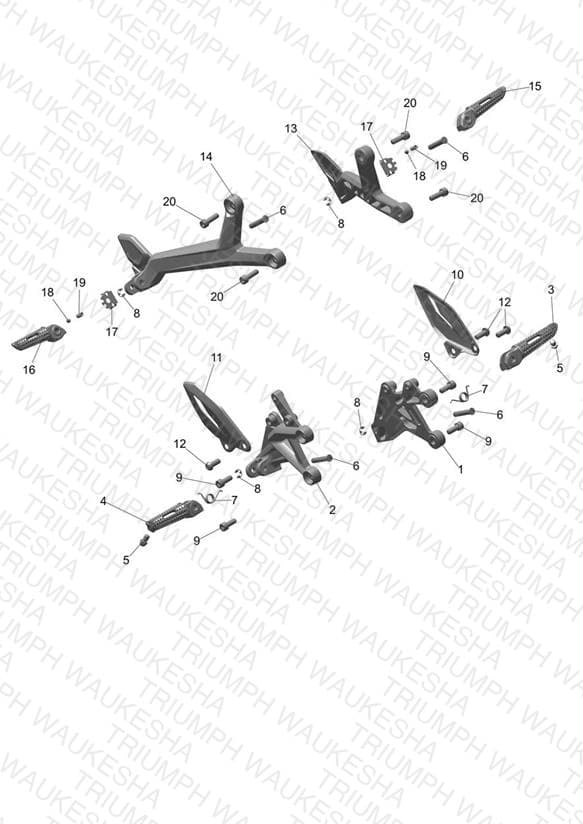

Foot Controls
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2083183 Control Plate, LH | Control Plate, LH | 1 | $118.72 | Available to order | 1 |
| 2 | T2083184 Control Plate, RH | Control Plate, RH | 1 | $118.72 | Available to order | 1 |
| 3 | T2082830 Footrest, Front, LH | Footrest, Front, LH | 1 | $77.41 | Backorder — Mid October 2026 | 1 |
| 4 | T2082831 Footrest, Front, RH | Footrest, Front, RH | 1 | $77.41 | Available to order | 1 |
| 5 | T2080780 Bank Angle Peg | Bank Angle Peg | 2 | $14.09 | Available to order | 2 |
| 6 | T2080546 Pin, Pivot, Footrest | Pin, Pivot, Footrest | 4 | $6.98 | Available to order | 4 |
| 7 | T2080819 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.70 | Available to order | 2 |
| 8 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 4 | $3.04 | Available to order | 4 |
| 9 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv | 4 | $7.90 | Available to order | 4 |
| 10 | T2083185 Heelguard, LH | Heelguard, LH > CS8747 All Mkts Expt BR/IN - > CT4056 BR/IN Only | 1 | $56.02 | Available to order | 1 |
| 10 | T2083471 Heelguard, LH | Heelguard, LH CS8748 > All Mkts Expt BR/IN & CT4057 > BR/IN Only | 1 | $28.75 | Out of Stock | Notify Me |
| 11 | T2083186 Heelguard, RH | Heelguard, RH > CS8747 All Mkts Expt BR & IN - > CT4056 BR/IN Only | 1 | $56.02 | Available to order | 1 |
| 11 | T2083472 Heelguard, RH | Heelguard, RH CS8748 > All Mkts Expt BR/IN & CT4057 > BR/IN Only | 1 | $25.00 | Out of Stock | Notify Me |
| 12 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 3 | $3.73 | Available to order | 3 |
| 13 | T2082793 Footrest Hanger, LH | Footrest Hanger, LH | 1 | $143.81 | Available to order | 1 |
| 14 | T2083330 Footrest Hanger, RH | Footrest Hanger, RH | 1 | $143.81 | Out of Stock | Notify Me |
| 15 | T2088202 Footrest, Rear, LH | Footrest, Rear, LH | 1 | $35.95 | Backorder — Early November 2026 | 1 |
| 16 | T2088203 Footrest, Rear, RH | Footrest, Rear, RH | 1 | $35.95 | Out of Stock | Notify Me |
| 17 | T2081672 Detent Plate | Detent Plate | 2 | $5.65 | Available to order | 2 |
| 18 | T2081675 Detent Ball | Detent Ball | 2 | $2.04 | Available to order | 2 |
| 19 | T2081674 Spring, Detent | Spring, Detent | 2 | $6.81 | Available to order | 2 |
| 20 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 4 | $4.38 | Available to order | 4 |
