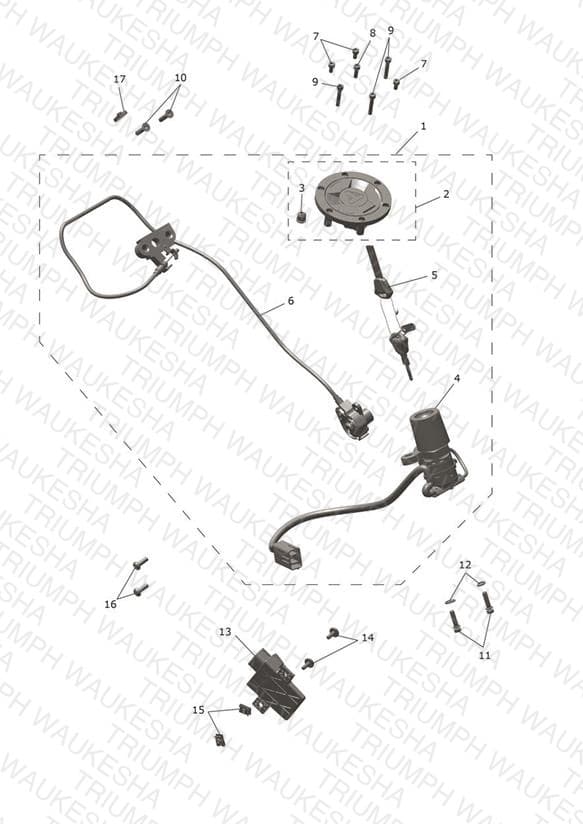

Lockset
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2505740 Lock Kit | Lock Kit | 1 | $466.66 | Available to order | 1 |
| 2 | T2401242 Filler Cap Assy, Fuel Tank | Filler Cap Assy, Fuel Tank | 1 | $212.94 | Available to order | 1 |
| 3 | T2500622 Seal, Filler Cap, Breather | Seal, Filler Cap, Breather | 1 | $6.14 | Available to order | 1 |
| 4 | T2508445 Ignition Lock, Combined | Ignition Lock, Combined | 1 | $266.57 | Available to order | 1 |
| 5 | T2503718 Key, Cut, Immobiliser | Key, Cut, Immobiliser Supplied as pair | 1 | $96.97 | Out of Stock | Notify Me |
| 5 | T2503717 Key, Blank, Immobiliser | Key, Blank, Immobiliser Supplied as single | 2 | $72.26 | Available to order | 2 |
| 6 | T2505742 Seat Latch Assembly | Seat Latch Assembly | 1 | $31.10 | Out of Stock | Notify Me |
| 7 | T3050341 Screw, Cap/Hd, M5 x 10, Slv | Screw, Cap/Hd, M5 x 10, Slv | 3 | $3.80 | Backorder — Early September 2026 | 3 |
| 8 | T3050342 Screw, Cap/Hd, M5 x 16, Slv | Screw, Cap/Hd, M5 x 16, Slv | 1 | $2.85 | Available to order | 1 |
| 9 | T3050343 Screw, Cap/Hd, M5 x 30, Slv | Screw, Cap/Hd, M5 x 30, Slv | 3 | $4.45 | Available to order | 3 |
| 10 | T3330184 Screw, C'sunk Tx, M6 x 25, Slv | Screw, C'sunk Tx, M6 x 25, Slv | 2 | $1.27 | Available to order | 2 |
| 11 | T3330327 Bolt, Shear, M6 x 22, Enc | Bolt, Shear, M6 x 22, Enc | 2 | $5.24 | Available to order | 2 |
| 12 | T3550436 Washer, M6, Elongated | Washer, M6, Elongated | 2 | $4.45 | Available to order | 2 |
| 13 | T2507434 Immobiliser ECU, RF 434 | Immobiliser ECU, RF 434 All Except JP | 1 | $1173.60 | Available to order | 1 |
| 13 | T2507315 Immobiliser ECU, RF 315 | Immobiliser ECU, RF 315 JP Only | 1 | $1173.60 | Out of Stock | Notify Me |
| 14 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 2 | $4.92 | Available to order | 2 |
| 15 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $4.55 | Available to order | 2 |
| 16 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 1 | $0.97 | Available to order | 1 |
| 17 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
