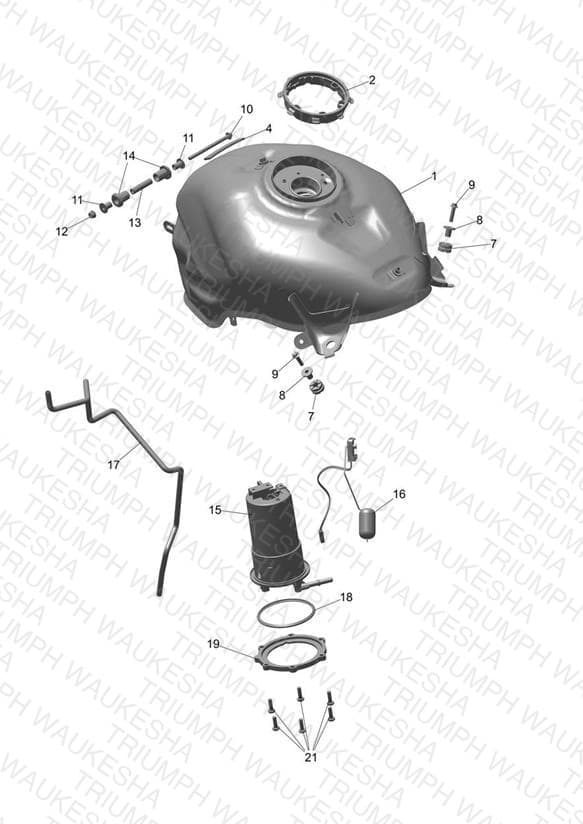

Fuel Tank, Fuel Pump & Fittings
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2408551 Fuel Tank | Fuel Tank | 1 | $832.65 | Available to order | 1 |
| 2 | T2405473 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $8.12 | Available to order | 1 |
| 7 | T3020601 Grommet, Castellated | Grommet, Castellated | 2 | $4.01 | Available to order | 2 |
| 8 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 2 | $4.12 | Available to order | 2 |
| 9 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 2 | $2.63 | Available to order | 2 |
| 10 | T3202330 Bolt, RHHF, M6 x 90, Slv | Bolt, RHHF, M6 x 90, Slv | 1 | $11.03 | Available to order | 1 |
| 11 | T3010701 Flanged Sleeve, 6.4 x 10 x 14.5 | Flanged Sleeve, 6.4 x 10 x 14.5 | 2 | $5.30 | Available to order | 2 |
| 12 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 13 | T2407891 Spacer, Fuel Tank | Spacer, Fuel Tank | 1 | $4.42 | Out of Stock | Notify Me |
| 14 | T2400446 Rubber Bush | Rubber Bush | 2 | $3.24 | Out of Stock | Notify Me |
| 15 | T2408552 Fuel Pump | Fuel Pump | 1 | $535.60 | Available to order | 1 |
| 16 | T2406177 Fuel Level Sender | Fuel Level Sender | 1 | $95.01 | Available to order | 1 |
| 17 | T2409148 Drain Hose, Fuel Tank | Drain Hose, Fuel Tank | 1 | $38.99 | Out of Stock | Notify Me |
| 18 | T2401887 Seal, Fuel Pump Module | Seal, Fuel Pump Module | 1 | $10.25 | Available to order | 1 |
| 19 | T2400562 Location Plate, Pump | Location Plate, Pump | 1 | $37.09 | Available to order | 1 |
| 21 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
