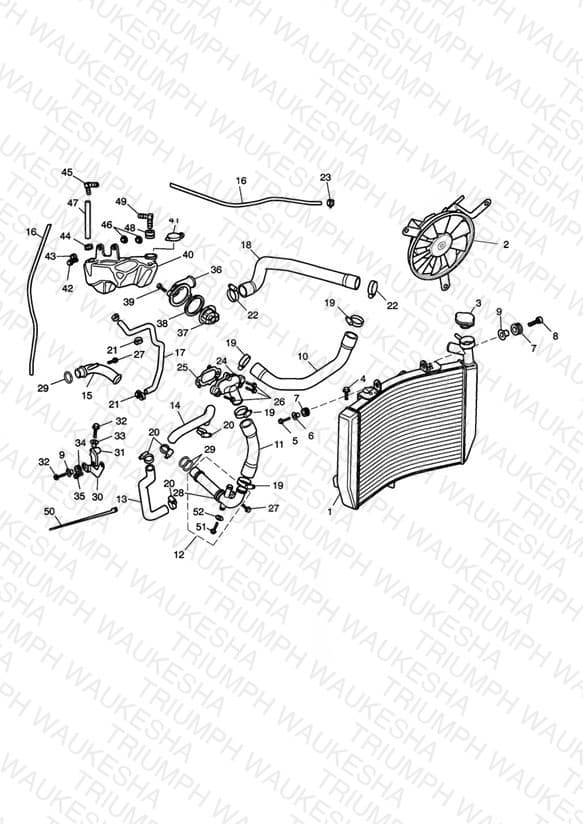

Cooling System
Parts (51)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2100072 Radiator, Curved | Radiator, Curved | 1 | $862.60 | Available to order | 1 |
| 2 | T2100073 Fan, Cooling | Fan, Cooling | 1 | $396.11 | Available to order | 1 |
| 3 | T2100081 Cap Assy, Radiator | Cap Assy, Radiator | 1 | $13.51 | Available to order | 1 |
| 4 | T2100084 Bleed Screw, Nylon | Bleed Screw, Nylon | 1 | $7.42 | Available to order | 1 |
| 5 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 1 | $4.55 | Available to order | 1 |
| 6 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 1 | $5.78 | Available to order | 1 |
| 7 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 2 | $1.91 | Available to order | 2 |
| 8 | T3203030 Bolt, RHHF, Domed, M6 x 30 | Bolt, RHHF, Domed, M6 x 30 | 1 | $3.50 | Available to order | 1 |
| 9 | T3010144 Flanged Sleeve, M6 x 9.5 x 10.5 | Flanged Sleeve, M6 x 9.5 x 10.5 | 2 | $3.77 | Available to order | 2 |
| 10 | T2105110 Hose, Coolant, Rad to Pump | Hose, Coolant, Rad to Pump | 1 | $35.73 | Available to order | 1 |
| 11 | T2100407 Hose, Water Pump Outlet | Hose, Water Pump Outlet | 1 | $25.65 | Available to order | 1 |
| 12 | T2107016 Kit, Water Pump Outlet | Kit, Water Pump Outlet Sump cover gasket also required | 1 | $68.42 | Available to order | 1 |
| 13 | T2105112 Hose, Coolant, HE to Rad | Hose, Coolant, HE to Rad | 1 | $36.11 | Available to order | 1 |
| 14 | T2105111 Hose, Coolant, Pump Outlet | Hose, Coolant, Pump Outlet | 1 | $24.23 | Available to order | 1 |
| 15 | T2107012 Pipe, Water Pump Inlet | Pipe, Water Pump Inlet | 1 | $42.57 | Available to order | 1 |
| 16 | T3620661 Hose, Coolant, Swaged End | Hose, Coolant, Swaged End | 2 | $26.78 | Available to order | 2 |
| 17 | T2100408 Hose, Bypass, Water | Hose, Bypass, Water | 1 | $13.33 | Available to order | 1 |
| 18 | T2105109 Hose, Coolant, Rad to Therm | Hose, Coolant, Rad to Therm | 1 | $42.14 | Available to order | 1 |
| 19 | T3707580 Hose Clip, Dia 20-32 | Hose Clip, Dia 20-32 | 4 | $9.57 | Available to order | 4 |
| 20 | T3707570 Hose, Clip Dia 12-22 | Hose, Clip Dia 12-22 | 4 | $10.81 | Available to order | 4 |
| 21 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 2 | $5.42 | Available to order | 2 |
| 22 | T3707585 Clip, Hose, Dia 27-35 | Clip, Hose, Dia 27-35 | 2 | $4.64 | Available to order | 2 |
| 23 | T3700077 Clip, 10.5 Rer Oetiker | Clip, 10.5 Rer Oetiker | 1 | $4.01 | Available to order | 1 |
| 24 | T2100224 Cover, Water Inlet | Cover, Water Inlet | 1 | $31.39 | Available to order | 1 |
| 25 | T2100205 Gasket, Water Inlet | Gasket, Water Inlet | 1 | $3.24 | Available to order | 1 |
| 26 | T3331101 Bolt, HHF, M6 x 20, S/S | Bolt, HHF, M6 x 20, S/S | 3 | $4.00 | Obsolete | View Details |
| 27 | T3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc | Bolt, RHHF, Domed, S/S, M6 x 16, Enc | 2 | $4.01 | Out of Stock | Notify Me |
| 28 | T3600190 O Ring, 24 x 2.5 | O Ring, 24 x 2.5 | 1 | $1.13 | Available to order | 1 |
| 29 | T3600124 O Ring, ID 21.5 x 3 | O Ring, ID 21.5 x 3 | 3 | $3.39 | Available to order | 3 |
| 30 | T2100076 Bracket, Lower Mount, RAD | Bracket, Lower Mount, RAD | 1 | $15.19 | Available to order | 1 |
| 31 | T2101330 Bracket, Radiator, Lower, Rear | Bracket, Radiator, Lower, Rear | 1 | $7.30 | Out of Stock | Notify Me |
| 32 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 2 | $2.46 | Available to order | 2 |
| 34 | T3020033 Grommet; 12 x 2 x 9.6 | Grommet; 12 x 2 x 9.6 | 1 | $4.45 | Available to order | 1 |
| 35 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 36 | T2100206 Cover, Water Outlet | Cover, Water Outlet | 1 | $50.37 | Available to order | 1 |
| 37 | T2100675 Thermostat | Thermostat | 1 | $68.42 | Available to order | 1 |
| 38 | T2100201 Seal, Thermostat | Seal, Thermostat | 1 | $7.14 | Available to order | 1 |
| 40 | T2102000 Expansion Tank | Expansion Tank * Part No Longer Available * | 1 | $66.63 | Obsolete | View Details |
| 41 | T2101015 Cap, Expansion Tank | Cap, Expansion Tank | 1 | $2.00 | Available to order | 1 |
| 42 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 1 | $5.30 | Available to order | 1 |
| 43 | T3350012 Locknut, Flgd, M6, Black, Zinc | Locknut, Flgd, M6, Black, Zinc | 1 | $1.13 | Available to order | 1 |
| 44 | T3021200 Grommet, Dia 14x4, Panel | Grommet, Dia 14x4, Panel | 1 | $3.17 | Available to order | 1 |
| 45 | T2100405 Elbow, ID 8.0 Tube | Elbow, ID 8.0 Tube | 1 | $1.40 | Available to order | 1 |
| 46 | T3010059 Flanged Sleeve, M6 x 9 x 3.2 | Flanged Sleeve, M6 x 9 x 3.2 | 2 | $2.74 | Available to order | 2 |
| 47 | T3620472 Pipe, Coolant,O/D 10 x 72mm | Pipe, Coolant,O/D 10 x 72mm | 1 | $1.40 | Available to order | 1 |
| 48 | T3450035 Grommet, Dia 8, Dia 12.5, 3 | Grommet, Dia 8, Dia 12.5, 3 | 1 | $2.10 | Available to order | 1 |
| 49 | T2100406 Elbow, Breather, Black | Elbow, Breather, Black | 1 | $1.62 | Available to order | 1 |
| 50 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long 370 long | 1 | $0.95 | Available to order | 1 |
| 51 | T3200444 Bolt, M6 x 10 | Bolt, M6 x 10 | 1 | $12.16 | Available to order | 1 |
| 52 | T3551111 Copper Washer, M6 x 12 | Copper Washer, M6 x 12 | 1 | $2.48 | Available to order | 1 |
