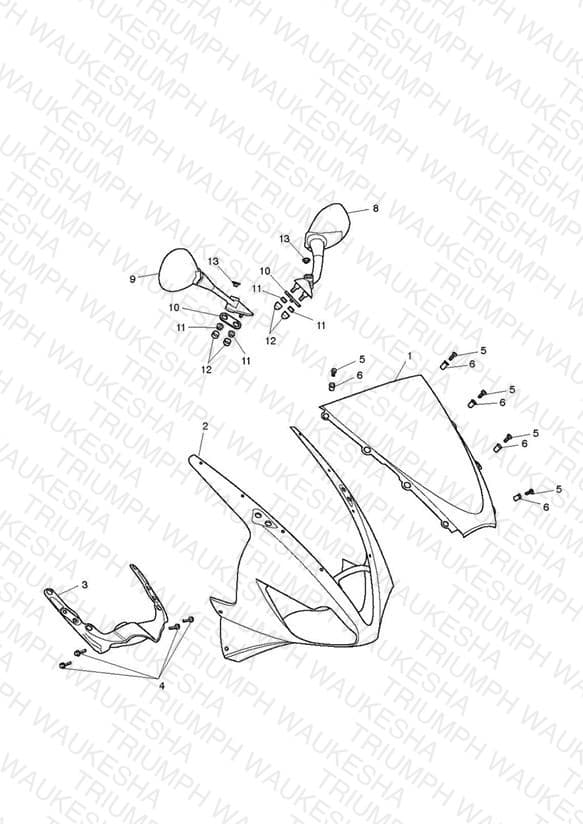

Bodywork - Cockpit
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2307514 Screen | Screen | 1 | $236.36 | Obsolete | View Details |
| 2 | T2307565-CM Cockpit Fairing | Cockpit Fairing Tornado Red | 1 | $861.12 | Available to order | 1 |
| 2 | T2307565-FG Cockpit Pairing | Cockpit Pairing Scorched Yellow > 317417 | 1 | $861.12 | Available to order | 1 |
| 2 | T2307565-LC Cockpit Fairing | Cockpit Fairing Graphite > 317417 | 1 | $698.06 | Available to order | 1 |
| 2 | T2307565-PG Cockpit Fairing | Cockpit Fairing Jet Black - 317418 > | 1 | $861.12 | Available to order | 1 |
| 2 | T2307565-JO Cockpit Fairing | Cockpit Fairing Neon Blue - 317418 > | 1 | $564.65 | Obsolete | View Details |
| 2 | T2307565-PR Cockpit Fairing | Cockpit Fairing Phantom Blk Special Edition | 1 | $630.49 | Obsolete | View Details |
| 3 | T2307555 Subframe, Front | Subframe, Front | 1 | $234.31 | Available to order | 1 |
| 4 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 4 | $4.84 | Available to order | 4 |
| 5 | T3330646 Screw, Phillips, M5 x 16, Plastic | Screw, Phillips, M5 x 16, Plastic | 8 | $1.36 | Backorder — Mid November 2026 | 8 |
| 6 | T3350050 Wellnut, M5 | Wellnut, M5 | 8 | $7.08 | Available to order | 8 |
| 8 | T2060056 Mirror Assy, LH | Mirror Assy, LH | 1 | $124.81 | Available to order | 1 |
| 9 | T2060057 Mirror Assy, RH | Mirror Assy, RH | 1 | $124.81 | Available to order | 1 |
| 10 | T2060032 Rubber Gasket | Rubber Gasket | 2 | $5.47 | Available to order | 2 |
| 11 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 4 | $0.71 | Available to order | 4 |
| 12 | T3450124 Cap | Cap | 4 | $5.97 | Available to order | 4 |
| 13 | T3450195 Plug, M8, Black | Plug, M8, Black | 2 | $0.81 | Available to order | 2 |
