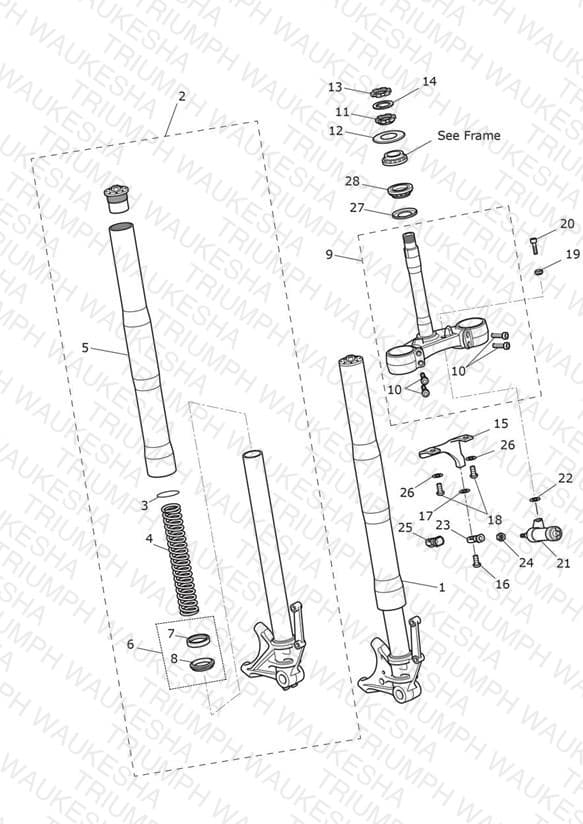

Front Forks & Yokes - Daytona 675R Only
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2041421 Stanchion Assy, LH | Stanchion Assy, LH > 541998 | 1 | $3027.86 | Available to order | 1 |
| 1 | T2041423 Stanchion Assy, LH | Stanchion Assy, LH 541999 > | 1 | $3027.86 | Out of Stock | Notify Me |
| 2 | T2041422 Stanchion Assy, RH | Stanchion Assy, RH > 541998 | 1 | $2110.01 | Obsolete | View Details |
| 2 | T2041430 Stanchions Spares Kit | Stanchions Spares Kit 541999 > | 1 | $5736.60 | Out of Stock | Notify Me |
| 3 | T2040691 O-Ring, Top Cap | O-Ring, Top Cap | 2 | $10.81 | Available to order | 2 |
| 4 | T2040692 Spring, Fork, 9.5Nm | Spring, Fork, 9.5Nm | 2 | $226.22 | Available to order | 2 |
| 5 | T2040697 Assy, Tube, Outer | Assy, Tube, Outer > 541998 | 2 | $1241.15 | Backorder — Late August 2026 | 2 |
| 5 | T2041458 Assy, Tube, Outer | Assy, Tube, Outer 541999 > | 2 | $2358.93 | Out of Stock | Notify Me |
| 6 | T2041072 Seal Kit, Front Forks | Seal Kit, Front Forks | 2 | $77.97 | Available to order | 2 |
| 7 | T2040683 Oil Seal | Oil Seal | 2 | $42.32 | Available to order | 2 |
| 8 | T2041074 Dust Seal | Dust Seal | 2 | $35.62 | Available to order | 2 |
| 9 | T2040598 Lower Yoke Assy | Lower Yoke Assy PART NO LONGER AVAILABLE | 1 | $322.26 | Obsolete | View Details |
| 10 | T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv | Screw, Cap/Hd, M8 x 1.25 x 35, Slv | 4 | $4.74 | Available to order | 4 |
| 11 | T2040301 Adjuster Nut, M30, Lower | Adjuster Nut, M30, Lower | 1 | $28.50 | Available to order | 1 |
| 12 | T2046559 Cover, Headstock Bearing | Cover, Headstock Bearing | 1 | $10.18 | Available to order | 1 |
| 13 | T2040304 Locknut, M30 | Locknut, M30 | 1 | $20.60 | Available to order | 1 |
| 14 | T2044183 Washer, Headstock | Washer, Headstock | 1 | $8.30 | Available to order | 1 |
| 15 | T2044175 Bracket, Steering Damper | Bracket, Steering Damper | 1 | $61.79 | Available to order | 1 |
| 16 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 1 | $3.50 | Available to order | 1 |
| 17 | T3550277 Washer, M8 | Washer, M8 | 1 | $1.06 | Available to order | 1 |
| 18 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 2 | $2.10 | Available to order | 2 |
| 19 | T2044185 Spherical Bearing, 8mm | Spherical Bearing, 8mm | 1 | $35.28 | Available to order | 1 |
| 20 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 1 | $4.12 | Available to order | 1 |
| 21 | T2044182 Steering Damper | Steering Damper | 1 | $334.47 | Available to order | 1 |
| 22 | T3010077 Flanged Sleeve, M8 x 11.2 x 2.2 | Flanged Sleeve, M8 x 11.2 x 2.2 | 1 | $3.70 | Available to order | 1 |
| 23 | T2044190 Rod End, Female M8 | Rod End, Female M8 | 1 | $63.70 | Available to order | 1 |
| 24 | T3350303 Nut, M8, Silver | Nut, M8, Silver | 1 | $0.81 | Backorder — Early August 2026 | 1 |
| 25 | T2044195 Boot, M8 Rod End | Boot, M8 Rod End | 1 | $6.94 | Available to order | 1 |
| 26 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 2 | $1.40 | Available to order | 2 |
| 27 | T3600234 Dust Seal, Dia 55 | Dust Seal, Dia 55 | 1 | $8.34 | Available to order | 1 |
| 28 | T3800091 Bearing, Sac | Bearing, Sac | 1 | $33.95 | Available to order | 1 |
