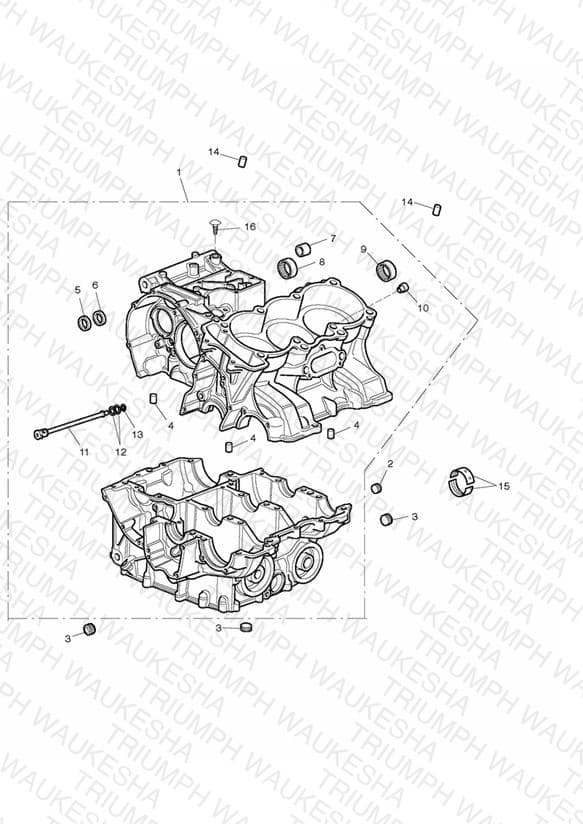

Crankcase & Fittings
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1162152 Kit, Crankcase Assembly, Black | Kit, Crankcase Assembly, Black Black | 1 | $2851.81 | Backorder — Late August 2026 | 1 |
| 2 | T3450091 Plug, Dia 14, Alum | Plug, Dia 14, Alum | 1 | $2.48 | Available to order | 1 |
| 3 | T3450005 Plug, NPSI 3/8 Dryseal | Plug, NPSI 3/8 Dryseal | 3 | $6.65 | Available to order | 3 |
| 4 | T3000102 Dowel, Hollow, 10 x 14 | Dowel, Hollow, 10 x 14 | 3 | $1.79 | Available to order | 3 |
| 5 | T3800108 Bearing, Ball, 15 x 24 x 5 | Bearing, Ball, 15 x 24 x 5 | 1 | $18.99 | Available to order | 1 |
| 6 | T3600088 Seal, Oil, 14 x 22 x 4.5 | Seal, Oil, 14 x 22 x 4.5 | 1 | $6.39 | Available to order | 1 |
| 7 | T3800064 Bearing Needle 12 x 18 x 16 | Bearing Needle 12 x 18 x 16 | 1 | $16.93 | Available to order | 1 |
| 8 | T3802512 Bearing, Needle | Bearing, Needle | 1 | $11.22 | Available to order | 1 |
| 9 | T3800069 Bearing, Needle Roller | Bearing, Needle Roller | 1 | $125.46 | Available to order | 1 |
| 10 | T1210122 Sleeve, Oil Jet, Alternator | Sleeve, Oil Jet, Alternator | 1 | $5.42 | Backorder — Late August 2026 | 1 |
| 11 | T1210177 Pipe, Oil Feed, Gearbox | Pipe, Oil Feed, Gearbox | 1 | $30.09 | Backorder — Late August 2026 | 1 |
| 12 | T3600143 O Ring, ID 9.1 x 1.6, Viton | O Ring, ID 9.1 x 1.6, Viton | 1 | $2.10 | Available to order | 1 |
| 12A | T3600252 O Ring, 10.1 Dia x 1.6 | O Ring, 10.1 Dia x 1.6 | 1 | $2.85 | Available to order | 1 |
| 13 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 1 | $5.30 | Available to order | 1 |
| 14 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 2 | $3.90 | Available to order | 2 |
| 15 | T1160321 Main Bearing Shell | Main Bearing Shell White | — | $13.18 | Available to order | 1 |
| 15 | T1160323 Main Bearing Shell | Main Bearing Shell Blue | — | $13.18 | Available to order | 1 |
| 15 | T1160322 Main Bearing Shell | Main Bearing Shell Red | — | $13.18 | Available to order | 1 |
| 15 | T1160324 Main Bearing Shell | Main Bearing Shell Green | — | $13.18 | Available to order | 1 |
