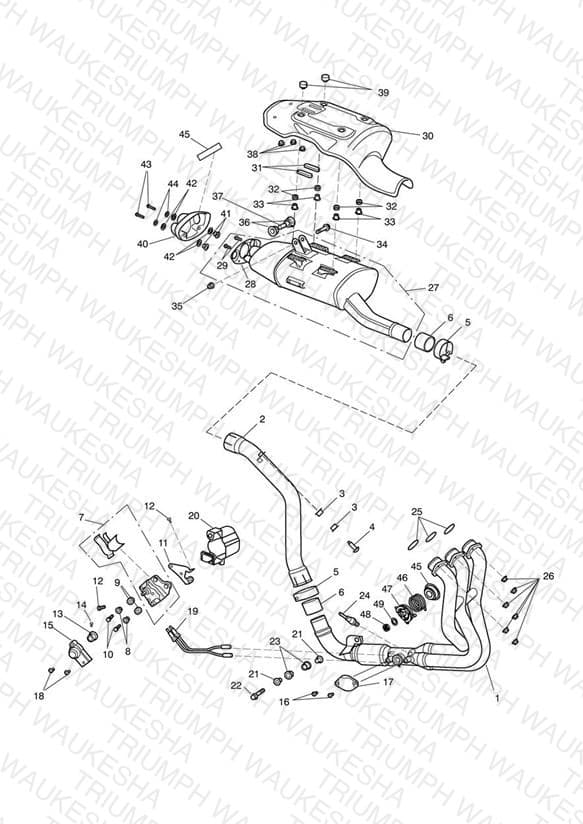

Exhaust System
Parts (52)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2202675 Spares Kit, Slotted Header | Spares Kit, Slotted Header > 443581 & > 445378 Special Edition | 1 | $1115.10 | Available to order | 1 |
| 1 | T2204250 Primary Header Pipe Assy | Primary Header Pipe Assy ** Part No Longer Available ** 443582 > & 445379 > Special Edition | 1 | $1153.04 | Obsolete | View Details |
| 2 | T2203710 Secondary Header Pipe Assy | Secondary Header Pipe Assy | 1 | $184.91 | Out of Stock | Notify Me |
| 3 | T3020482 Bush, Rubber | Bush, Rubber | 2 | $3.37 | Available to order | 2 |
| 4 | T2218053 Bolt, Third Mount | Bolt, Third Mount | 1 | $9.82 | Available to order | 1 |
| 5 | T2206078 Clamp, Exhaust, Dia 52-54mm | Clamp, Exhaust, Dia 52-54mm | 2 | $21.67 | Available to order | 2 |
| 6 | T2202115 Gasket, Exhaust Header | Gasket, Exhaust Header | 2 | $13.46 | Available to order | 2 |
| 7 | T2203379 Kit, EXBV, Actuator | Kit, EXBV, Actuator > 494488 - PART NO LONGER AVAILABLE | 1 | $229.78 | Obsolete | View Details |
| 7 | T2203885 Actuator, Exhaust Valve | Actuator, Exhaust Valve 494489 > | 1 | $228.82 | Available to order | 1 |
| 8 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 2 | $6.15 | Available to order | 2 |
| 9 | T3020050 Grommet | Grommet | 2 | $5.47 | Available to order | 2 |
| 10 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 2 | $2.24 | Available to order | 2 |
| 11 | T2203894 Actuator BRKT, Exhaust Valve | Actuator BRKT, Exhaust Valve | 1 | $12.22 | Available to order | 1 |
| 12 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.50 | Available to order | 2 |
| 13 | T2203889 Pulley Wheel, ex Valve Actuator | Pulley Wheel, ex Valve Actuator | 1 | $33.47 | Available to order | 1 |
| 14 | T3331865 Screw, Skt Csk, M5 x 10, Slv, Enc | Screw, Skt Csk, M5 x 10, Slv, Enc | 1 | $6.04 | Available to order | 1 |
| 15 | T2203893 Cover, Exhaust Valve Actuator | Cover, Exhaust Valve Actuator | 1 | $9.91 | Available to order | 1 |
| 16 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 2 | $1.04 | Available to order | 2 |
| 17 | T2203891 Cover, Exhaust Valve | Cover, Exhaust Valve | 1 | $15.76 | Available to order | 1 |
| 18 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 2 | $1.61 | Available to order | 2 |
| 19 | T2203378 Kit, EXBV Cables | Kit, EXBV Cables > 494488 | 1 | $59.95 | Obsolete | View Details |
| 19 | T2203377 Cables, Ex Valve Actuator | Cables, Ex Valve Actuator 494489 > - PART NO LONGER AVAILABLE | 1 | $87.56 | Obsolete | View Details |
| 20 | T2203899 Actuator Boot | Actuator Boot | 1 | $9.60 | Available to order | 1 |
| 21 | T3010708 Flanged Sleeve, 8.4 x 12 x 12.5 | Flanged Sleeve, 8.4 x 12 x 12.5 | 2 | $2.63 | Backorder — Early October 2026 | 2 |
| 22 | T3205109 Bolt, HHF, Lghtd, M8 x 45, Slv | Bolt, HHF, Lghtd, M8 x 45, Slv | 1 | $5.45 | Available to order | 1 |
| 23 | T2200387 Bush, Rubber | Bush, Rubber | 2 | $5.47 | Available to order | 2 |
| 24 | T2204191 Oxygen Sensor Spares Kit | Oxygen Sensor Spares Kit | 1 | $210.95 | Available to order | 1 |
| 25 | T2200854 Header Gasket | Header Gasket | 3 | $7.79 | Available to order | 3 |
| 26 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 6 | $2.61 | Available to order | 6 |
| 27 | T2203848 Silencer, Under Seat, Lightened | Silencer, Under Seat, Lightened | 1 | $609.11 | Obsolete | View Details |
| 28 | T2203858 Heat Shield, Intermediate | Heat Shield, Intermediate | 1 | $62.52 | Out of Stock | Notify Me |
| 29 | T3330216 Bolt, Hex HD Flgd, M6 x 12 | Bolt, Hex HD Flgd, M6 x 12 | 2 | $2.39 | Out of Stock | Notify Me |
| 30 | T2203852 Heatshield, Silencer | Heatshield, Silencer | 1 | $89.57 | Available to order | 1 |
| 31 | T3020390 Rubber Grommet | Rubber Grommet | 2 | $3.54 | Backorder — Early October 2026 | 2 |
| 32 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 4 | $2.24 | Backorder — Early October 2026 | 4 |
| 33 | T3010144 Flanged Sleeve, M6 x 9.5 x 10.5 | Flanged Sleeve, M6 x 9.5 x 10.5 | 4 | $4.01 | Available to order | 4 |
| 36 | T2200622 Bush, Rubber, M8 | Bush, Rubber, M8 | 2 | $2.40 | Available to order | 2 |
| 37 | T2203853 Compression Limiter Tube | Compression Limiter Tube PART NO LONGER AVAILABLE | 1 | $4.74 | Obsolete | View Details |
| 38 | T3020162 Rubber Foot, Dia 14x6 | Rubber Foot, Dia 14x6 | 3 | $2.40 | Available to order | 3 |
| 39 | T3020175 Rubber Foot, Push In | Rubber Foot, Push In | 2 | $12.22 | Available to order | 2 |
| 40 | T2203849-MJ Tail Piece, Silver | Tail Piece, Silver > 498020 | 1 | $200.97 | Available to order | 1 |
| 40 | T2203875 Tail Piece, Carbon Fibre | Tail Piece, Carbon Fibre Special Edition 2 | 1 | $87.45 | Obsolete | View Details |
| 40 | T2203855 Moulding, Tail Pipe | Moulding, Tail Pipe Daytona 675R & 498021 > | 1 | $97.02 | Available to order | 1 |
| 42 | T3550149 Silicon Washer, M10 | Silicon Washer, M10 | 4 | $1.61 | Available to order | 4 |
| 43 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv > 461400 | 2 | $4.84 | Available to order | 2 |
| 44 | T3550957 Washer. M6 x 13 | Washer. M6 x 13 > 461400 | 2 | $2.04 | Available to order | 2 |
| 44 | T3550962 Washer, M6 x 13 x 1 | Washer, M6 x 13 x 1 461401 > | 2 | $2.04 | Available to order | 2 |
| 45 | T2203886 Washer, Exhaust Valve | Washer, Exhaust Valve | 1 | $12.84 | Available to order | 1 |
| 46 | T2203887 Spring, Header Exhaust Valve | Spring, Header Exhaust Valve | 1 | $18.74 | Available to order | 1 |
| 47 | T2203888 Pully Wheel, Exhaust Valve | Pully Wheel, Exhaust Valve | 1 | $23.67 | Available to order | 1 |
| 48 | T3350175 Nut, M8 x 1.25, Thin, S/S | Nut, M8 x 1.25, Thin, S/S | 1 | $5.97 | Available to order | 1 |
| 49 | T2203890 Tab Washer, Exhaust Valve | Tab Washer, Exhaust Valve | 1 | $2.71 | Available to order | 1 |
