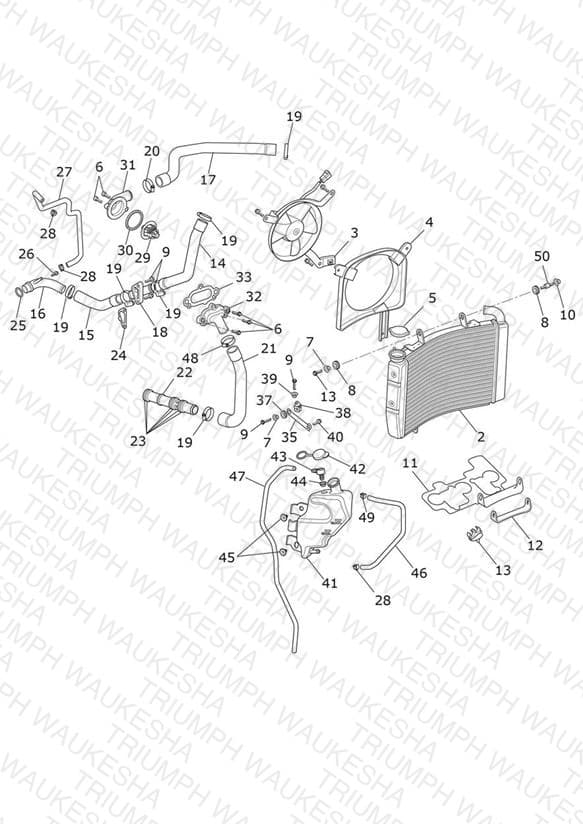

Cooling system
Parts (48)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | T2100445 Radiator | Radiator | 1 | $845.19 | Available to order | 1 |
| 3 | T2100446 Fan Assembly | Fan Assembly | 1 | $431.28 | Available to order | 1 |
| 4 | T2100447 Fan Cowl | Fan Cowl | 1 | $378.49 | Available to order | 1 |
| 5 | T2100081 Cap Assy, Radiator | Cap Assy, Radiator | 1 | $13.51 | Available to order | 1 |
| 6 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 5 | $4.55 | Available to order | 5 |
| 7 | T3010706 Flanged Sleeve, 5.2 x 7 x 6.3 | Flanged Sleeve, 5.2 x 7 x 6.3 | 2 | $5.30 | Available to order | 2 |
| 8 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 2 | $1.91 | Available to order | 2 |
| 9 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 4 | $2.46 | Available to order | 4 |
| 10 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 1 | $4.12 | Available to order | 1 |
| 11 | T2106008 Air Deflector | Air Deflector | 1 | $61.79 | Out of Stock | Notify Me |
| 12 | T2106003 Air Deflector Retainer Bracket | Air Deflector Retainer Bracket | 1 | $3.33 | Out of Stock | Notify Me |
| 13 | T3205600 Bolt, HHF, Lghtd, M6 x 35, 10.9 | Bolt, HHF, Lghtd, M6 x 35, 10.9 | 1 | $1.63 | Available to order | 1 |
| 14 | T2100436 Hose, Radiator to T-Piece | Hose, Radiator to T-Piece | 1 | $28.27 | Available to order | 1 |
| 15 | T2100437 Hose, T-Piece to Pump | Hose, T-Piece to Pump | 1 | $28.27 | Available to order | 1 |
| 16 | T2107012 Pipe, Water Pump Inlet | Pipe, Water Pump Inlet | 1 | $42.57 | Available to order | 1 |
| 17 | T2101765 Hose, Water, Head to Rad | Hose, Water, Head to Rad | 1 | $35.38 | Available to order | 1 |
| 18 | T2100434 T-Piece, Water | T-Piece, Water | 1 | $30.23 | Available to order | 1 |
| 19 | T3706214 Clamp, Constant Tension, Dia 29 | Clamp, Constant Tension, Dia 29 | 6 | $13.99 | Available to order | 6 |
| 20 | T3706216 Clamp, Constant Tension, Dia 32 | Clamp, Constant Tension, Dia 32 | 1 | $13.99 | Available to order | 1 |
| 21 | T2100425 Hose, Formed, Water Pump Outlet | Hose, Formed, Water Pump Outlet | 1 | $28.34 | Available to order | 1 |
| 22 | T2100426 Pipe, Water, Pump Outlet | Pipe, Water, Pump Outlet | 1 | $46.11 | Available to order | 1 |
| 23 | T3600290 O Ring, 23.7 x 2 | O Ring, 23.7 x 2 | 6 | $1.40 | Available to order | 6 |
| 24 | T2100435 Gasket, T-Piece, Water | Gasket, T-Piece, Water | 1 | $3.50 | Available to order | 1 |
| 25 | T3600124 O Ring, ID 21.5 x 3 | O Ring, ID 21.5 x 3 | 1 | $3.39 | Available to order | 1 |
| 26 | T3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc | Bolt, RHHF, Domed, S/S, M6 x 16, Enc | 1 | $4.01 | Out of Stock | Notify Me |
| 27 | T2100408 Hose, Bypass, Water | Hose, Bypass, Water | 1 | $13.33 | Available to order | 1 |
| 28 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 3 | $5.42 | Available to order | 3 |
| 29 | T2100675 Thermostat | Thermostat | 1 | $68.42 | Available to order | 1 |
| 30 | T2100201 Seal, Thermostat | Seal, Thermostat | 1 | $7.14 | Available to order | 1 |
| 31 | T2100206 Cover, Water Outlet | Cover, Water Outlet | 1 | $50.37 | Available to order | 1 |
| 32 | T2104020 Cover, Water Inlet | Cover, Water Inlet | 1 | $34.22 | Available to order | 1 |
| 33 | T2102800 Gasket, Water Inlet | Gasket, Water Inlet | 1 | $3.70 | Available to order | 1 |
| 35 | T2100494 Bracket, Lower Mount, Rad | Bracket, Lower Mount, Rad | 1 | $14.58 | Available to order | 1 |
| 37 | T3020033 Grommet; 12 x 2 x 9.6 | Grommet; 12 x 2 x 9.6 | 1 | $4.45 | Available to order | 1 |
| 38 | T2100492 Bracket, Radiator, Lower, Rear | Bracket, Radiator, Lower, Rear | 1 | $16.15 | Available to order | 1 |
| 39 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 1 | $5.78 | Available to order | 1 |
| 40 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 41 | T2102050 Expansion Tank | Expansion Tank | 1 | $77.01 | Available to order | 1 |
| 42 | T2101015 Cap, Expansion Tank | Cap, Expansion Tank | 1 | $2.00 | Available to order | 1 |
| 43 | T2100433 Elbow, Overflow, Quickfit | Elbow, Overflow, Quickfit | 1 | $6.83 | Available to order | 1 |
| 44 | T3450141 Grommet, TPE, Quickfit | Grommet, TPE, Quickfit | 1 | $2.17 | Available to order | 1 |
| 45 | T3330858 Bolt, But/Hd, M6 x 15, Shld, Slv | Bolt, But/Hd, M6 x 15, Shld, Slv | 2 | $2.55 | Available to order | 2 |
| 46 | T2102060 Hose, Expansion Tank to Rad | Hose, Expansion Tank to Rad | 1 | $39.06 | Available to order | 1 |
| 47 | T2102070 Hose, Expansion Tank Overflow | Hose, Expansion Tank Overflow | 1 | $44.40 | Available to order | 1 |
| 48 | T3706215 Clamp, Constant Tension, Dia 30 | Clamp, Constant Tension, Dia 30 | 1 | $13.99 | Available to order | 1 |
| 49 | T3700077 Clip, 10.5 Rer Oetiker | Clip, 10.5 Rer Oetiker | 1 | $4.01 | Available to order | 1 |
