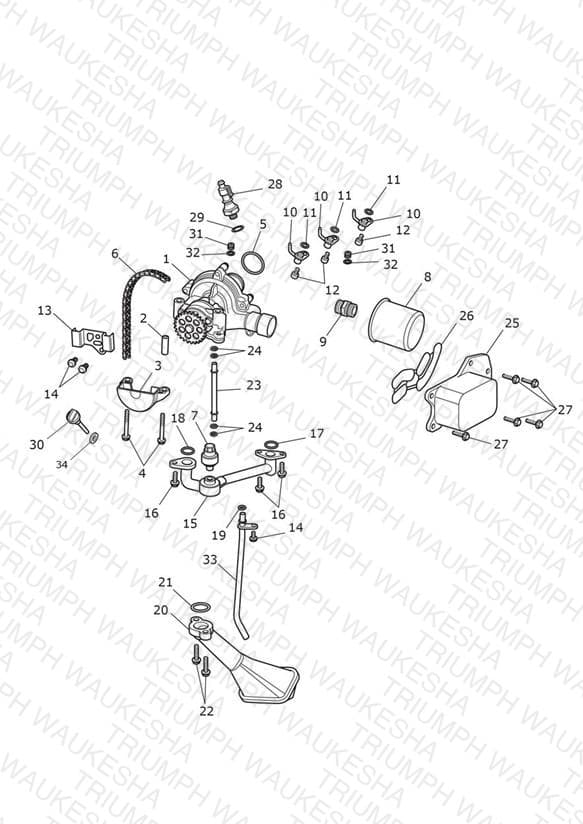

Oil Pump Drive
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1211283 Pump Assembly, Oil & Water | Pump Assembly, Oil & Water | 1 | $318.60 | Out of Stock | Notify Me |
| 2 | T3000034 Dowel, Hollow, Split Dia 8 x 30 | Dowel, Hollow, Split Dia 8 x 30 | 1 | $3.50 | Available to order | 1 |
| 3 | T1210123 Aux Drive Chain Guard | Aux Drive Chain Guard | 1 | $11.41 | Available to order | 1 |
| 4 | T3200123 Bolt, RHHF, M6 x 50, Encaps | Bolt, RHHF, M6 x 50, Encaps | 2 | $3.17 | Available to order | 2 |
| 5 | T3600127 O Ring, 31.6x2.4 | O Ring, 31.6x2.4 | 1 | $3.50 | Available to order | 1 |
| 6 | T1219200 Chain, 6.35 Pitch, 76 Link | Chain, 6.35 Pitch, 76 Link | 1 | $59.88 | Available to order | 1 |
| 7 | T1210060 Relief valve | Relief valve | 1 | $29.75 | Out of Stock | Notify Me |
| 8 | T1218001 Oil Filter, OES | Oil Filter, OES | 1 | $17.96 | Available to order | 1 |
| 8 | T1210440 Oil Filter Multipack (24) | Oil Filter Multipack (24) | 1 | $379.33 | Available to order | 1 |
| 8 | T1210443 Oil Filter Multipack (80) | Oil Filter Multipack (80) | 1 | $1197.37 | Available to order | 1 |
| 9 | T1210438 Oil Filter Adaptor | Oil Filter Adaptor | 1 | $12.29 | Available to order | 1 |
| 10 | T1219001 Spray Jet, Oil Piston | Spray Jet, Oil Piston | 3 | $18.80 | Out of Stock | Notify Me |
| 11 | T3600176 O Ring, 6.1 x 1.6 | O Ring, 6.1 x 1.6 | 3 | $2.95 | Available to order | 3 |
| 12 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 3 | $1.27 | Available to order | 3 |
| 13 | T1210023 Retainer Plate, Aux Drive Chain | Retainer Plate, Aux Drive Chain | 1 | $10.90 | Available to order | 1 |
| 14 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 3 | $1.40 | Available to order | 3 |
| 15 | T1210765 Oil Feed Pipe | Oil Feed Pipe | 1 | $89.46 | Out of Stock | Notify Me |
| 16 | T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 3 | $5.60 | Available to order | 3 |
| 17 | T3600191 O Ring, 16 x 2 | O Ring, 16 x 2 | 1 | $3.77 | Available to order | 1 |
| 18 | T3600132 O Ring 20 x 2.62 | O Ring 20 x 2.62 | 1 | $4.19 | Available to order | 1 |
| 19 | T3600153 O Ring, 7.6 x 2.4 | O Ring, 7.6 x 2.4 | 1 | $2.00 | Available to order | 1 |
| 20 | T1210282 Oil, Pick-Up | Oil, Pick-Up | 1 | $38.50 | Available to order | 1 |
| 21 | T3600106 O-Ring, 24 x 2.5 | O-Ring, 24 x 2.5 | 1 | $1.51 | Available to order | 1 |
| 22 | T3200134 Bolt, RHHF, M6x25, Encaps | Bolt, RHHF, M6x25, Encaps | 2 | $2.74 | Out of Stock | Notify Me |
| 23 | T1210249 Pump Drain Tube | Pump Drain Tube | 1 | $5.98 | Available to order | 1 |
| 24 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 4 | $5.30 | Available to order | 4 |
| 25 | T1210623 Heat Exchanger, Oil/Water, alu | Heat Exchanger, Oil/Water, alu | 1 | $413.67 | Available to order | 1 |
| 26 | T1210625 Sealing Ring, Heat Exchanger | Sealing Ring, Heat Exchanger | 1 | $51.31 | Available to order | 1 |
| 27 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 1 | $5.30 | Available to order | 1 |
| 28 | T1210091 Oil Pressure Switch, M10 | Oil Pressure Switch, M10 | 1 | $50.37 | Available to order | 1 |
| 29 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 1 | $0.89 | Available to order | 1 |
| 30 | T1210304 Dipstick, Oil Level | Dipstick, Oil Level | 1 | $20.81 | Available to order | 1 |
| 31 | T1210000 Restrictor, Oil, Gearbox | Restrictor, Oil, Gearbox | 2 | $6.45 | Available to order | 2 |
| 32 | T3600126 O Ring, ID 7.1 x 1.6 | O Ring, ID 7.1 x 1.6 | 2 | $3.04 | Available to order | 2 |
| 33 | T1210283 Oil Pipe, Breather Drain | Oil Pipe, Breather Drain | 1 | $12.38 | Available to order | 1 |
| 34 | T1210278 O Ring, Dipstick, Oil | O Ring, Dipstick, Oil | 1 | $2.95 | Available to order | 1 |
