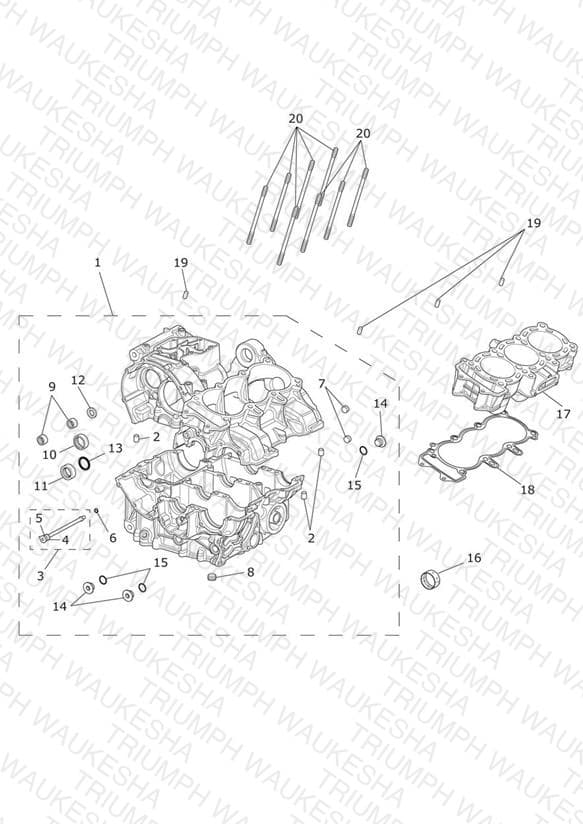

Crankcase & Fittings
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1160522 Crankcase Assy Spares Kit | Crankcase Assy Spares Kit Black | 1 | $2870.00 | Available to order | 1 |
| 2 | T3000102 Dowel, Hollow, 10 x 14 | Dowel, Hollow, 10 x 14 | 3 | $1.79 | Available to order | 3 |
| 3 | T1210177 Pipe, Oil Feed, Gearbox | Pipe, Oil Feed, Gearbox | 1 | $30.09 | Backorder — Late August 2026 | 1 |
| 4 | T3600143 O Ring, ID 9.1 x 1.6, Viton | O Ring, ID 9.1 x 1.6, Viton | 1 | $2.10 | Available to order | 1 |
| 5 | T3600252 O Ring, 10.1 Dia x 1.6 | O Ring, 10.1 Dia x 1.6 | 1 | $2.85 | Available to order | 1 |
| 6 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 2 | $5.30 | Available to order | 2 |
| 7 | T3450091 Plug, Dia 14, Alum | Plug, Dia 14, Alum | 2 | $2.48 | Available to order | 2 |
| 8 | T3450000 Plug, PTF-SAE Short, 3/8-18, Enc | Plug, PTF-SAE Short, 3/8-18, Enc | 1 | $6.65 | Available to order | 1 |
| 9 | T3800001 Bearing, Needle, 20 x 14 x 12 | Bearing, Needle, 20 x 14 x 12 | 2 | $8.60 | Available to order | 2 |
| 10 | T3802512 Bearing, Needle | Bearing, Needle | 1 | $11.22 | Available to order | 1 |
| 11 | T3800069 Bearing, Needle Roller | Bearing, Needle Roller | 1 | $125.46 | Available to order | 1 |
| 12 | T3600088 Seal, Oil, 14 x 22 x 4.5 | Seal, Oil, 14 x 22 x 4.5 | 1 | $6.39 | Available to order | 1 |
| 13 | T1180101 Washer, Restrictor, Gearbox | Washer, Restrictor, Gearbox | 1 | $8.46 | Available to order | 1 |
| 14 | T3450119 Plug, Face Seal, M16 x 1.5 | Plug, Face Seal, M16 x 1.5 | 3 | $6.83 | Available to order | 3 |
| 15 | T3600191 O Ring, 16 x 2 | O Ring, 16 x 2 | 3 | $3.77 | Available to order | 3 |
| 16 | T1163101 Main Bearing Shell | Main Bearing Shell White | — | $14.66 | Available to order | 1 |
| 16 | T1163102 Main Bearing Shell | Main Bearing Shell Red | — | $14.66 | Available to order | 1 |
| 16 | T1163103 Main Bearing Shell | Main Bearing Shell Blue | — | $14.66 | Available to order | 1 |
| 17 | T1169010 Barrell, Dia 78 | Barrell, Dia 78 | 1 | $2077.73 | Out of Stock | Notify Me |
| 18 | T1160978 Crankcase Gasket, Base | Crankcase Gasket, Base | 1 | $21.66 | Available to order | 1 |
| 19 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 4 | $3.90 | Available to order | 4 |
| 20 | T1160982 Stud, Cylinder Head, M9 | Stud, Cylinder Head, M9 | 8 | $10.55 | Available to order | 8 |
