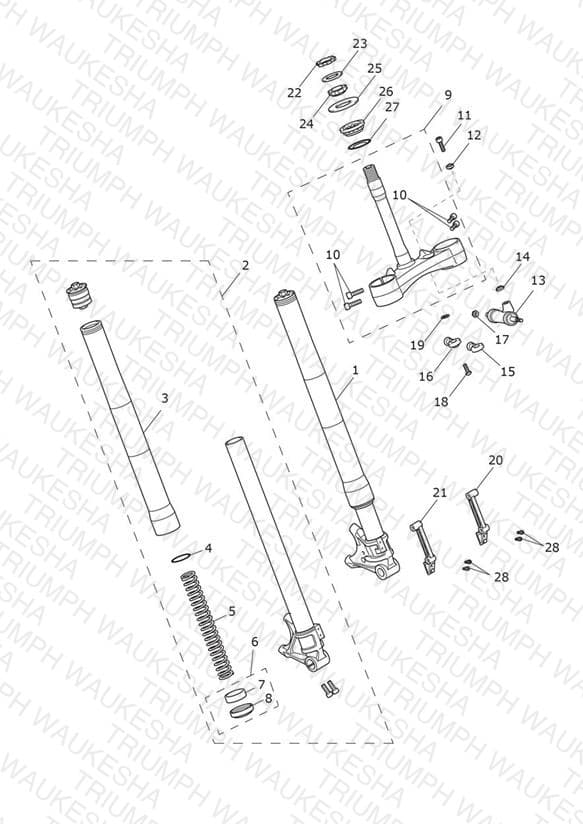

Front Forks & Yokes
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2042988 Fork Leg Assy, LH | Fork Leg Assy, LH | 1 | $3141.10 | Available to order | 1 |
| 2 | T2042987 Fork Leg Assy, RH | Fork Leg Assy, RH | 1 | $2968.50 | Available to order | 1 |
| 3 | T2046850 Outer tube Assembly | Outer tube Assembly | 2 | $1241.04 | Out of Stock | Notify Me |
| 4 | T2040691 O-Ring, Top Cap | O-Ring, Top Cap | 2 | $10.81 | Available to order | 2 |
| 5 | T2040692 Spring, Fork, 9.5Nm | Spring, Fork, 9.5Nm | 2 | $226.22 | Available to order | 2 |
| 6 | T2041072 Seal Kit, Front Forks | Seal Kit, Front Forks | 2 | $77.97 | Available to order | 2 |
| 7 | T2040683 Oil Seal | Oil Seal | 2 | $42.32 | Available to order | 2 |
| 8 | T2041074 Dust Seal | Dust Seal | 2 | $35.62 | Available to order | 2 |
| 9 | T2046835 Lower Yoke Assembly | Lower Yoke Assembly | 1 | $422.46 | Available to order | 1 |
| 10 | T3050323 Screw, Cap/Hd, M8 x 30, Slv | Screw, Cap/Hd, M8 x 30, Slv | 4 | $4.74 | Available to order | 4 |
| 11 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 1 | $4.12 | Available to order | 1 |
| 12 | T2044185 Spherical Bearing, 8mm | Spherical Bearing, 8mm | 1 | $35.28 | Available to order | 1 |
| 13 | T2044280 Steering Damper | Steering Damper | 1 | $341.51 | Available to order | 1 |
| 14 | T3010077 Flanged Sleeve, M8 x 11.2 x 2.2 | Flanged Sleeve, M8 x 11.2 x 2.2 | 1 | $3.70 | Available to order | 1 |
| 15 | T2044190 Rod End, Female M8 | Rod End, Female M8 | 1 | $63.70 | Available to order | 1 |
| 16 | T2044195 Boot, M8 Rod End | Boot, M8 Rod End | 1 | $6.94 | Available to order | 1 |
| 17 | T3350175 Nut, M8 x 1.25, Thin, S/S | Nut, M8 x 1.25, Thin, S/S | 1 | $5.60 | Available to order | 1 |
| 18 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 1 | $3.50 | Available to order | 1 |
| 19 | T3550277 Washer, M8 | Washer, M8 | 1 | $1.06 | Available to order | 1 |
| 20 | T2042628 Mudguard Support, LH | Mudguard Support, LH | 1 | $53.13 | Out of Stock | Notify Me |
| 21 | T2042627 Mudguard Support, RH | Mudguard Support, RH | 1 | $53.13 | Out of Stock | Notify Me |
| 22 | T2040304 Locknut, M30 | Locknut, M30 | 1 | $20.60 | Available to order | 1 |
| 23 | T2044183 Washer, Headstock | Washer, Headstock | 1 | $8.30 | Available to order | 1 |
| 24 | T2040301 Adjuster Nut, M30, Lower | Adjuster Nut, M30, Lower | 1 | $28.50 | Available to order | 1 |
| 25 | T2046559 Cover, Headstock Bearing | Cover, Headstock Bearing | 1 | $10.18 | Available to order | 1 |
| 26 | T3800091 Bearing, Sac | Bearing, Sac | 1 | $33.95 | Available to order | 1 |
| 27 | T3600234 Dust Seal, Dia 55 | Dust Seal, Dia 55 | 1 | $8.34 | Available to order | 1 |
| 28 | T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc | Screw, Cap/Hd, M5 x 10, Slv, Enc | 4 | $3.04 | Available to order | 4 |
