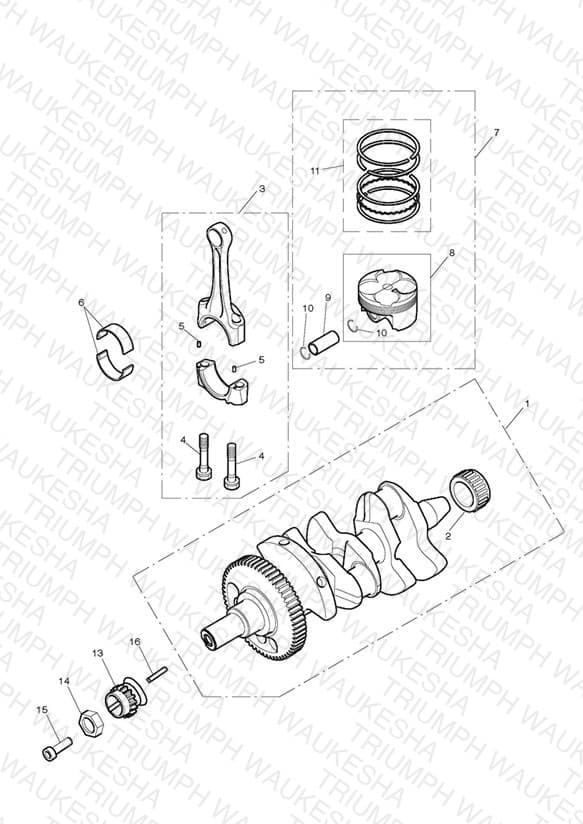

Crankshaft, Connecting Rods, Pistons & Liners
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1103102 Crankshaft Assy | Crankshaft Assy | 1 | $1900.35 | Available to order | 1 |
| 2 | T3800120 Bearing, 28 x 41 x 21 Wide | Bearing, 28 x 41 x 21 Wide | 1 | $81.75 | Out of Stock | Notify Me |
| 3 | T1110800 Connecting Rod Assy | Connecting Rod Assy | 3 | $127.93 | Available to order | 3 |
| 4 | T1110451 Bolt, M8 x 37 x 0.75 | Bolt, M8 x 37 x 0.75 | 6 | $20.81 | Available to order | 6 |
| 5 | T1110452 Dowel, 3 x 5 | Dowel, 3 x 5 | 6 | $2.85 | Available to order | 6 |
| 6 | T1110401 Bearing Shell | Bearing Shell White | — | $12.04 | Available to order | 1 |
| 6 | T1110402 Bearing Shell | Bearing Shell Red | — | $12.04 | Available to order | 1 |
| 7 | T1125765 Piston Assy | Piston Assy | 3 | $270.67 | Available to order | 3 |
| 8 | T1125770 Piston & Circlip Assy | Piston & Circlip Assy | 3 | $244.73 | Out of Stock | Notify Me |
| 9 | T1121999 Gudgeon Pin, Dia 17, DLC | Gudgeon Pin, Dia 17, DLC | 3 | $54.51 | Backorder — Late August 2026 | 3 |
| 10 | T1126007 Circlip, Piston | Circlip, Piston | 6 | $2.25 | Available to order | 6 |
| 11 | T1125502 Piston Ring Set | Piston Ring Set | 3 | $107.90 | Available to order | 3 |
| 13 | T1140501 Sprocket, Camdrive, 17T | Sprocket, Camdrive, 17T | 1 | $104.56 | Available to order | 1 |
| 14 | T1100407 Spacer, Hex | Spacer, Hex | 1 | $13.77 | Available to order | 1 |
| 15 | T3050161 Screw, Cap/HD. M8 x 20, Raw | Screw, Cap/HD. M8 x 20, Raw | 1 | $0.97 | Out of Stock | Notify Me |
| 16 | T1100808 Key, Crankshaft | Key, Crankshaft | 1 | $13.61 | Available to order | 1 |
