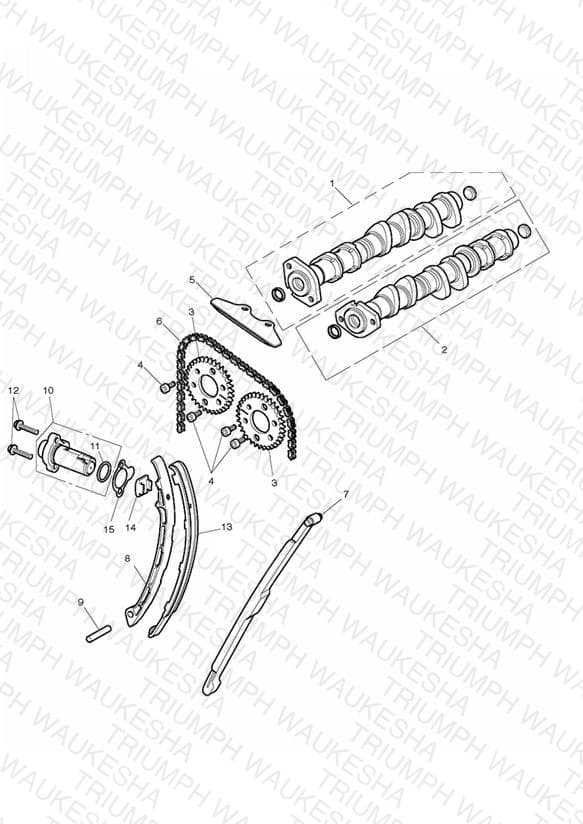

Camshaft & Camshaft Drive
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1141410 Camshaft Assy, Inlet, OTL | Camshaft Assy, Inlet, OTL | 1 | $386.25 | Available to order | 1 |
| 2 | T1140951 Camshaft Assy, Exhaust, OTL | Camshaft Assy, Exhaust, OTL | 1 | $386.25 | Backorder — Late August 2026 | 1 |
| 3 | T1140888 Sprocket, Camshaft, 34T, OTL | Sprocket, Camshaft, 34T, OTL | 2 | $104.56 | Available to order | 2 |
| 4 | T3053035 Screw, Pan, M7 x 12 | Screw, Pan, M7 x 12 | 4 | $1.93 | Available to order | 4 |
| 5 | T1141124 Top Pad, Camchain | Top Pad, Camchain | 1 | $38.14 | Backorder — Late August 2026 | 1 |
| 6 | T1142126 Chain, Cam, 126 Links | Chain, Cam, 126 Links | 1 | $172.59 | Available to order | 1 |
| 7 | T1143510 Rubbing Blade, Camchain, Nylon | Rubbing Blade, Camchain, Nylon | 1 | $43.42 | Available to order | 1 |
| 8 | T1140086 Blade, Aluminium, Tensioner | Blade, Aluminium, Tensioner | 1 | $112.13 | Available to order | 1 |
| 9 | T1141062 Dowel, Tensioner | Dowel, Tensioner | 1 | $8.90 | Available to order | 1 |
| 10 | T1140114 Tensioner, Hydraulic, Black | Tensioner, Hydraulic, Black | 1 | $150.17 | Available to order | 1 |
| 11 | T3600199 O Ring, 18.8 x Dia 1.9 | O Ring, 18.8 x Dia 1.9 | 1 | $1.47 | Available to order | 1 |
| 12 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 2 | $2.46 | Available to order | 2 |
| 13 | T1140196 Facing Blade, Tensioner | Facing Blade, Tensioner | 1 | $102.64 | Available to order | 1 |
| 14 | T1140197 Pad, Blade, Tensioner | Pad, Blade, Tensioner | 1 | $20.53 | Available to order | 1 |
| 15 | T1140071 Gasket, Metal Tensioner | Gasket, Metal Tensioner | 1 | $3.29 | Available to order | 1 |
