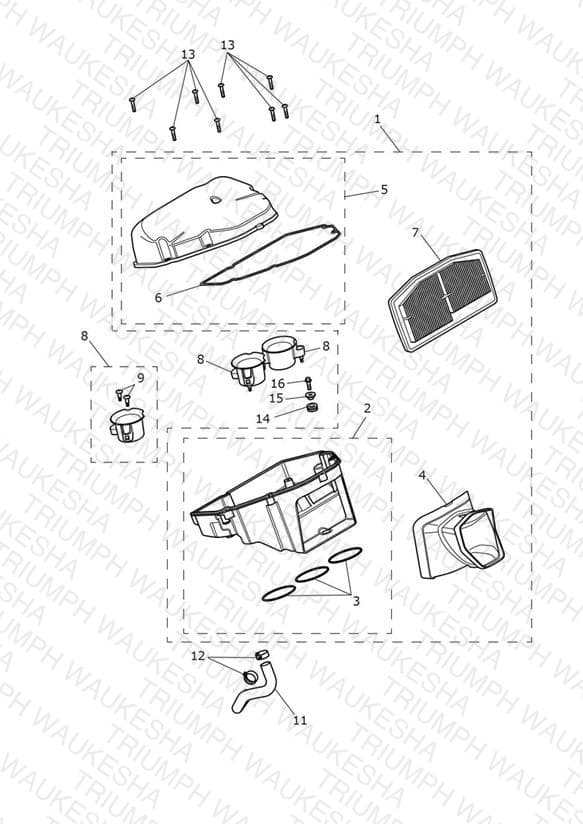

Airbox
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2209874 Airbox Assy, Complete | Airbox Assy, Complete | 1 | $314.10 | Out of Stock | Notify Me |
| 2 | T2209879 Airbox, Lower, Assy | Airbox, Lower, Assy | 1 | $193.84 | Available to order | 1 |
| 3 | T2208180 Airbox/Throttle Body, O Ring | Airbox/Throttle Body, O Ring | 3 | $4.88 | Available to order | 3 |
| 4 | T2207657 Transition, Airbox to Headstock | Transition, Airbox to Headstock | 1 | $55.95 | Available to order | 1 |
| 5 | T2209741 Airbox, Upper, Assembly | Airbox, Upper, Assembly | 1 | $147.23 | Out of Stock | Notify Me |
| 6 | T2201826 Airbox Seal, Upper | Airbox Seal, Upper | 1 | $11.79 | Out of Stock | Notify Me |
| 7 | T2200957 Air Filter | Air Filter | 1 | $43.07 | Available to order | 1 |
| 8 | T2208027 Intake Trumpet Assembly | Intake Trumpet Assembly | 3 | $41.21 | Available to order | 3 |
| 9 | T3330887 Screw, Pan, Shld, M5 x 0.8 | Screw, Pan, Shld, M5 x 0.8 | 6 | $1.97 | Available to order | 6 |
| 11 | T2201810 Breather Hose, Crankcase | Breather Hose, Crankcase | 1 | $25.46 | Available to order | 1 |
| 12 | T3700051 Hose Clip, Dia 18.1-20 x 8mm | Hose Clip, Dia 18.1-20 x 8mm | 2 | $2.25 | Out of Stock | Notify Me |
| 13 | T3332464 Screw, S/Tap, Tx, 5 x 25 | Screw, S/Tap, Tx, 5 x 25 | 9 | $2.17 | Available to order | 9 |
| 14 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 1 | $1.91 | Available to order | 1 |
| 15 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 1 | $5.78 | Available to order | 1 |
| 16 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 1 | $4.55 | Available to order | 1 |
