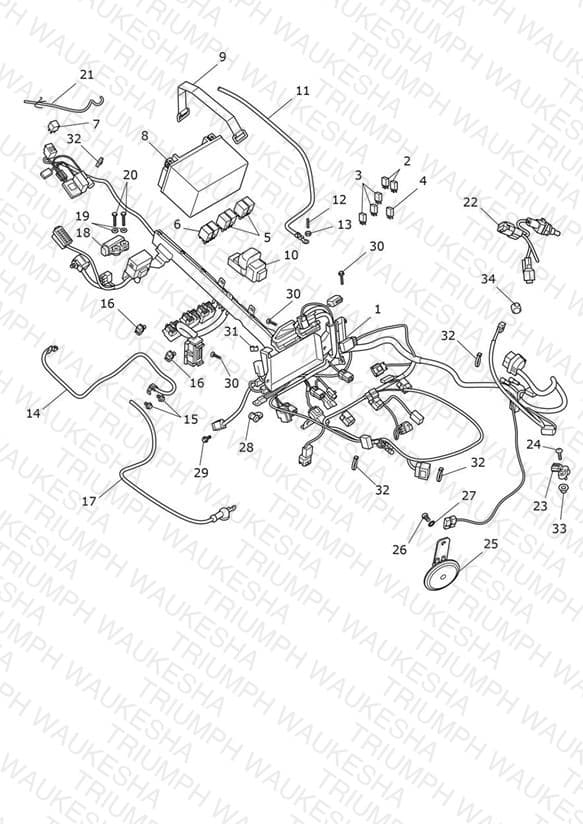

Electrical Equipment
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2505041 Main Harness | Main Harness | 1 | $1428.02 | Available to order | 1 |
| 2 | T2501310 Fuse, Mini, 10A | Fuse, Mini, 10A | 2 | $5.05 | Available to order | 2 |
| 3 | T2501315 Fuse, Mini, 15A | Fuse, Mini, 15A | 3 | $5.05 | Available to order | 3 |
| 4 | T2501320 Fuse, Mini, 20A | Fuse, Mini, 20A | 1 | $5.05 | Available to order | 1 |
| 5 | T2507727 Relay, Normally Open | Relay, Normally Open | 4 | $20.87 | Available to order | 4 |
| 6 | T2507728 Relay, Changeover | Relay, Changeover | 2 | $19.19 | Available to order | 2 |
| 7 | T2507729 Relay, Ultra Micro, ISO 280 | Relay, Ultra Micro, ISO 280 | 1 | $8.02 | Available to order | 1 |
| 8 | T2500183 Battery | Battery All Markets Except EF/ER/GR/BR | 1 | $120.70 | Available to order | 1 |
| 8 | T2504600 Spares Kit, Battery | Spares Kit, Battery BR Only | 1 | $161.12 | Out of Stock | Notify Me |
| 8 | T2502461 Battery Multipack (10) | Battery Multipack (10) All Markets Except EF/ER/GR/BR | 1 | $1015.61 | Out of Stock | Notify Me |
| 8 | T2506715 Kit, Battery, YTX9-BS | Kit, Battery, YTX9-BS EF/ER/GR Markets Only | 1 | $120.70 | Out of Stock | Notify Me |
| 9 | T2501789 Battery Strap | Battery Strap | 1 | $11.24 | Available to order | 1 |
| 10 | T1310115 Solenoid | Solenoid | 1 | $67.15 | Available to order | 1 |
| 11 | T2500896 Earth Lead | Earth Lead | 1 | $10.95 | Available to order | 1 |
| 12 | T3100050 Stud, M6 x 28, Enc | Stud, M6 x 28, Enc | 1 | $3.93 | Available to order | 1 |
| 13 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.71 | Available to order | 1 |
| 14 | T2503801 Positive Lead, Battery | Positive Lead, Battery | 1 | $15.44 | Out of Stock | Notify Me |
| 15 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 2 | $5.20 | Available to order | 2 |
| 16 | T3700193 Clip, Double, Firtree | Clip, Double, Firtree | 1 | $1.21 | Available to order | 1 |
| 17 | T2507855 Starter Lead | Starter Lead | 1 | $66.22 | Available to order | 1 |
| 18 | T2502405 Switch, Fall Detection | Switch, Fall Detection | 1 | $77.49 | Available to order | 1 |
| 19 | T3551066 Washer, 4.3 x 12.0 x 1.0 | Washer, 4.3 x 12.0 x 1.0 | 2 | $1.73 | Out of Stock | Notify Me |
| 20 | T3330390 Screw, H/Hd, M4 x 25, Slv, Enc | Screw, H/Hd, M4 x 25, Slv, Enc | 1 | $2.91 | Available to order | 1 |
| 21 | T2500898 Rear Subharness, Lighting | Rear Subharness, Lighting | 1 | $83.94 | Available to order | 1 |
| 22 | T2507820 Subharness, Engine | Subharness, Engine | 1 | $91.41 | Available to order | 1 |
| 23 | T1290975 Air Pressure Sensor | Air Pressure Sensor | 1 | $139.14 | Available to order | 1 |
| 24 | T3338989 Screw, But/Hd, M5 x 20, S/S | Screw, But/Hd, M5 x 20, S/S | 1 | $7.20 | Available to order | 1 |
| 25 | T2500113 Horn Assembly, Hi Tone | Horn Assembly, Hi Tone | 1 | $41.82 | Available to order | 1 |
| 26 | T3331625 Screw, Btn Hd, M8 x 12, Slv | Screw, Btn Hd, M8 x 12, Slv | 1 | $1.84 | Available to order | 1 |
| 27 | T3551128 Washer, Serrated Lock, M8 | Washer, Serrated Lock, M8 | 1 | $1.91 | Available to order | 1 |
| 28 | T3700192 P Clip, ID 8mm | P Clip, ID 8mm | 1 | $11.54 | Available to order | 1 |
| 29 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 1 | $3.45 | Available to order | 1 |
| 30 | T3332427 Screw, S/Tap, HHF, 50 x 20.5 | Screw, S/Tap, HHF, 50 x 20.5 | 3 | $0.14 | Available to order | 3 |
| 31 | T3700061 Clip, Cable Double | Clip, Cable Double | 1 | $5.65 | Available to order | 1 |
| 32 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 4 | $0.95 | Available to order | 4 |
| 33 | T3350050 Wellnut, M5 | Wellnut, M5 | 1 | $7.08 | Available to order | 1 |
| 34 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 1 | $4.15 | Available to order | 1 |
