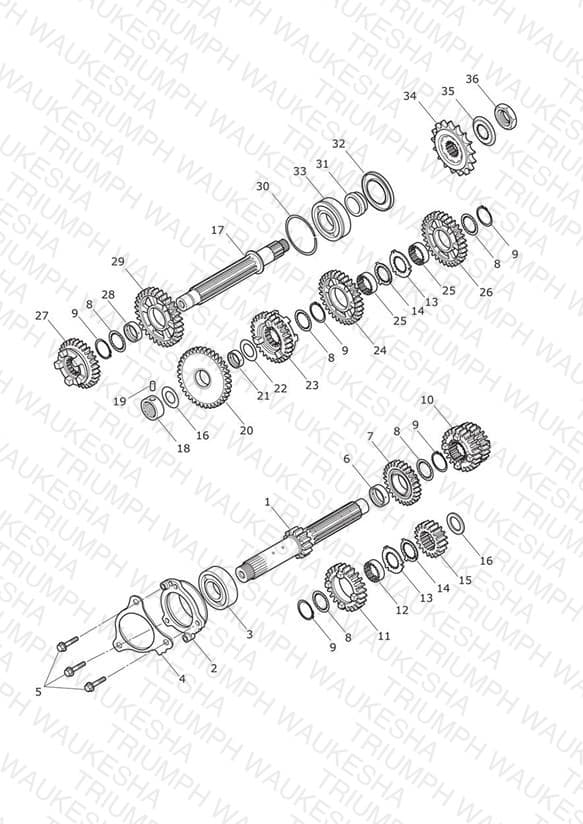

Transmission
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1180094 Gearbox Shaft, Input & 1st, 16t | Gearbox Shaft, Input & 1st, 16t | 1 | $334.47 | Available to order | 1 |
| 2 | T1180383 Input Shaft Bearing Housing | Input Shaft Bearing Housing | 1 | $23.58 | Backorder — Late August 2026 | 1 |
| 3 | T3800123 Bearing Ball, 25 x 62 x 17 | Bearing Ball, 25 x 62 x 17 | 1 | $102.64 | Available to order | 1 |
| 4 | T1180297 Bearing Retainer Plate | Bearing Retainer Plate | 1 | $20.43 | Available to order | 1 |
| 5 | T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 3 | $5.60 | Available to order | 3 |
| 6 | T1180354 Bush, 28 x 31 x 11.2, Input 5th | Bush, 28 x 31 x 11.2, Input 5th | 1 | $54.20 | Available to order | 1 |
| 7 | T1180265 Gear, Input, 5th, 22T | Gear, Input, 5th, 22T | 1 | $85.52 | Available to order | 1 |
| 8 | T1180331 Washer, Splined, 28 x 34 x 1.5 | Washer, Splined, 28 x 34 x 1.5 | 5 | $5.98 | Available to order | 5 |
| 9 | T3500058 Circlip, 28mm | Circlip, 28mm | 5 | $8.12 | Available to order | 5 |
| 10 | T1180115 Gear, Input, 3rd/4th, 24T/21T | Gear, Input, 3rd/4th, 24T/21T | 1 | $127.38 | Available to order | 1 |
| 11 | T1180116 Gear, Input, 6th, 23T | Gear, Input, 6th, 23T | 1 | $96.97 | Available to order | 1 |
| 12 | T1180357 Collar, Splined, 18x11.5, Input6 | Collar, Splined, 18x11.5, Input6 | 1 | $63.70 | Available to order | 1 |
| 13 | T1180347 Washer, Splined, 28mm | Washer, Splined, 28mm | 2 | $6.14 | Available to order | 2 |
| 14 | T1180348 Washer, Lock, 28mm | Washer, Lock, 28mm | 2 | $6.29 | Available to order | 2 |
| 15 | T1180352 Gear, Input, 2nd, 21T | Gear, Input, 2nd, 21T | 1 | $63.70 | Available to order | 1 |
| 16 | T1180334 Washer, Thrust, 20mm | Washer, Thrust, 20mm | 2 | $6.14 | Available to order | 2 |
| 17 | T1180360 Shaft, Gearbox, Output | Shaft, Gearbox, Output | 1 | $404.89 | Available to order | 1 |
| 18 | T3800068 Bearing, Needle Roller, Dowel | Bearing, Needle Roller, Dowel | 1 | $133.08 | Available to order | 1 |
| 19 | T3000032 Dowel, Dia 6 x 10.8 | Dowel, Dia 6 x 10.8 | 1 | $6.45 | Available to order | 1 |
| 20 | T1180118 Gear, Output, 1st, 37T | Gear, Output, 1st, 37T | 1 | $136.88 | Available to order | 1 |
| 21 | T1180359 Bush, 22 x 25 x 11, Output 1st | Bush, 22 x 25 x 11, Output 1st | 1 | $63.70 | Available to order | 1 |
| 22 | T1180358 Washer, Thrust 22mm | Washer, Thrust 22mm | 1 | $8.65 | Available to order | 1 |
| 23 | T1180274 Gear, Output, 5th, 25T | Gear, Output, 5th, 25T | 1 | $131.17 | Available to order | 1 |
| 24 | T1180124 Gear, Output, 4th, 27T | Gear, Output, 4th, 27T | 1 | $125.46 | Available to order | 1 |
| 25 | T1180368 Collar, Spline, 28 x 9, Output 3 | Collar, Spline, 28 x 9, Output 3 | 2 | $63.70 | Available to order | 2 |
| 26 | T1180123 Gear, Output, 3rd, 36T | Gear, Output, 3rd, 36T | 1 | $100.76 | Available to order | 1 |
| 27 | T1180121 Gear, Output, 6th, 24T | Gear, Output, 6th, 24T | 1 | $102.64 | Out of Stock | Notify Me |
| 28 | T1180367 Bush, 28 x 31 x 8.4, Output, 2nd | Bush, 28 x 31 x 8.4, Output, 2nd | 1 | $57.98 | Available to order | 1 |
| 29 | T1180362 Gear, Output 2nd, 39T | Gear, Output 2nd, 39T | 1 | $127.38 | Available to order | 1 |
| 30 | T3800094 Ring Bearing Retainer | Ring Bearing Retainer | 1 | $3.39 | Backorder — Late August 2026 | 1 |
| 31 | T1180369 Spacer, Sprocket | Spacer, Sprocket | 1 | $11.41 | Available to order | 1 |
| 32 | T3600113 Seal, Oil 35 x 62 x 5 | Seal, Oil 35 x 62 x 5 | 1 | $24.60 | Available to order | 1 |
| 33 | T3800066 Bearing 6305, High Duty | Bearing 6305, High Duty | 1 | $199.57 | Available to order | 1 |
| 34 | T1182011 Sprocket, Output, 15T | Sprocket, Output, 15T | 1 | $36.78 | Available to order | 1 |
| 35 | T1180328 Washer, Tab, Sprocket | Washer, Tab, Sprocket | 1 | $17.01 | Available to order | 1 |
| 36 | T1180183 Nut, M20 x 1.5, 6 Deep | Nut, M20 x 1.5, 6 Deep | 1 | $10.87 | Available to order | 1 |
