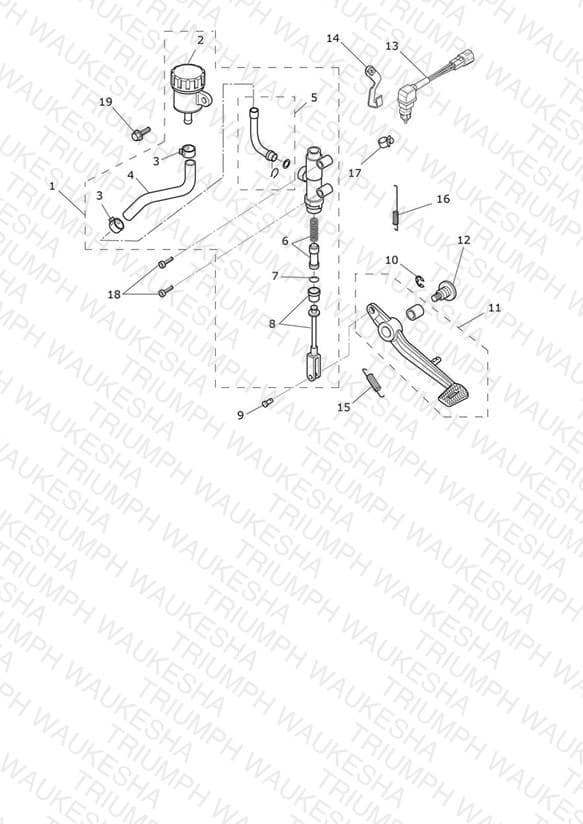

Rear Brake Master Cylinder, Reservoir & Pedal
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2021850 Rear M/Cyl & Reservoir Assy | Rear M/Cyl & Reservoir Assy | 1 | $121.31 | Out of Stock | Notify Me |
| 2 | T2024078 Rear Reservoir, Tank Assy | Rear Reservoir, Tank Assy | 1 | $48.49 | Available to order | 1 |
| 3 | T2023188 Reservoir Hose Clip | Reservoir Hose Clip | 2 | $3.50 | Available to order | 2 |
| 4 | T2021356 Rear Brake Reservoir Hose | Rear Brake Reservoir Hose | 1 | $39.06 | Available to order | 1 |
| 5 | T2023189 Connection Set | Connection Set | 1 | $26.78 | Available to order | 1 |
| 6 | T2022110 Piston Set, Rear Master Cylinder | Piston Set, Rear Master Cylinder | 1 | $68.42 | Available to order | 1 |
| 7 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 1 | $2.74 | Available to order | 1 |
| 8 | T2026204 Push Rod Assy, Rear M/Cyl | Push Rod Assy, Rear M/Cyl | 1 | $41.36 | Available to order | 1 |
| 9 | T3000301 Pin, Clevis, 8 x 13.7 | Pin, Clevis, 8 x 13.7 | 1 | $4.30 | Available to order | 1 |
| 10 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin | 1 | $6.07 | Available to order | 1 |
| 11 | T2026041 Brake Pedal Assy | Brake Pedal Assy | 1 | $152.80 | Available to order | 1 |
| 12 | T3331614 Bolt, Shld, M8, Slv Enc | Bolt, Shld, M8, Slv Enc | 1 | $10.06 | Available to order | 1 |
| 13 | T2020906 Dual Brake Switch | Dual Brake Switch | 1 | $43.81 | Available to order | 1 |
| 14 | T2025988 Bracket, Rear Brake Switch | Bracket, Rear Brake Switch | 1 | $12.11 | Out of Stock | Notify Me |
| 15 | T2020897 Spring, Brake Lever Return | Spring, Brake Lever Return | 1 | $2.25 | Available to order | 1 |
| 16 | T2026203 Spring, Brake Switch | Spring, Brake Switch | 1 | $4.92 | Available to order | 1 |
| 17 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 1 | $3.24 | Available to order | 1 |
| 18 | T3051075 Screw, But/Hd, Tx, SS, M8 x 35 | Screw, But/Hd, Tx, SS, M8 x 35 | 2 | $7.02 | Available to order | 2 |
| 19 | T3205070 Bolt, HHF, Lghtd, M6 x 30, Slv | Bolt, HHF, Lghtd, M6 x 30, Slv | 1 | $2.37 | Available to order | 1 |
