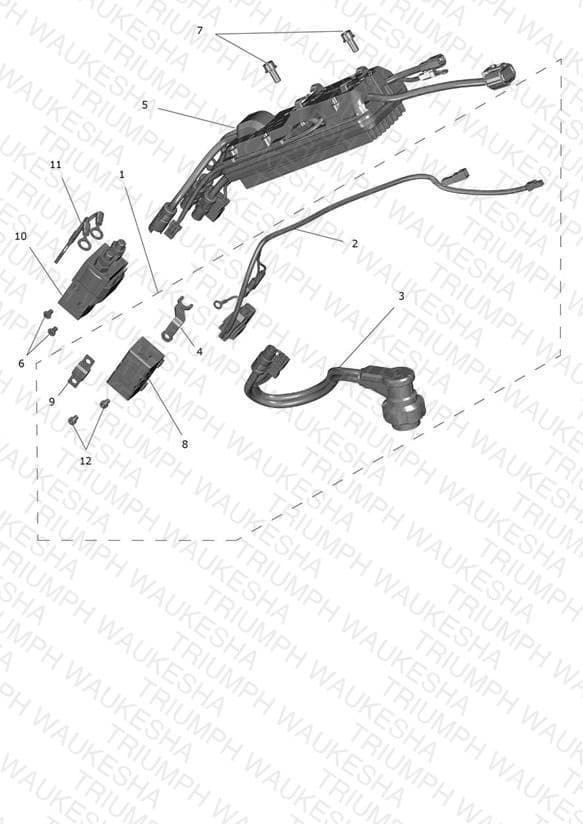

Electrical System
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2504348 Wiring Harness, 100A Fuse | Wiring Harness, 100A Fuse | 1 | $127.58 | Available to order | 1 |
| 2 | T2504359 Harness, Relay To Kill Switch | Harness, Relay To Kill Switch | 1 | $18.28 | Available to order | 1 |
| 3 | T2504387 Harness, Li-Ion Batt Connector | Harness, Li-Ion Batt Connector | 1 | $60.72 | Available to order | 1 |
| 4 | T2504396 Harness, Link Strip, Assy | Harness, Link Strip, Assy | 1 | $5.99 | Available to order | 1 |
| 5 | T5500001 Controller,Brushless 50V,1600W | Controller,Brushless 50V,1600W | 1 | $428.48 | Available to order | 1 |
| 6 | TOS30007 Bolt, M4X8Mm, Csk, SS A2 | Bolt, M4X8Mm, Csk, SS A2 | 2 | $0.53 | Available to order | 2 |
| 7 | TOS30069 Bolt,M6X14Mm,Cap+Wash,10.9,Blk | Bolt,M6X14Mm,Cap+Wash,10.9,Blk | 2 | $1.76 | Out of Stock | Notify Me |
| 8 | T2504337 Fuse Holder ,Black | Fuse Holder ,Black | 1 | $8.31 | Available to order | 1 |
| 9 | T2504338 Fuse, Midi, 100A | Fuse, Midi, 100A | 1 | $3.59 | Available to order | 1 |
| 10 | T2504349 Relay,48V,Sealed,M8 | Relay,48V,Sealed,M8 | 1 | $76.62 | Available to order | 1 |
| 11 | T2504498 Harness, Ptc, 2.5-5A | Harness, Ptc, 2.5-5A | 1 | $8.54 | Available to order | 1 |
| 12 | TOS30002 Bolt, M4X6Mm, Cap, 10.9, Blk | Bolt, M4X6Mm, Cap, 10.9, Blk | 2 | $0.95 | Available to order | 2 |
