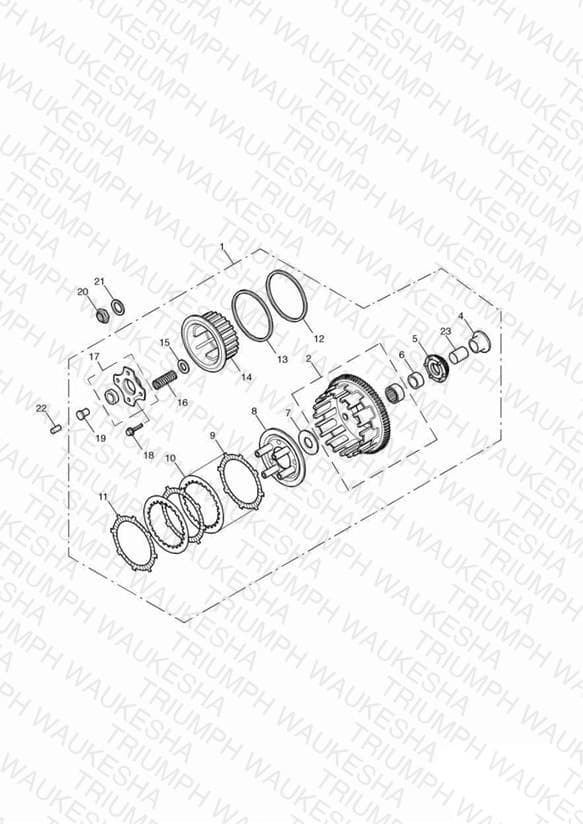

Clutch > Vin 210261
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1170001 Clutch assembly | Clutch assembly | 1 | $1434.40 | Obsolete | View Details |
| 2 | T1170275 Drum assembly | Drum assembly Outer | 1 | $641.22 | Obsolete | View Details |
| 4 | T1170290 Bush | Bush | 1 | $51.01 | Obsolete | View Details |
| 5 | T1170321 Sprocket | Sprocket | 1 | $99.79 | Obsolete | View Details |
| 6 | T1170012 Bush, Clutch | Bush, Clutch | 1 | $25.05 | Obsolete | View Details |
| 7 | T1170284 Washer | Washer | 1 | $4.75 | Obsolete | View Details |
| 8 | T1170288 Clutch plate | Clutch plate Inner | 1 | $66.67 | Obsolete | View Details |
| 9 | T1170276 Disc, Friction, Clutch A | Disc, Friction, Clutch A Clutch A | 8 | $29.97 | Available to order | 8 |
| 10 | T1170277 Plate, Clutch | Plate, Clutch | 8 | $22.92 | Available to order | 8 |
| 11 | T1170278 Disc, Friction, Clutch B | Disc, Friction, Clutch B Clutch B | 1 | $46.64 | Available to order | 1 |
| 12 | T1170279 Spring Judder | Spring Judder | 1 | $26.46 | Obsolete | View Details |
| 13 | T1170291 Seat spring | Seat spring | 1 | $8.31 | Obsolete | View Details |
| 14 | T1170287 Drum | Drum | 1 | $139.44 | Obsolete | View Details |
| 15 | T1171282 Washer, ID 22, OD 34 | Washer, ID 22, OD 34 | 1 | $4.64 | Available to order | 1 |
| 16 | T1170281 Spring | Spring | 4 | $5.68 | Obsolete | View Details |
| 17 | T1170273 Plate assembly | Plate assembly | 1 | $27.39 | Obsolete | View Details |
| 18 | T1170950 Bolt, M6 x 28 | Bolt, M6 x 28 M6 x 25mm | 4 | $7.71 | Available to order | 4 |
| 19 | T1170013 Lifter piece | Lifter piece | 1 | $17.34 | Obsolete | View Details |
| 20 | T1170192 Nut, Clutch, M22 | Nut, Clutch, M22 22mm | 1 | $12.29 | Available to order | 1 |
| 21 | T1179999 Washer, C, Clutch | Washer, C, Clutch | 1 | $11.71 | Available to order | 1 |
| 22 | T1170949 Joint Piece, Spigot, Clutch | Joint Piece, Spigot, Clutch | 1 | $56.40 | Obsolete | View Details |
| 23 | T1175200 Bearing, Needle, K32 x 37 x 13 | Bearing, Needle, K32 x 37 x 13 | 1 | $19.57 | Available to order | 1 |
