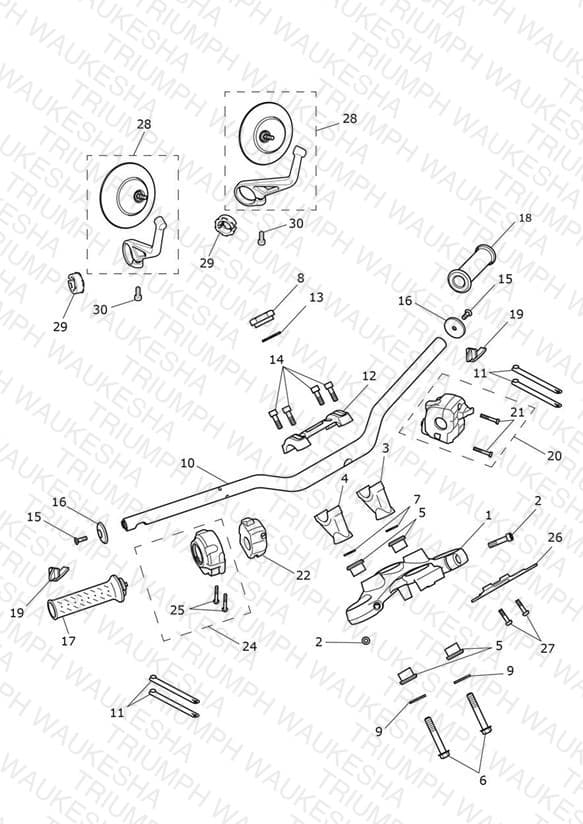

Handlebars, Top Yokes & Mirrors
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2046853 Upper Yoke | Upper Yoke | 1 | $282.14 | Available to order | 1 |
| 2 | T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv | Screw, Cap/Hd, M8 x 1.25 x 35, Slv | 2 | $4.74 | Available to order | 2 |
| 3 | T2043107 Riser, Hancllebar, LH | Riser, Hancllebar, LH | 1 | $46.89 | Available to order | 1 |
| 4 | T2043108 Riser, Handlebar, RH | Riser, Handlebar, RH | 1 | $46.89 | Available to order | 1 |
| 5 | T2045065 Sleeve, Flanged, Handlebar | Sleeve, Flanged, Handlebar | 4 | $15.72 | Available to order | 4 |
| 6 | T3205765 Bolt, HHF, M10 x 65, Slv | Bolt, HHF, M10 x 65, Slv | 2 | $4.12 | Available to order | 2 |
| 7 | T3550632 Washer, 10.5 x 21 x 2 | Washer, 10.5 x 21 x 2 | 2 | $2.95 | Available to order | 2 |
| 8 | T2049880 Nut, Upper Yoke, M25 | Nut, Upper Yoke, M25 | 1 | $24.43 | Available to order | 1 |
| 9 | T3555030 Washer, 10.5 x 30 x 2.5 | Washer, 10.5 x 30 x 2.5 | 2 | $6.65 | Available to order | 2 |
| 10 | T2041153 Handlbar, Tapered, Black | Handlbar, Tapered, Black | 1 | $230.76 | Available to order | 1 |
| 11 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 4 | $3.90 | Available to order | 4 |
| 12 | T2043408 Clamp, Handlebar | Clamp, Handlebar | 1 | $64.83 | Available to order | 1 |
| 13 | T2049302 Badge, Handlebar Clamp | Badge, Handlebar Clamp | 1 | $69.37 | Backorder — Late August 2026 | 1 |
| 14 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 4 | $4.12 | Available to order | 4 |
| 15 | T3330923 Screw, Csk, M6 x 20, Slv, Enc | Screw, Csk, M6 x 20, Slv, Enc | 2 | $2.37 | Available to order | 2 |
| 16 | T2042476 Bar End Finisher | Bar End Finisher | 2 | $22.52 | Available to order | 2 |
| 17 | T2041381 Diamond Grip, D22.2, RH, Black | Diamond Grip, D22.2, RH, Black | 1 | $24.47 | Out of Stock | Notify Me |
| 18 | T2041382 Diamond Grip, D22.2, LH, Black | Diamond Grip, D22.2, LH, Black | 1 | $24.47 | Out of Stock | Notify Me |
| 19 | T2045856 Plastic Plug, 22.2 | Plastic Plug, 22.2 | 2 | $2.25 | Available to order | 2 |
| 20 | T2045931 Control Assy, LH, DRL | Control Assy, LH, DRL All Expt CA, CN, JP & USCal | 1 | $318.46 | Available to order | 1 |
| 20 | T2045932 Switchcube, LH | Switchcube, LH CA, CN, JP & USCal | 1 | $318.46 | Available to order | 1 |
| 21 | T3331790 Screw, Pan/Hd, Ph, M5 x 30, Blk | Screw, Pan/Hd, Ph, M5 x 30, Blk | 2 | $0.89 | Available to order | 2 |
| 22 | T2045935 Switchcube, RH | Switchcube, RH | 1 | $186.31 | Available to order | 1 |
| 24 | T2043407 Sensor, AP | Sensor, AP | 1 | $284.27 | Backorder — Late August 2026 | 1 |
| 25 | T2041629 Screw, APS Housing | Screw, APS Housing | 2 | $2.17 | Available to order | 2 |
| 26 | T2041583 Mount, Instruments | Mount, Instruments | 1 | $40.87 | Available to order | 1 |
| 27 | T3331110 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.06 | Available to order | 2 |
| 28 | T9630715 Round Mirror, Bar End | Round Mirror, Bar End All Except CN | 2 | $233.60 | Out of Stock | Notify Me |
| 28 | T2060314 Mirror, Bar End, Assy | Mirror, Bar End, Assy CN Only | 1 | $86.66 | Available to order | 1 |
| 29 | T2060499 Friction Ring, 22.2 | Friction Ring, 22.2 | 2 | $36.96 | Available to order | 2 |
| 30 | T3050159 Capscrew, SKT HD, M6 x 20, SS | Capscrew, SKT HD, M6 x 20, SS | 2 | $5.14 | Available to order | 2 |
