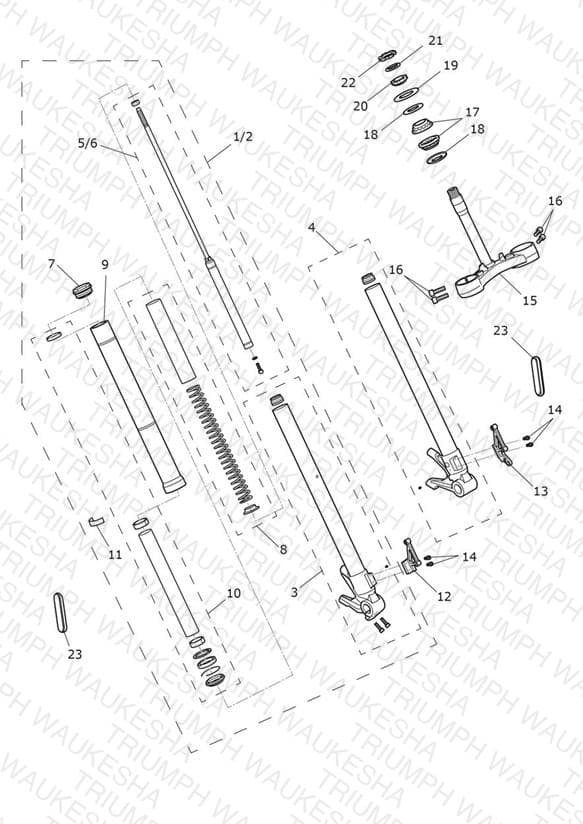

Front Forks & Lower Yoke
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2044908 Stanchion Assembly, RH | Stanchion Assembly, RH | 1 | $1100.26 | Available to order | 1 |
| 2 | T2044909 Stanchion Assembly, LH | Stanchion Assembly, LH | 1 | $1100.26 | Available to order | 1 |
| 3 | T2043744 Stanchion, RH | Stanchion, RH | 1 | $626.77 | Out of Stock | Notify Me |
| 4 | T2043745 Stanchion, LH | Stanchion, LH | 1 | $626.77 | Available to order | 1 |
| 5 | T2043746 Rebound Cartridge (RH) | Rebound Cartridge (RH) | 1 | $572.13 | Out of Stock | Notify Me |
| 6 | T2043747 Compression Cartridge (LH) | Compression Cartridge (LH) | 1 | $572.13 | Out of Stock | Notify Me |
| 7 | T2043748 Top Cap Assembly | Top Cap Assembly | 2 | $77.01 | Available to order | 2 |
| 8 | T2043749 Spring Compression | Spring Compression | 2 | $117.88 | Available to order | 2 |
| 9 | T2043750 Outer Tube | Outer Tube | 2 | $447.74 | Out of Stock | Notify Me |
| 10 | T2043751 Sealing Bush Set | Sealing Bush Set | 2 | $93.40 | Available to order | 2 |
| 11 | T2043752 Marzocchi Sticker | Marzocchi Sticker | 2 | $22.21 | Out of Stock | Notify Me |
| 12 | T2043146 Mount Post, Front Mudguard, RH | Mount Post, Front Mudguard, RH | 1 | $50.32 | Available to order | 1 |
| 13 | T2043117 Mount Post, Front Mudguard, LH | Mount Post, Front Mudguard, LH | 1 | $50.32 | Available to order | 1 |
| 14 | T3050355 Screw, Cap/Hd, M5 x 16, Slv, Enc | Screw, Cap/Hd, M5 x 16, Slv, Enc | 4 | $0.59 | Available to order | 4 |
| 15 | T2046852 Lower Yoke Assembly | Lower Yoke Assembly | 1 | $545.70 | Available to order | 1 |
| 16 | T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv | Screw, Cap/Hd, M8 x 1.25 x 35, Slv | 4 | $4.74 | Available to order | 4 |
| 17 | T3800091 Bearing, Sac | Bearing, Sac | 2 | $33.95 | Available to order | 2 |
| 18 | T3600234 Dust Seal, Dia 55 | Dust Seal, Dia 55 | 2 | $8.34 | Available to order | 2 |
| 19 | T2042138 Cover, Headstock Bearing | Cover, Headstock Bearing | 1 | $10.90 | Available to order | 1 |
| 20 | T2040301 Adjuster Nut, M30, Lower | Adjuster Nut, M30, Lower | 1 | $28.50 | Available to order | 1 |
| 21 | T2044183 Washer, Headstock | Washer, Headstock | 1 | $8.30 | Available to order | 1 |
| 22 | T2040304 Locknut, M30 | Locknut, M30 | 1 | $20.60 | Available to order | 1 |
| 23 | T2700332 Reflector, Amber, Oval | Reflector, Amber, Oval All Mkts Excpt BR & TH | 2 | $6.39 | Available to order | 2 |
