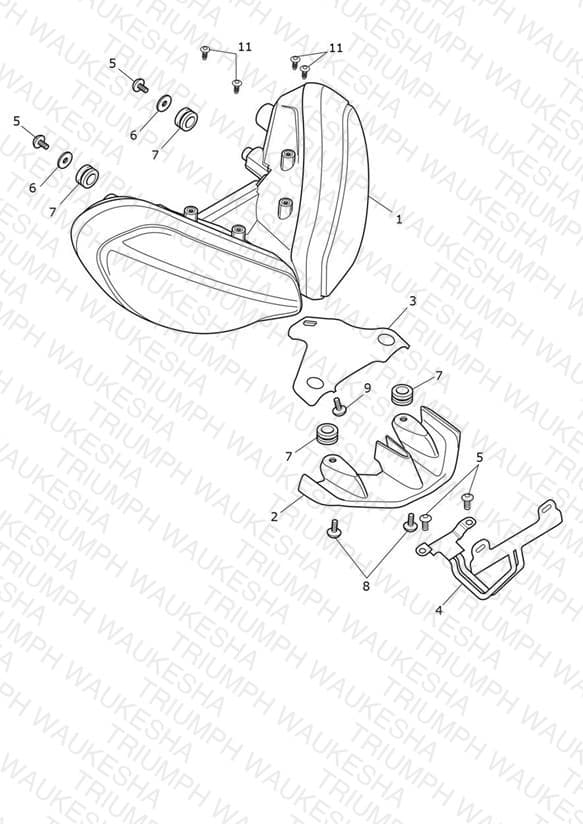

Headlight
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2703211 Headlamp, Full LED, DRL | Headlamp, Full LED, DRL | 1 | $925.19 | Available to order | 1 |
| 2 | T2311906 Intake Moulding | Intake Moulding | 1 | $17.72 | Available to order | 1 |
| 3 | T2705006 Headlight Bracket | Headlight Bracket | 1 | $40.93 | Available to order | 1 |
| 4 | T2311140 Bracket, Front Number Plate | Bracket, Front Number Plate ID/IN Only | 1 | $51.16 | Available to order | 1 |
| 5 | T3330289 Screw, But/Hd, TX, M5 x 16, Slv | Screw, But/Hd, TX, M5 x 16, Slv | 4 | $1.99 | Available to order | 4 |
| 6 | T3550286 Washer, 5.3 x 18 x 1.6 | Washer, 5.3 x 18 x 1.6 | 2 | $1.62 | Backorder — Early September 2026 | 2 |
| 7 | T3021162 Grommet, Rubber | Grommet, Rubber | 4 | $11.03 | Backorder — Late August 2026 | 4 |
| 8 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 2 | $4.92 | Available to order | 2 |
| 9 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 1 | $4.42 | Available to order | 1 |
| 11 | T3450123 Fir Tree, 4.5 x 11, Black | Fir Tree, 4.5 x 11, Black | 4 | $3.21 | Available to order | 4 |
