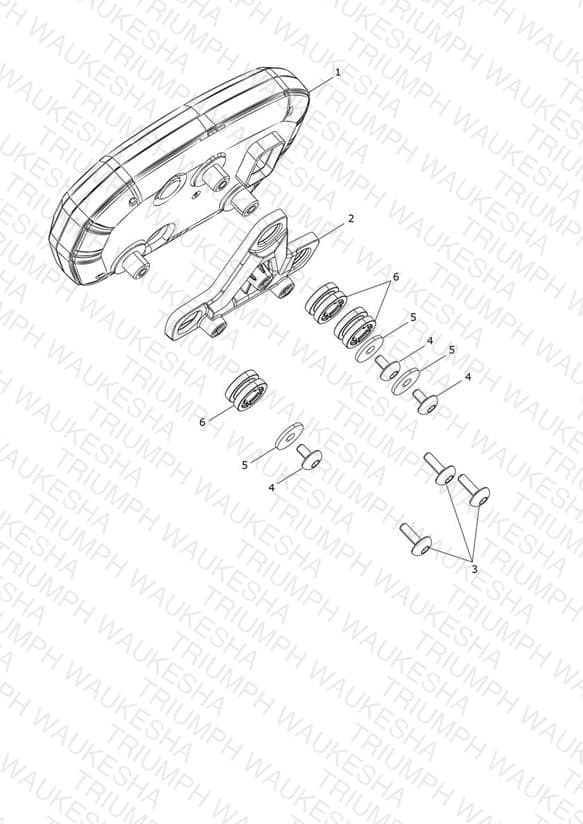

Instruments
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2509303 Instruments, MPH, UK | Instruments, MPH, UK UK | 1 | $1238.58 | Out of Stock | Notify Me |
| 1 | T2509304 Instruments, MPH, US | Instruments, MPH, US US | 1 | $1238.58 | Available to order | 1 |
| 1 | T2509305 Instruments, KMH, EU 5B | Instruments, KMH, EU 5B AR, EF, ER, GR, HK, IN, KR, TW, XA, ZA | 1 | $1238.58 | Backorder — Late August 2026 | 1 |
| 1 | T2509306 Instruments, KMH, EU 5A | Instruments, KMH, EU 5A AU, BR, ID, NZ, TH | 1 | $1238.58 | Out of Stock | Notify Me |
| 1 | T2509307 Instruments, KMH, JP | Instruments, KMH, JP JP | 1 | $1238.58 | Out of Stock | Notify Me |
| 1 | T2509308 Instruments, KMH, CN | Instruments, KMH, CN CN | 1 | $1238.58 | Out of Stock | Notify Me |
| 1 | T2509309 Instruments, KMH, CA | Instruments, KMH, CA CA | 1 | $1238.58 | Out of Stock | Notify Me |
| 2 | T2505068 Instruments Bracket | Instruments Bracket | 1 | $40.93 | Available to order | 1 |
| 3 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 3 | $6.73 | Available to order | 3 |
| 4 | T3330289 Screw, But/Hd, TX, M5 x 16, Slv | Screw, But/Hd, TX, M5 x 16, Slv | 3 | $1.99 | Available to order | 3 |
| 5 | T3555011 Washer, 6.5 x 20 x 2 | Washer, 6.5 x 20 x 2 | 3 | $0.97 | Available to order | 3 |
| 6 | T3020056 Grommet, Instruments | Grommet, Instruments | 3 | $3.50 | Available to order | 3 |
