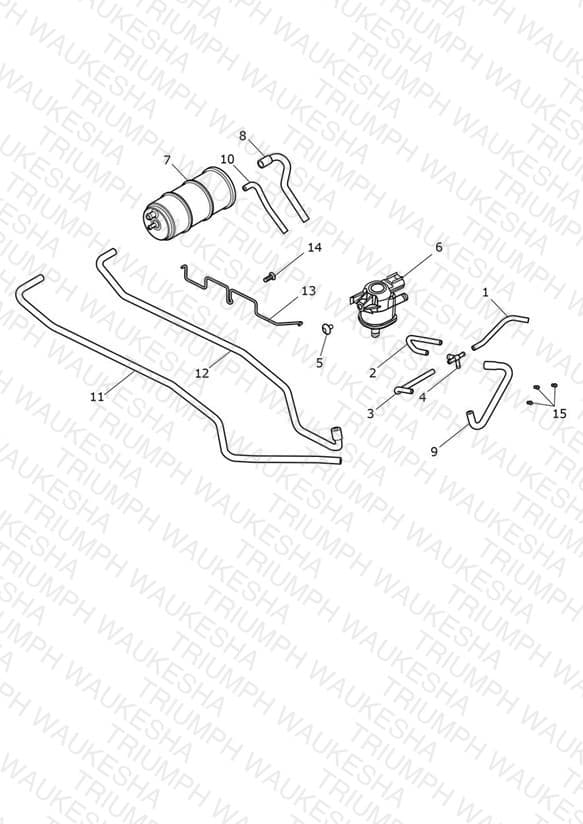

Evaporative Loss Control System
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1292075 Hose, Throttle Body, Cyl 1 | Hose, Throttle Body, Cyl 1 | 1 | $3.45 | Available to order | 1 |
| 2 | T1292076 Hose, Throttle Body, Cyl 2 | Hose, Throttle Body, Cyl 2 | 1 | $3.45 | Available to order | 1 |
| 3 | T1292077 Hose, Throttle Body, Cyl 3 | Hose, Throttle Body, Cyl 3 | 1 | $3.45 | Available to order | 1 |
| 4 | T1242929 Connector, 4 Way | Connector, 4 Way | 1 | $11.31 | Available to order | 1 |
| 5 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 1 | $4.15 | Available to order | 1 |
| 6 | T1248990 Purge Valve | Purge Valve | 1 | $65.30 | Available to order | 1 |
| 7 | T2409017 Carbon Cannister, 137mm Length | Carbon Cannister, 137mm Length | 1 | $107.98 | Available to order | 1 |
| 8 | T1240453 Hose, Evap, Vent | Hose, Evap, Vent | 1 | $26.53 | Out of Stock | Notify Me |
| 9 | T1240407 Hose, Purge, Throttle Bodies | Hose, Purge, Throttle Bodies | 1 | $3.04 | Available to order | 1 |
| 10 | T1240514 Hose, Evap, Drain | Hose, Evap, Drain | 1 | $25.01 | Available to order | 1 |
| 11 | T1240538 Hose, Evap, Purge | Hose, Evap, Purge | 1 | $6.37 | Available to order | 1 |
| 12 | T2401586 Hose, Evap, Tank | Hose, Evap, Tank | 1 | $26.14 | Available to order | 1 |
| 13 | T2402424 Wire Guide, Evap System | Wire Guide, Evap System | 2 | $8.61 | Available to order | 2 |
| 14 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 1 | $4.70 | Available to order | 1 |
| 15 | T1241890 Restrictor, Purge, Evap | Restrictor, Purge, Evap | 3 | $11.75 | Available to order | 3 |
| 16 | T1248995 Kit, Purge Valve | Kit, Purge Valve Not illustrated | 1 | $38.93 | Available to order | 1 |
