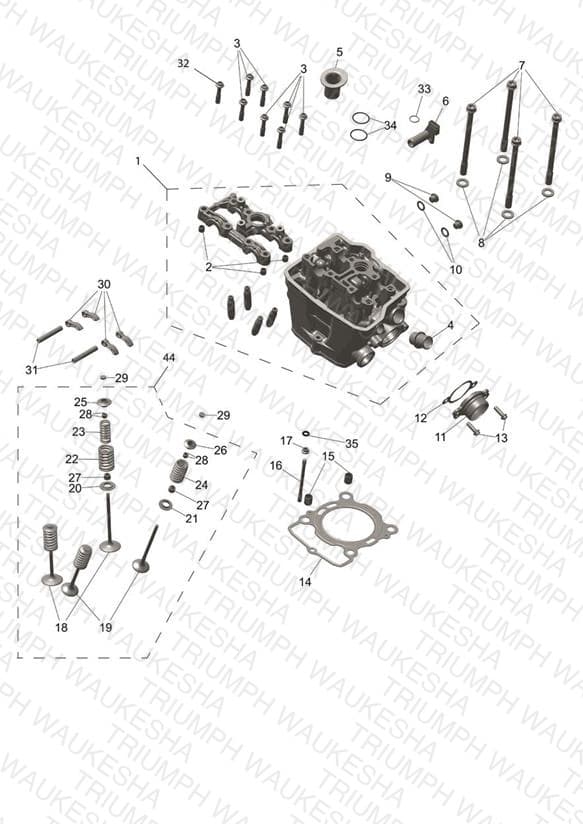

Cylinder Head & Valves
Parts (62)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1155025 Cylinder Head Assy, M/CD, D78MX | Cylinder Head Assy, M/CD, D78MX | 1 | $938.69 | Available to order | 1 |
| 2 | T3000114 Dowel, Hollow, D7 x D9-8 | Dowel, Hollow, D7 x D9-8 | 3 | $3.51 | Available to order | 3 |
| 3 | T3200511 Bolt, M7 x 34 | Bolt, M7 x 34 | 7 | $4.88 | Available to order | 7 |
| 4 | T1161472 Spigot, Coolant | Spigot, Coolant | 1 | $5.88 | Available to order | 1 |
| 5 | T1150469 Tube, Spark Plug | Tube, Spark Plug | 1 | $26.65 | Available to order | 1 |
| 6 | T1150479 Breather, Cylinder Head, Mldg | Breather, Cylinder Head, Mldg | 1 | $6.12 | Available to order | 1 |
| 7 | T3201127 Bolt, TX, M10 x 127 | Bolt, TX, M10 x 127 | 4 | $10.00 | Available to order | 4 |
| 8 | T3555038 Washer, Hardened, 11.5 x 19 x 2 | Washer, Hardened, 11.5 x 19 x 2 | 4 | $3.18 | Available to order | 4 |
| 9 | T3450279 Plug, Sealing, T30 | Plug, Sealing, T30 | 2 | $5.95 | Available to order | 2 |
| 10 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 2 | $0.89 | Available to order | 2 |
| 11 | T1150474 Flange, Exhaust, D38 | Flange, Exhaust, D38 | 1 | $46.04 | Available to order | 1 |
| 12 | T1150476 Gasket, Exhaust Flange, D38 | Gasket, Exhaust Flange, D38 | 1 | $4.56 | Available to order | 1 |
| 13 | T3200675 Bolt, TX, Lghtd, M6 x 20, Enc | Bolt, TX, Lghtd, M6 x 20, Enc | 2 | $2.67 | Available to order | 2 |
| 14 | T1150498 Gasket, Cyl/Hd, D78.4, Layer | Gasket, Cyl/Hd, D78.4, Layer | 1 | $73.20 | Available to order | 1 |
| 15 | T3000103 Dowel, Hollow, 12 x 14 | Dowel, Hollow, 12 x 14 | 2 | $4.08 | Available to order | 2 |
| 16 | T1150499 Stud, M6 x 83 | Stud, M6 x 83 | 1 | $37.05 | Available to order | 1 |
| 17 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 1 | $0.94 | Available to order | 1 |
| 18 | T1139986 Intake Valve | Intake Valve | 2 | $254.51 | Available to order | 2 |
| 19 | T1139985 Exhaust Valve | Exhaust Valve | 2 | $246.63 | Available to order | 2 |
| 20 | T1132021 Seat, Intake Valve Spring | Seat, Intake Valve Spring | 2 | $12.86 | Available to order | 2 |
| 21 | T1132020 Seat, Exhaust Valve Spring | Seat, Exhaust Valve Spring | 2 | $12.74 | Available to order | 2 |
| 22 | T1132179 Spring, Outer, Intake Valve | Spring, Outer, Intake Valve | 2 | $15.07 | Available to order | 2 |
| 23 | T1132178 Spring, Inner, Intake Valve | Spring, Inner, Intake Valve | 2 | $12.80 | Available to order | 2 |
| 24 | T1132180 Spring, Valve | Spring, Valve | 2 | $17.50 | Available to order | 2 |
| 25 | T1132010 Retainer, Intake Valve Spring | Retainer, Intake Valve Spring | 2 | $17.00 | Available to order | 2 |
| 26 | T1132009 Retainer, Valve Spring | Retainer, Valve Spring | 2 | $12.38 | Available to order | 2 |
| 27 | T1130710 Oil Seal, Valve Stem, 5mm | Oil Seal, Valve Stem, 5mm | 4 | $10.66 | Available to order | 4 |
| 28 | T1132007 Collet, Valve, 5mm | Collet, Valve, 5mm | 8 | $1.09 | Available to order | 8 |
| 29 | T1135008 Shim, 1.72mm | Shim, 1.72mm | — | $3.81 | Available to order | 1 |
| 29 | T1135009 Shim, 1.76mm | Shim, 1.76mm | — | $3.81 | Available to order | 1 |
| 29 | T1135010 Shim, 1.80mm | Shim, 1.80mm | — | $3.81 | Available to order | 1 |
| 29 | T1135011 Shim, 1.84mm | Shim, 1.84mm | — | $3.81 | Available to order | 1 |
| 29 | T1135012 Shim, 1.88mm | Shim, 1.88mm | — | $3.81 | Available to order | 1 |
| 29 | T1135013 Shim, 1.92mm | Shim, 1.92mm | — | $3.81 | Available to order | 1 |
| 29 | T1135014 Shim, 1.96mm | Shim, 1.96mm | — | $3.81 | Available to order | 1 |
| 29 | T1135015 Shim, 2.00mm | Shim, 2.00mm | — | $3.81 | Available to order | 1 |
| 29 | T1135016 Shim, 2.04mm | Shim, 2.04mm | — | $3.81 | Available to order | 1 |
| 29 | T1135017 Shim, 2.08mm | Shim, 2.08mm | — | $3.81 | Available to order | 1 |
| 29 | T1135018 Shim, 2.12mm | Shim, 2.12mm | — | $3.81 | Available to order | 1 |
| 29 | T1135019 Shim, 2.16mm | Shim, 2.16mm | — | $3.81 | Available to order | 1 |
| 29 | T1135020 Shim, 2.20mm | Shim, 2.20mm | — | $3.81 | Available to order | 1 |
| 29 | T1135021 Shim, 2.24mm | Shim, 2.24mm | — | $3.81 | Available to order | 1 |
| 29 | T1135022 Shim, 2.28mm | Shim, 2.28mm | — | $3.81 | Available to order | 1 |
| 29 | T1135023 Shim, 2.32mm | Shim, 2.32mm | — | $3.81 | Available to order | 1 |
| 29 | T1135024 Shim, 2.36mm | Shim, 2.36mm | — | $3.81 | Available to order | 1 |
| 29 | T1135025 Shim, 2.40mm | Shim, 2.40mm | — | $3.81 | Available to order | 1 |
| 29 | T1135026 Shim, 2.44mm | Shim, 2.44mm | — | $3.81 | Available to order | 1 |
| 29 | T1135027 Shim, 2.48mm | Shim, 2.48mm | — | $3.81 | Available to order | 1 |
| 29 | T1135028 Shim, 2.52mm | Shim, 2.52mm | — | $3.81 | Available to order | 1 |
| 29 | T1135029 Shim, 2.56mm | Shim, 2.56mm | — | $5.32 | Available to order | 1 |
| 29 | T1135030 Shim, 2.60mm | Shim, 2.60mm | — | $5.32 | Available to order | 1 |
| 30 | T1131233 Finger Follower | Finger Follower | 4 | $70.62 | Out of Stock | Notify Me |
| 31 | T1130096 Shaft, Finger Follower | Shaft, Finger Follower | 2 | $26.65 | Available to order | 2 |
| 32 | T1155111 Bolt, M7 x 34, Dualdrive | Bolt, M7 x 34, Dualdrive | 1 | $14.63 | Available to order | 1 |
| 33 | T3600278 O Ring, ID 11 x 1.5 | O Ring, ID 11 x 1.5 | 1 | $1.10 | Available to order | 1 |
| 34 | T3601181 O Ring, ID 23 x 0.5 | O Ring, ID 23 x 0.5 | 2 | $1.78 | Available to order | 2 |
| 35 | T2082937 Washer, 6.4 x 11 x 1.6 | Washer, 6.4 x 11 x 1.6 | 1 | $1.28 | Available to order | 1 |
| 40 | T1150495 Gasket Kit, Top End | Gasket Kit, Top End | 1 | $57.94 | Available to order | 1 |
| 41 | T1130138 Intake Valve Spring Kit | Intake Valve Spring Kit | 1 | $82.36 | Available to order | 1 |
| 42 | T1130139 Exhaust Valve Spring Kit | Exhaust Valve Spring Kit | 1 | $63.27 | Available to order | 1 |
| 43 | T1130168 Intake Spring Kit | Intake Spring Kit | 1 | $27.86 | Available to order | 1 |
| 44 | T1130143 Valve Kit | Valve Kit | 1 | $578.83 | Available to order | 1 |
