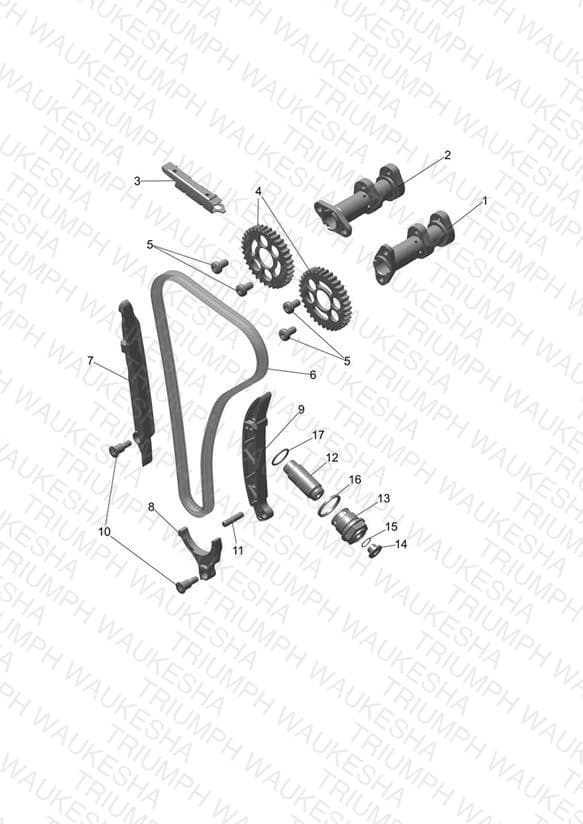

Camshaft & Camshaft Drive
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1140314 Camshaft, M/C, Exhaust | Camshaft, M/C, Exhaust | 1 | $337.10 | Available to order | 1 |
| 2 | T1140323 Camshaft, M/C, Intake | Camshaft, M/C, Intake | 1 | $353.55 | Available to order | 1 |
| 3 | T1140720 Guide, Top | Guide, Top | 1 | $23.42 | Available to order | 1 |
| 4 | T1140332 Sprocket, Camshaft, 34T | Sprocket, Camshaft, 34T | 2 | $71.04 | Available to order | 2 |
| 5 | T3053035 Screw, Pan, M7 x 12 | Screw, Pan, M7 x 12 | 4 | $1.93 | Available to order | 4 |
| 6 | T1140259 Cam Chain | Cam Chain | 1 | $120.70 | Available to order | 1 |
| 7 | T1140721 Blade, Guide | Blade, Guide | 1 | $18.21 | Available to order | 1 |
| 8 | T1140272 Guide, Lower | Guide, Lower | 1 | $27.84 | Available to order | 1 |
| 9 | T1140724 Tensioner Blade | Tensioner Blade | 1 | $24.88 | Available to order | 1 |
| 10 | T3201074 Bolt, TX, Shld, M6 x 22, Enc | Bolt, TX, Shld, M6 x 22, Enc | 2 | $4.32 | Available to order | 2 |
| 11 | T3000209 Solid Dowel, 6 x 25 | Solid Dowel, 6 x 25 | 1 | $4.45 | Available to order | 1 |
| 12 | T1145040 Hydraulic Cam Chain Tensioner | Hydraulic Cam Chain Tensioner | 1 | $86.28 | Available to order | 1 |
| 13 | T1140262 Bolt, Tensioner, M24 x 1.5 | Bolt, Tensioner, M24 x 1.5 | 1 | $16.43 | Available to order | 1 |
| 14 | T3450198 Plug, M10 x 6 | Plug, M10 x 6 | 1 | $7.11 | Available to order | 1 |
| 15 | T3600249 O Ring, ID10 x 1 | O Ring, ID10 x 1 | 1 | $0.87 | Available to order | 1 |
| 16 | T3350319 Washer, CU, 24 x 28 x 2.4 | Washer, CU, 24 x 28 x 2.4 | 1 | $6.05 | Available to order | 1 |
| 17 | T3600172 O Ring | O Ring | 1 | $3.62 | Available to order | 1 |
