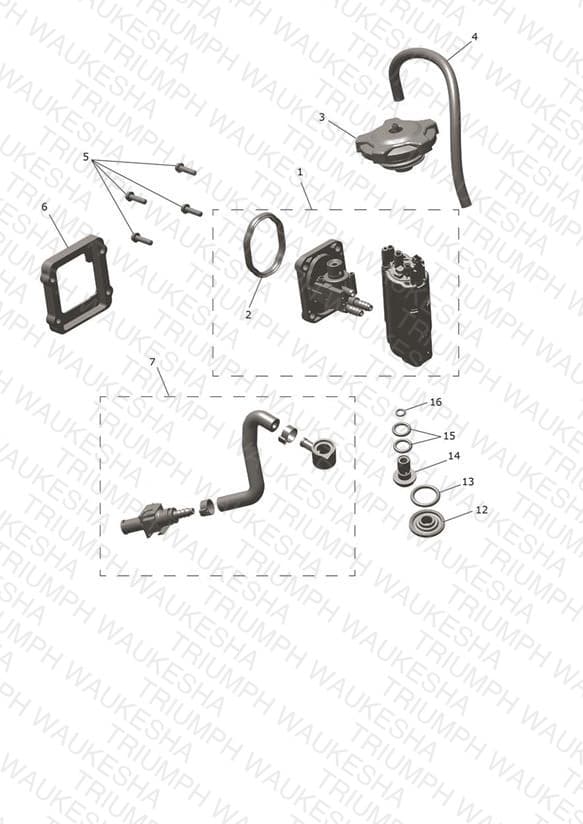

Fuel Pump
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2408872 Fuel Pump Assy, Short | Fuel Pump Assy, Short | 1 | $519.97 | Available to order | 1 |
| 2 | T2402955 Gasket, Fuel Pump | Gasket, Fuel Pump | 1 | $47.95 | Available to order | 1 |
| 3 | T2409044 Fuel Filler Cap Assembly | Fuel Filler Cap Assembly | 1 | $50.04 | Available to order | 1 |
| 4 | T2406623 Hose, Fuel Cap | Hose, Fuel Cap | 1 | $11.63 | Available to order | 1 |
| 5 | T3200399 Bolt, TX, M5 x 20, Slv | Bolt, TX, M5 x 20, Slv | 4 | $2.84 | Available to order | 4 |
| 6 | T2409971 Location Plate, Fuel Pump | Location Plate, Fuel Pump | 1 | $19.41 | Available to order | 1 |
| 7 | T2406040 Hose Assy, Fuel Feed, MX | Hose Assy, Fuel Feed, MX | 1 | $60.65 | Available to order | 1 |
| 12 | T2406630 Drain Plug, Fuel Tank | Drain Plug, Fuel Tank | 1 | $12.42 | Available to order | 1 |
| 13 | T3600605 O Ring, ID 20.5 x 3.53 | O Ring, ID 20.5 x 3.53 | 1 | $1.90 | Out of Stock | Notify Me |
| 14 | T3250031 Banjo Bolt, M8 | Banjo Bolt, M8 | 1 | $8.98 | Available to order | 1 |
| 15 | T3600602 O Ring, ID 12x3 | O Ring, ID 12x3 | 2 | $1.90 | Available to order | 2 |
| 16 | T3609945 O Ring, ID 6 x 2 | O Ring, ID 6 x 2 | 1 | $1.41 | Available to order | 1 |
| 17 | T2408433 Gasket Set, Fuel Pump | Gasket Set, Fuel Pump Comprises Items 2, 15 & 16 | 1 | $63.91 | Available to order | 1 |
| 18 | T2408434 Banjo Bolt Assy, Fuel Pump | Banjo Bolt Assy, Fuel Pump Comprises Items 14, 15 & 16 | 1 | $20.87 | Available to order | 1 |
| 19 | T2408432 Filter Set, Fuel Pump | Filter Set, Fuel Pump Not Illustrated | 1 | $92.60 | Available to order | 1 |
