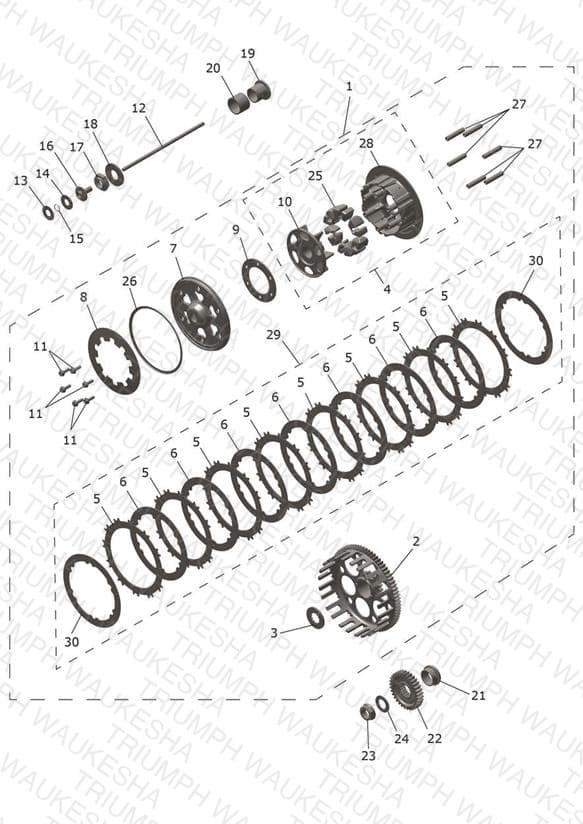

Clutch
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1170314 Clutch Assembly | Clutch Assembly | 1 | $896.19 | Available to order | 1 |
| 2 | T1171337 Clutch Basket | Clutch Basket | 1 | $167.40 | Obsolete | View Details |
| 3 | T1171327 Thrust Washer, Clutch | Thrust Washer, Clutch | 1 | $10.78 | Backorder — Restocking | 1 |
| 4 | T1170353 Clutch Centre Assembly | Clutch Centre Assembly | 1 | $781.09 | Available to order | 1 |
| 5 | T1170354 Friction Disc, Clutch | Friction Disc, Clutch | 8 | $17.25 | Backorder — Late September 2026 | 8 |
| 6 | T1170356 Clutch Plate | Clutch Plate | 7 | $13.33 | Available to order | 7 |
| 7 | T1170357 Clutch Pressure Plate | Clutch Pressure Plate | 1 | $79.92 | Available to order | 1 |
| 8 | T1171329 Spring, Belleville, Clutch | Spring, Belleville, Clutch | 1 | $12.94 | Available to order | 1 |
| 9 | T1170359 Fulcrum Plate, Clutch | Fulcrum Plate, Clutch | 1 | $8.88 | Available to order | 1 |
| 10 | T1171328 Clutch, Centre, Hub | Clutch, Centre, Hub | 1 | $411.10 | Available to order | 1 |
| 11 | T1170301 Bolt, M5 x 0.8 | Bolt, M5 x 0.8 | 6 | $7.81 | Available to order | 6 |
| 12 | T1170397 Push Rod, Clutch | Push Rod, Clutch | 1 | $22.34 | Available to order | 1 |
| 13 | T3550374 Washer, 12 x 26 x 1 | Washer, 12 x 26 x 1 | 1 | $2.67 | Available to order | 1 |
| 14 | T3800254 Bearing, Needle, AXK 12 x 26 x 2 | Bearing, Needle, AXK 12 x 26 x 2 | 1 | $17.77 | Available to order | 1 |
| 15 | T3500115 Snap Ring, Ext, 10.8ID x 1 | Snap Ring, Ext, 10.8ID x 1 | 1 | $4.45 | Available to order | 1 |
| 16 | T1170433 Clutch Lifter Body | Clutch Lifter Body | 1 | $50.63 | Available to order | 1 |
| 17 | T1170492 Nut, M18 x 10.5 | Nut, M18 x 10.5 | 1 | $7.33 | Available to order | 1 |
| 18 | T1170493 Washer, 41 x 18.2 x 3 | Washer, 41 x 18.2 x 3 | 1 | $2.22 | Available to order | 1 |
| 19 | T1170495 Top Hat, Clutch | Top Hat, Clutch | 1 | $21.56 | Available to order | 1 |
| 20 | T3800289 Needle Bearing, 26 x 30 x 22 | Needle Bearing, 26 x 30 x 22 | 2 | $11.55 | Available to order | 2 |
| 21 | T1170347 Spacer, Primary Gear | Spacer, Primary Gear | 1 | $14.36 | Available to order | 1 |
| 22 | T1170197 Gear, Primary, Crank | Gear, Primary, Crank | 1 | $142.70 | Available to order | 1 |
| 23 | T3350229 Nut, M10, LH x 1.5, Enc | Nut, M10, LH x 1.5, Enc | 1 | $14.97 | Available to order | 1 |
| 24 | T3350240 Washer, Crank, Primary Gear | Washer, Crank, Primary Gear | 1 | $4.98 | Available to order | 1 |
| 25 | T1170366 Clutch, Damper | Clutch, Damper | 6 | $10.34 | Available to order | 6 |
| 26 | T1170362 Spring, Seat | Spring, Seat | 1 | $22.21 | Available to order | 1 |
| 27 | T1170363 Pin | Pin | 6 | $4.45 | Available to order | 6 |
| 28 | T1171326 Clutch Centre, Housing | Clutch Centre, Housing | 1 | $38.07 | Available to order | 1 |
| 29 | T1170383 Disc Set, clutch | Disc Set, clutch Includes items 5, 6 and 30 | 1 | $258.64 | Available to order | 1 |
| 30 | T1170355 Clutch Plate | Clutch Plate | 2 | $15.11 | Available to order | 2 |
